- Loosen stop lamp switch and ASCD cancel switch (or brake switch) by rotating it counterclockwise by 45°.

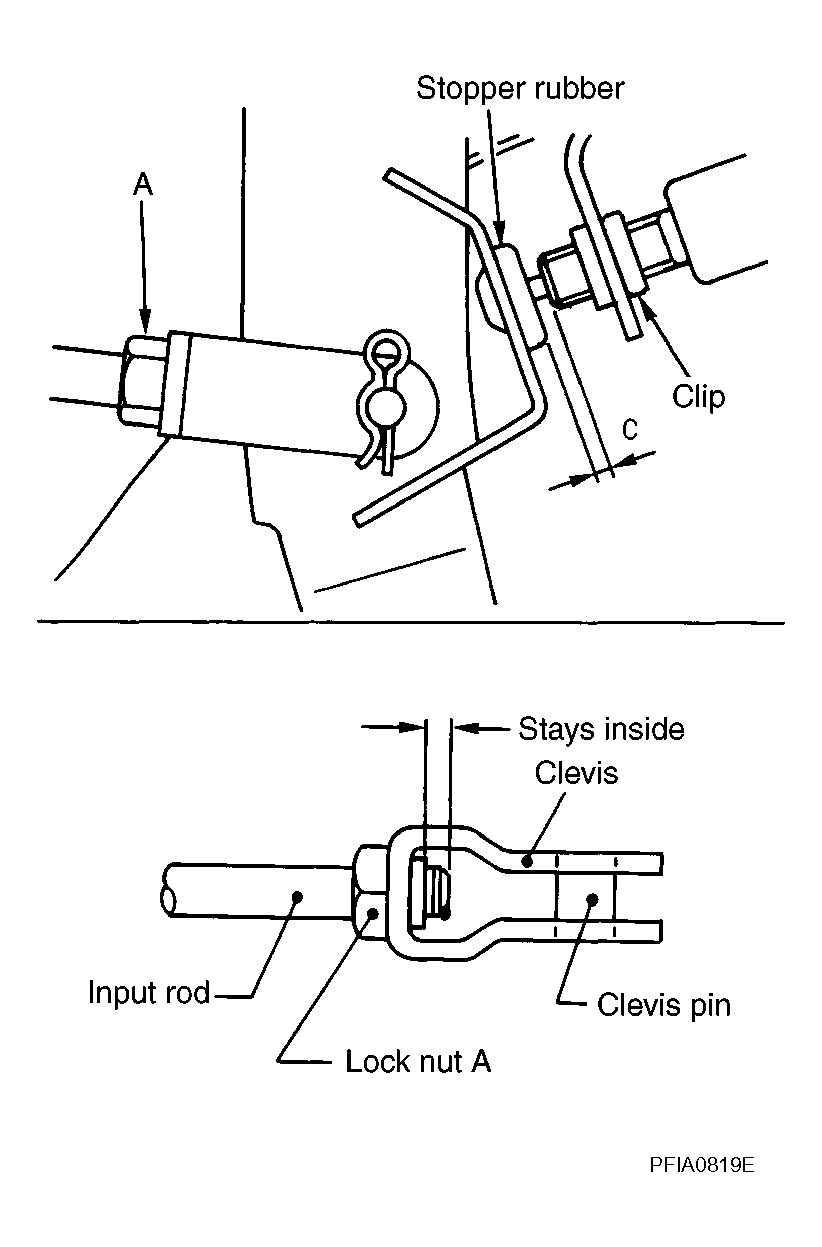

- Loosen lock nut "A" on input rod, then rotate input rod to set pedal to the specified height, and tighten lock nut "A". Refer to
"COMPONENTS ".
CAUTION:
Make sure the threaded end of input rod stays inside clevis.
- With pedal pulled and held by hand, press stop lamp switch and ASCD cancel switch (or brake switch) until its threaded end contacts stopper rubber.
- With the threaded end of stop lamp switch and ASCD cancel switch (or brake switch) contacting stopper rubber, rotate switch clockwise by 45° to secure.
CAUTION:
Make sure that the clearance "C" between stopper rubber and threaded end of stop lamp switch and ASCD cancel switch (or brake switch) is within the standard.
- Check pedal play.
CAUTION:
Make sure that stop lamps go off when pedal is released.
- Start engine to check brake pedal depressed height.
Courtesy of NISSAN MOTOR CO., U.S.A.
