Brake Booster: Components

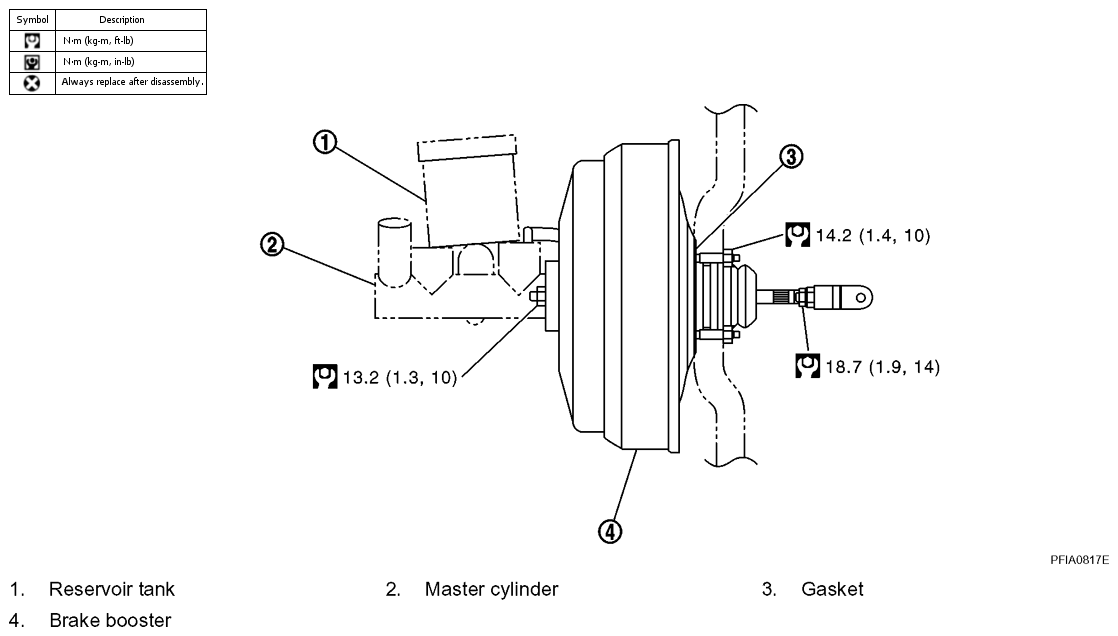

Fig 1: Replacement Components Brake Booster With Torque Specifications

G04076634

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS ", for the symbols in the figure.
