Wiring Diagram - T/WARN -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

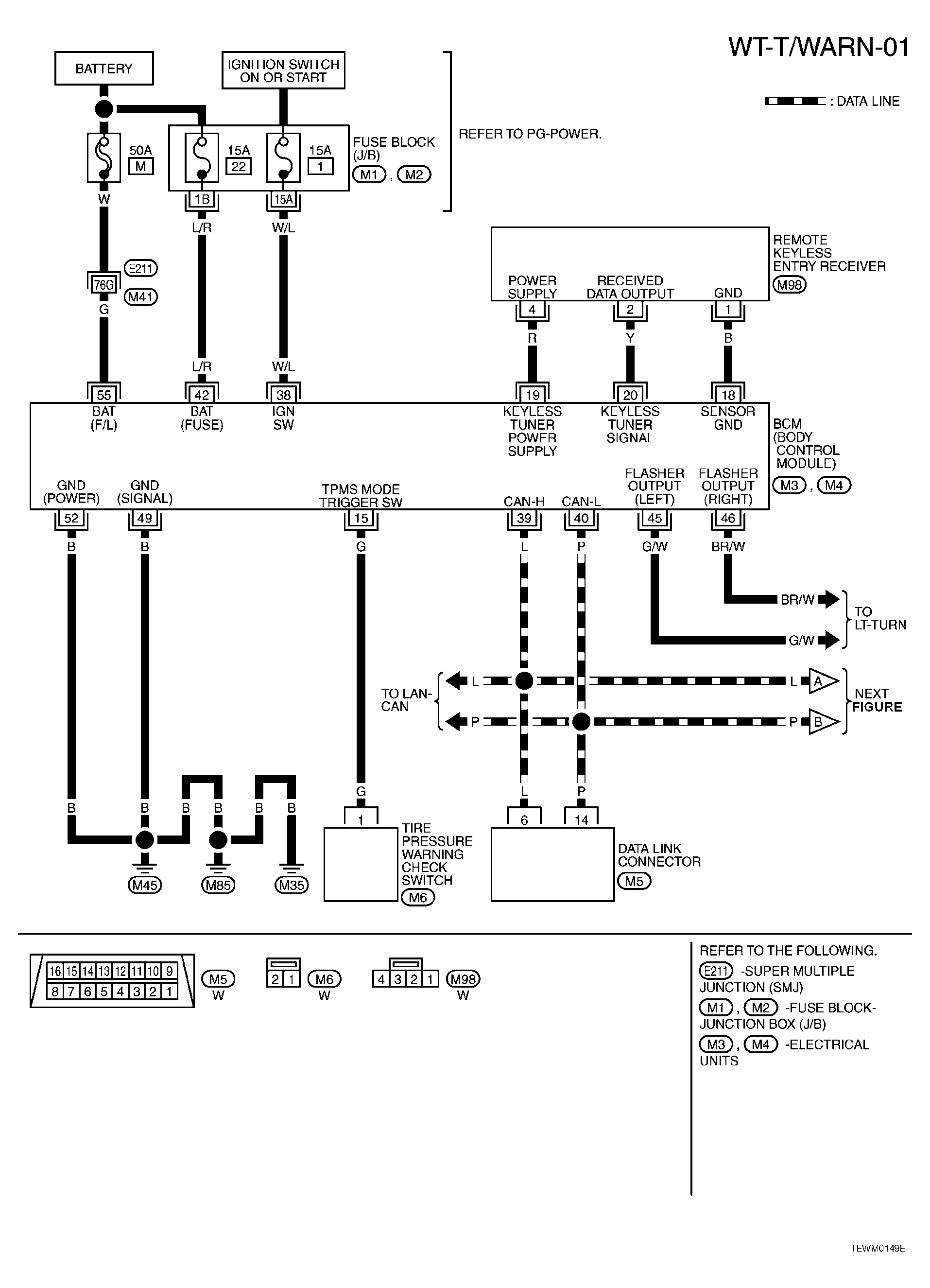

Fig 1: WT-T/WARN-01 - Wiring Diagram
G04076571Courtesy of NISSAN MOTOR CO., U.S.A.

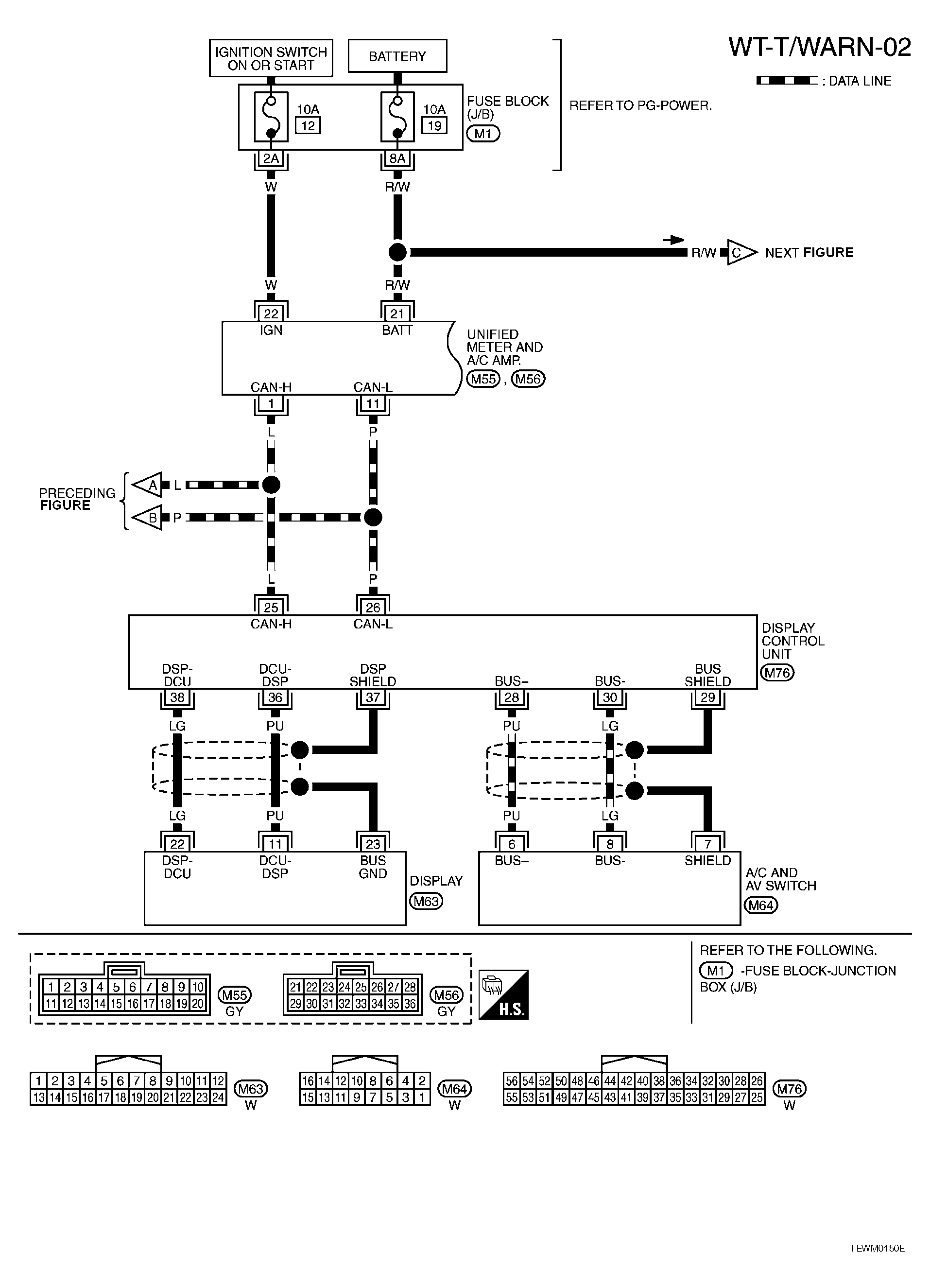

Fig 2: WT-T/WARN-02 - Wiring Diagram
G04076572Courtesy of NISSAN MOTOR CO., U.S.A.

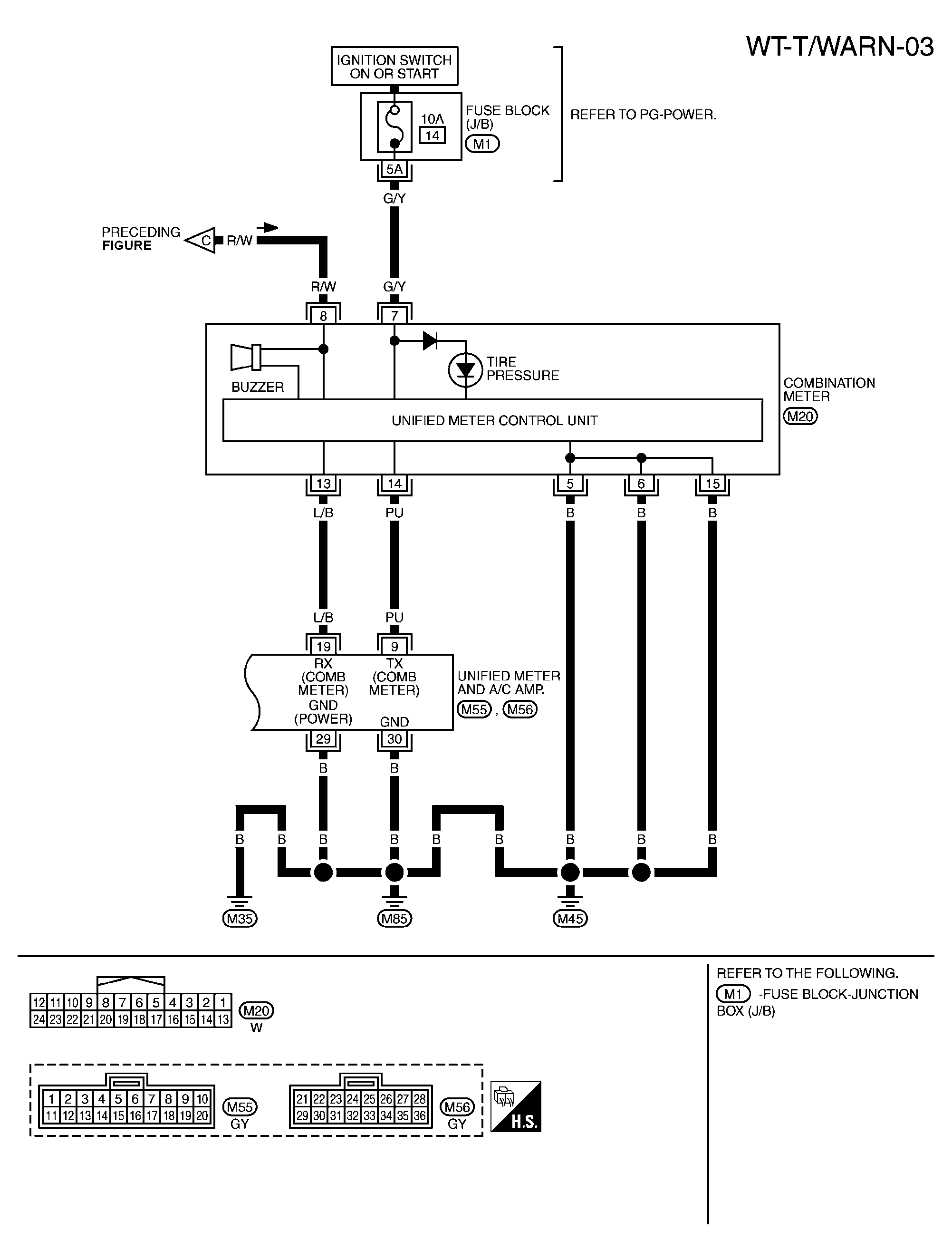

Fig 3: WT-T/WARN-03 - Wiring Diagram
G04076573Courtesy of NISSAN MOTOR CO., U.S.A.
