Removal Of Remote Control Lever

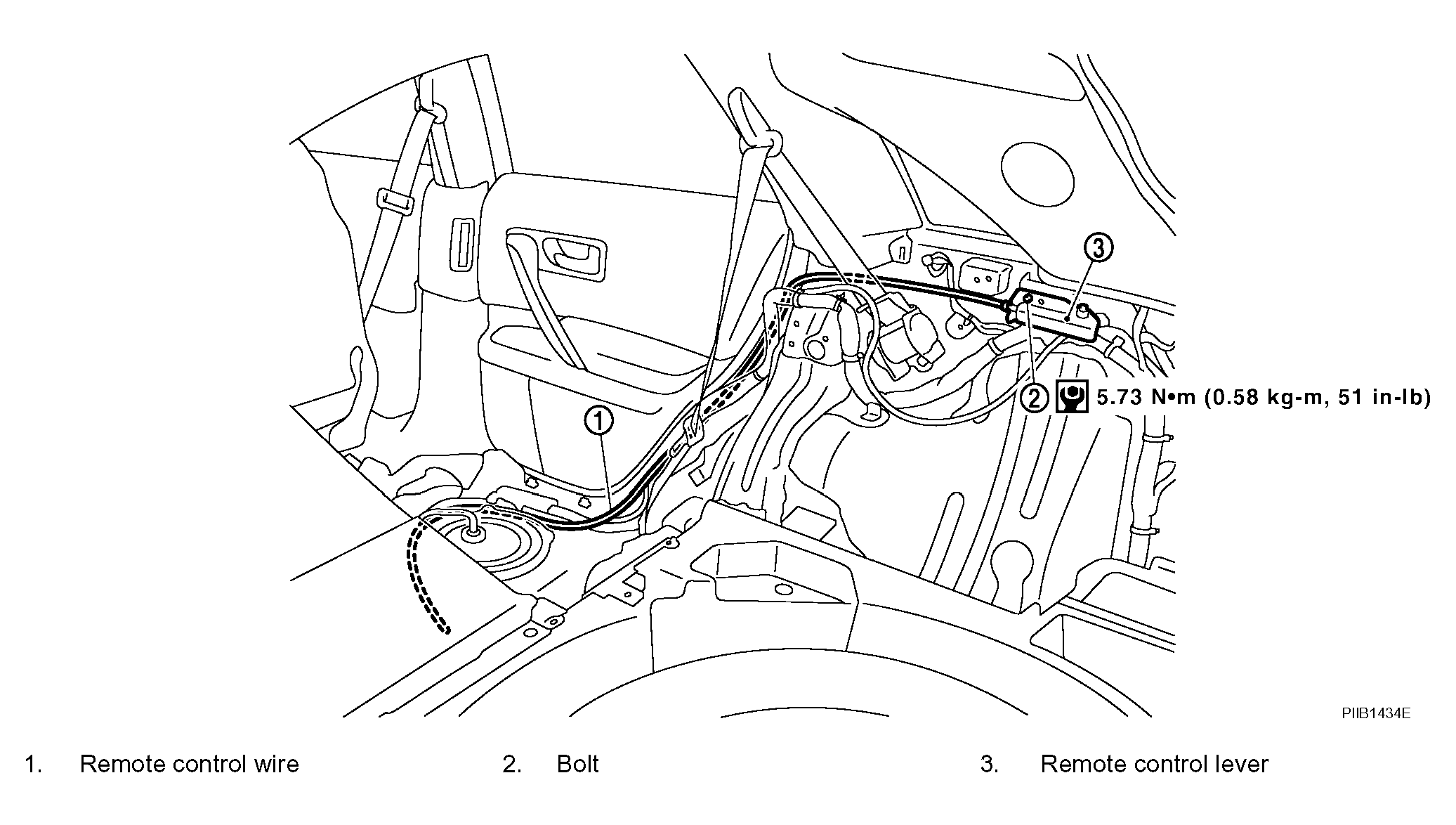

Fig 1: Remote Control Lever With Torque Specifications
G04077789Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the rear seat. Refer to "REMOVAL ".
  2. Remove the luggage side finisher assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the remote control lever.
  4. Remove the remote control lever mounting bolt.
  5. Remove the remote control lever assembly.
