Removal and Installation: Removal

Pull the lock at the front bottom of the seat cushion forward (1 for each side), and pull the seat cushion upward to release the wire from the plastic hook, then pull the seat cushion forward to remove.

Fig 1: Pulling Lock Front Bottom Of Seat Cushion Forward
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the seatback mounting nuts.

Fig 2: Seatback Mounting Nuts With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the seatback mounting bolt and nut.
Remove the remote control wire.

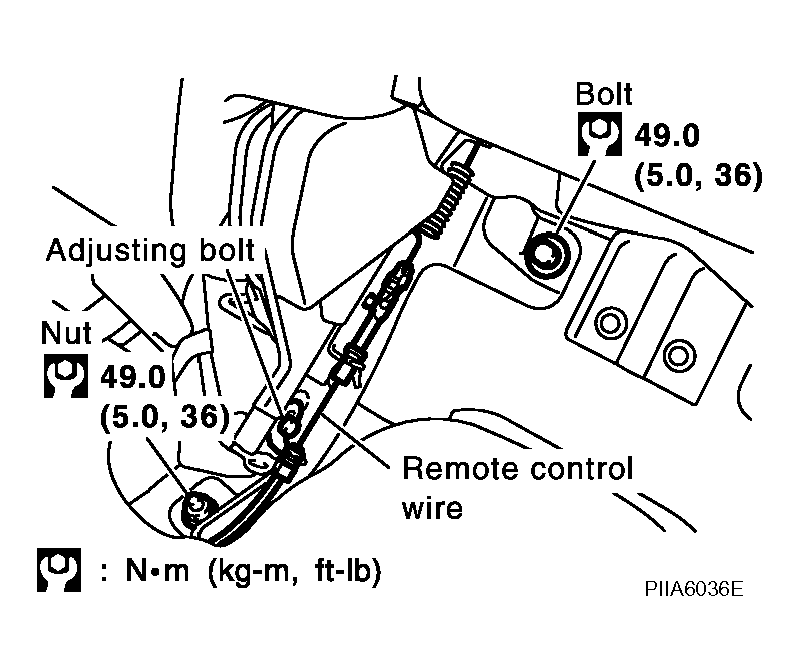

Fig 3: Remote Control Wire With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
