Check Power Supply And Ground Circuit
- CHECK FUSES
Check for blown fuses.
POWER SOURCE UNIT CHARTUnit Power source Fuse and fusible link No. BCM Battery M 22 Ignition switch ON or START position 1 Ignition switch ACC or ON position 6 Rear combination lamp control unit Battery 20 Refer to "WIRING DIAGRAM - TURN - ".
OK or NG
OK : GO TO 2.
NG : If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to "POWER SUPPLY ROUTING CIRCUIT ".
- CHECK POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect BCM connector.

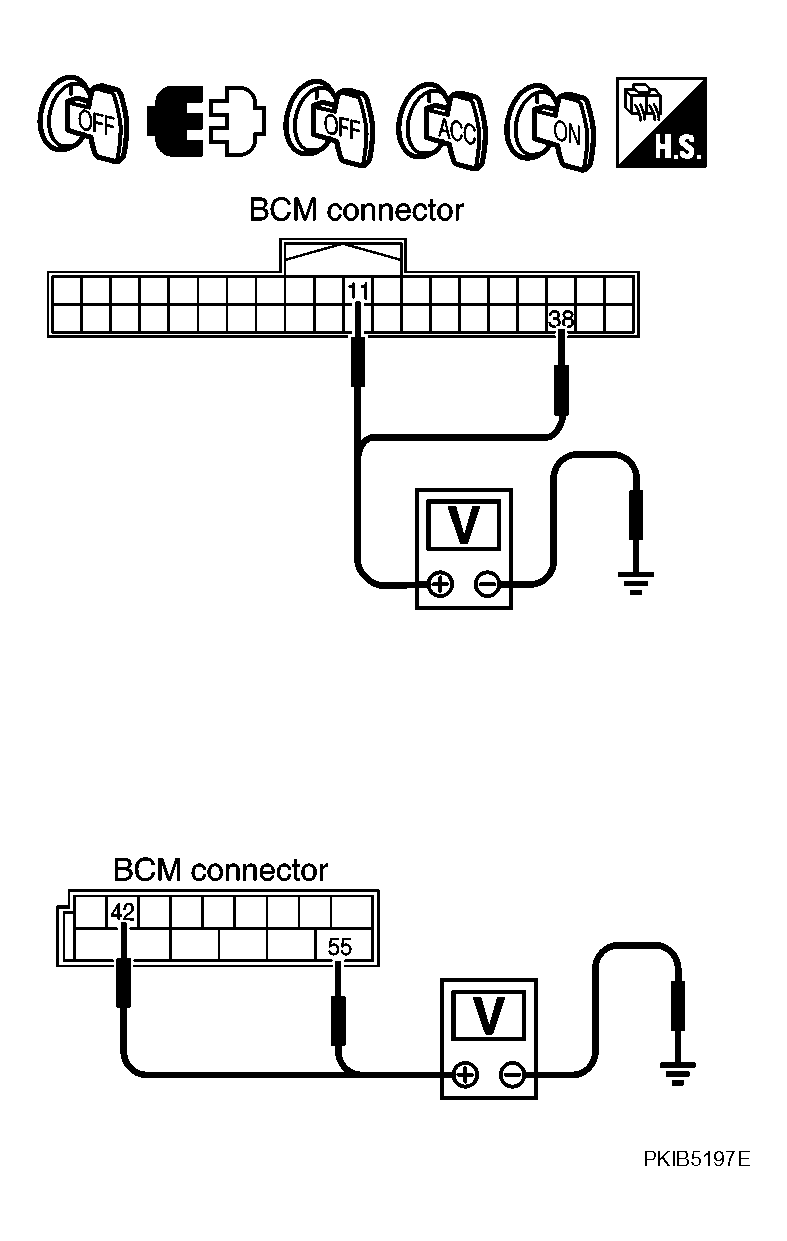

- Check voltage between BCM harness connector and ground.POWER SOURCE UNIT CHART
(+) (-) Ignition switch position BCM connector Terminal OFF ACC ON M3 11 Ground Approx. 0 V Battery voltage Battery voltage 38 Approx. 0 V Approx. 0 V Battery voltage M4 42 Battery voltage Battery voltage Battery voltage 55 Battery voltage Battery voltage Battery voltage
OK or NG
OK : GO TO 3.
NG : Repair harness or connector.
- CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
CONNECTOR TERMINAL CHARTBCM connector Terminal Ground Continuity M4 49 Yes 52 OK or NG
OK : INSPECTION END
NG : Repair harness or connector.
