Wiring Diagram - TURN -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

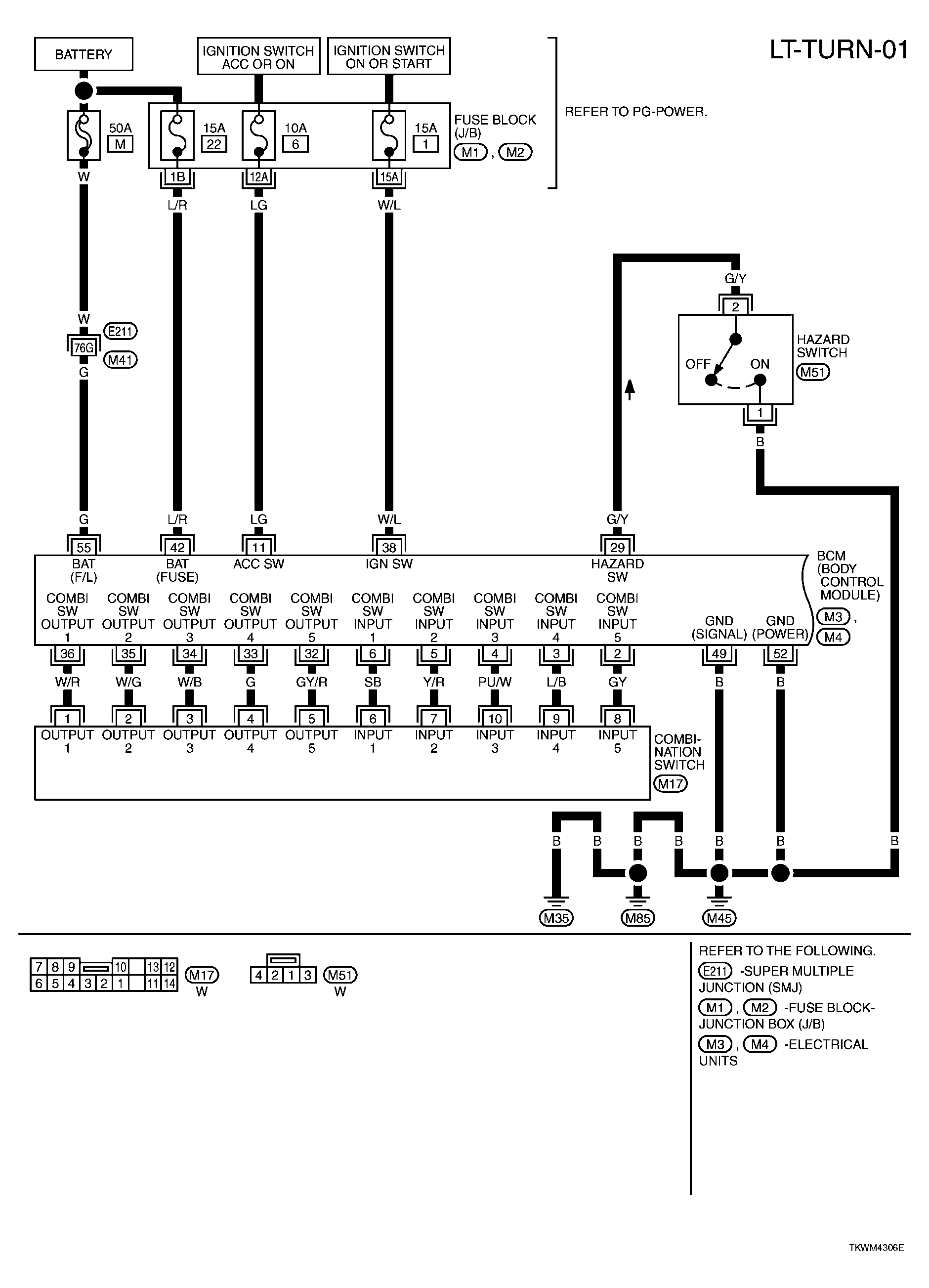

Fig 1: LT-TURN-01 - Wiring Diagram
G04078246Courtesy of NISSAN MOTOR CO., U.S.A.

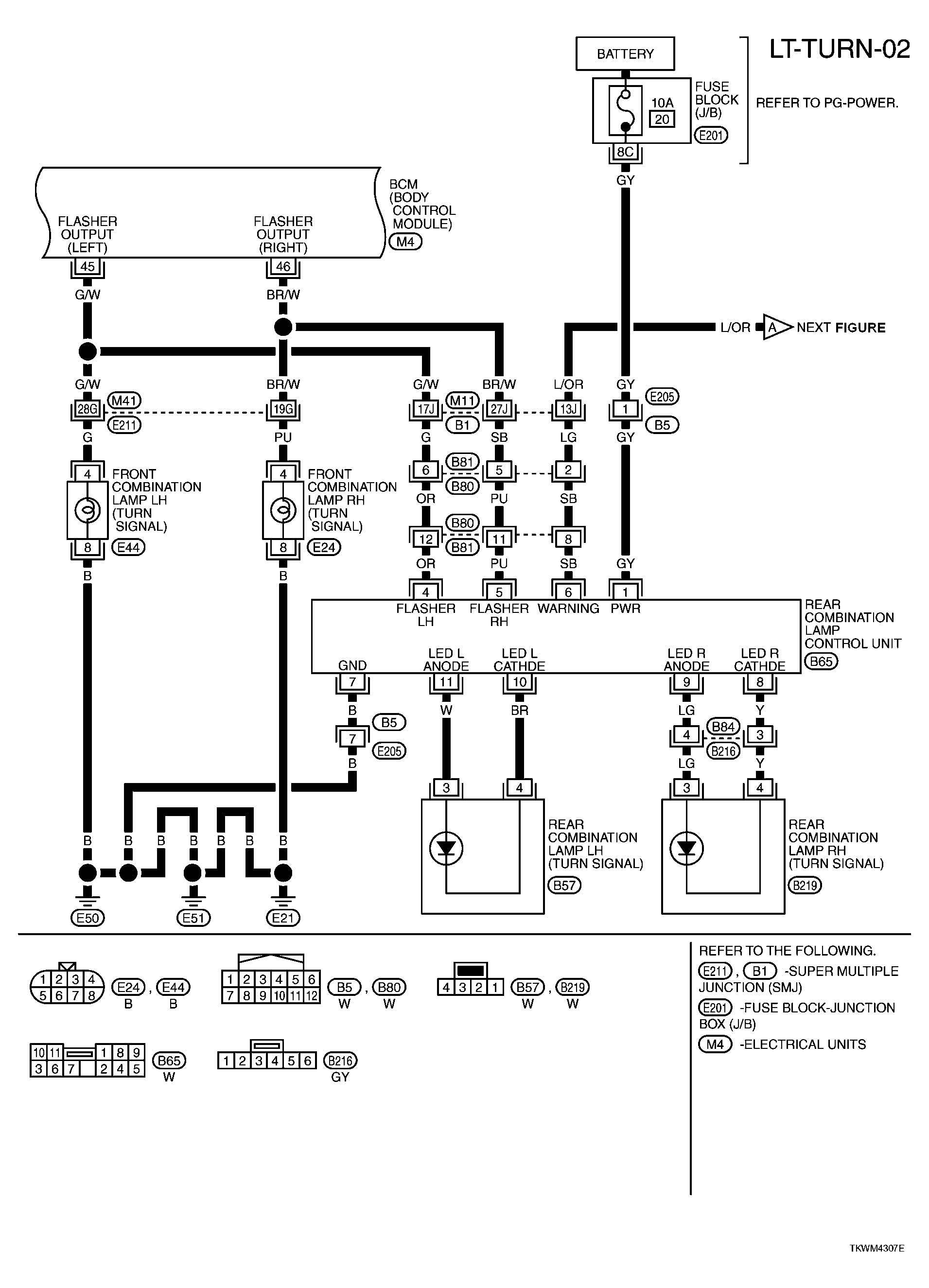

Fig 2: LT-TURN-02 - Wiring Diagram
G04078247Courtesy of NISSAN MOTOR CO., U.S.A.

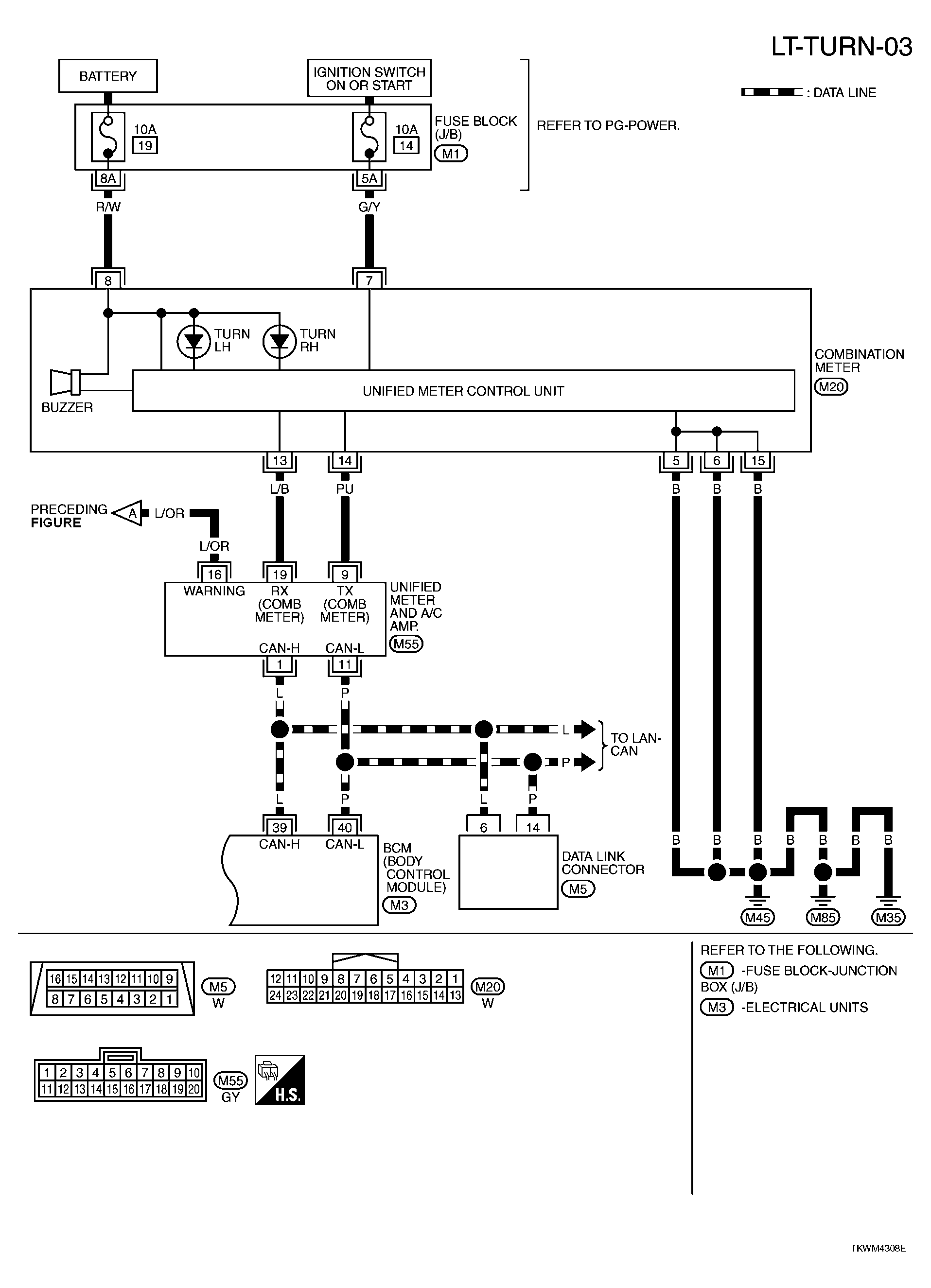

Fig 3: LT-TURN-03 - Wiring Diagram
G04078248Courtesy of NISSAN MOTOR CO., U.S.A.
