Check Power Supply And Ground Circuit
- CHECK FUSES
Check for blown fuses.
POWER SOURCE UNIT CHARTUnit Power source Fuse and fusible link No. BCM Battery M 22 Ignition switch ON or START position 1 Ignition switch ACC or ON position 6 IPDM E/R Battery 71 Rear combination lamp control unit Battery 20 Refer to "WIRING DIAGRAM - TAIL/L - ".
OK or NG
OK : GO TO 2.
NG : If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to "POWER SUPPLY ROUTING CIRCUIT ".
- CHECK POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect BCM connector.

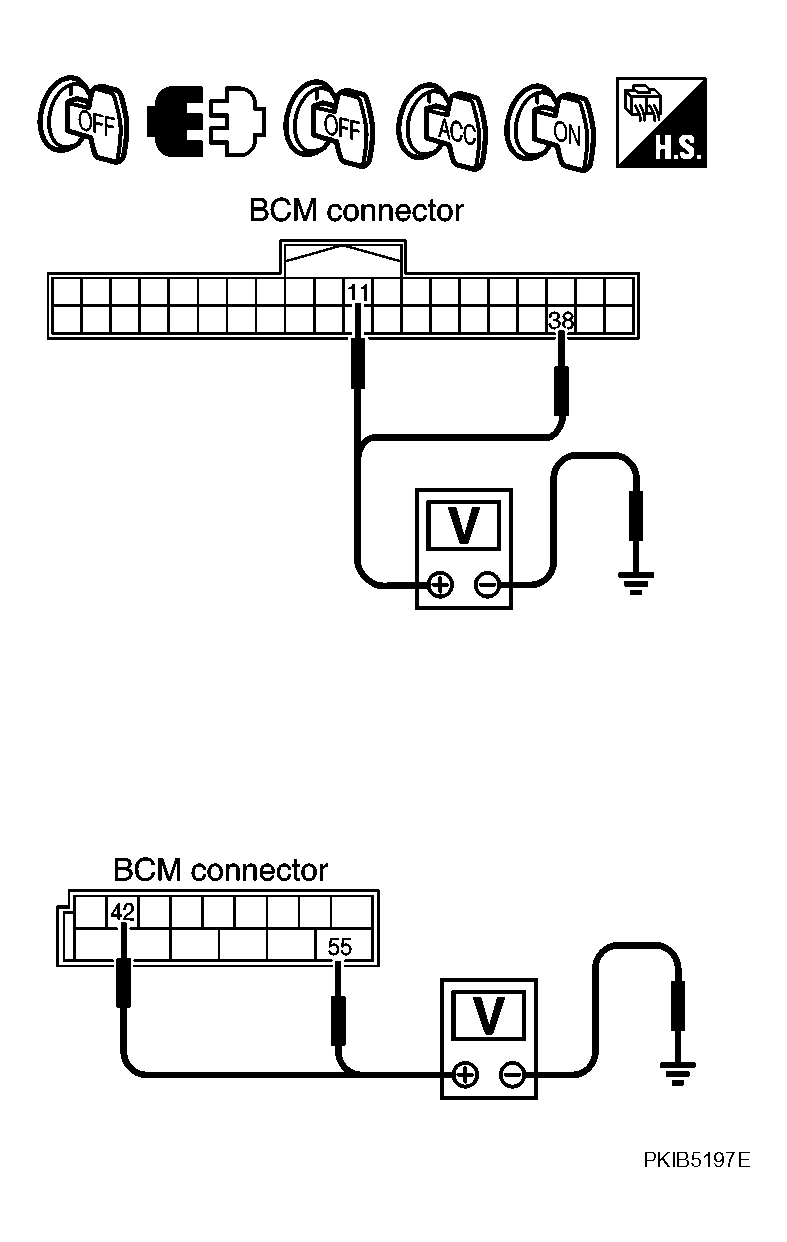

- Check voltage between BCM harness connector and ground.VOLTAGE SPECIFICATION
(+) (-) Ignition switch position BCM connector Terminal OFF ACC ON M3 11 Ground Approx. 0 V Battery voltage Battery voltage 38 Approx. 0 V Approx. 0 V Battery voltage M4 42 Battery voltage Battery voltage Battery voltage 55 Battery voltage Battery voltage Battery voltage
OK or NG
OK : GO TO 3.
NG : Repair harness or connector.
- CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
TERMINALS AND REFERENCE VALUES CHARTBCM connector Terminal Continuity M4 49 Ground Yes 52 Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK : INSPECTION END
NG : Repair harness or connector.
