Wiring Diagram - TAIL/L -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

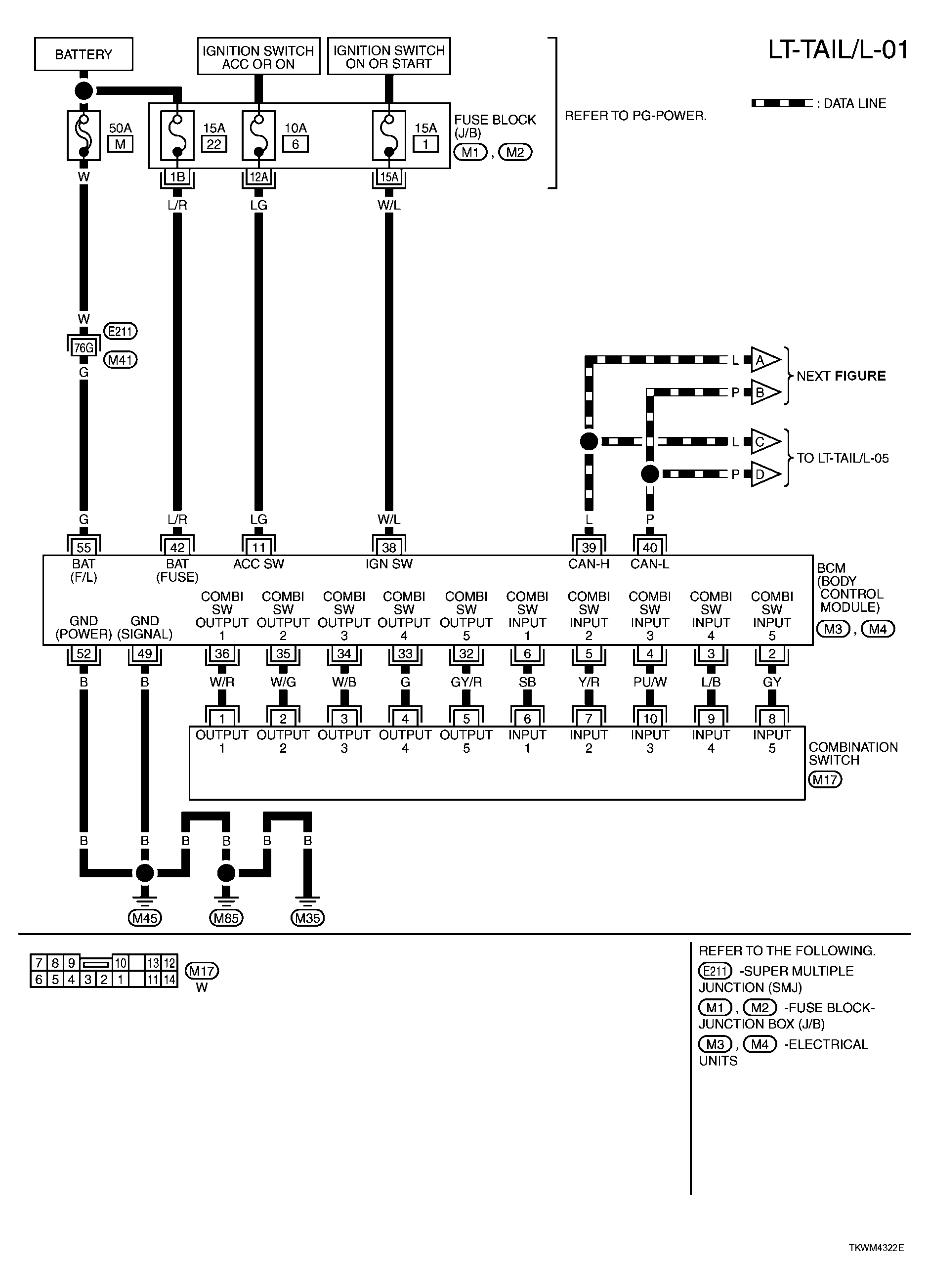

Fig 1: LT-TAIL/L-01 - Wiring Diagram
G04078322Courtesy of NISSAN MOTOR CO., U.S.A.

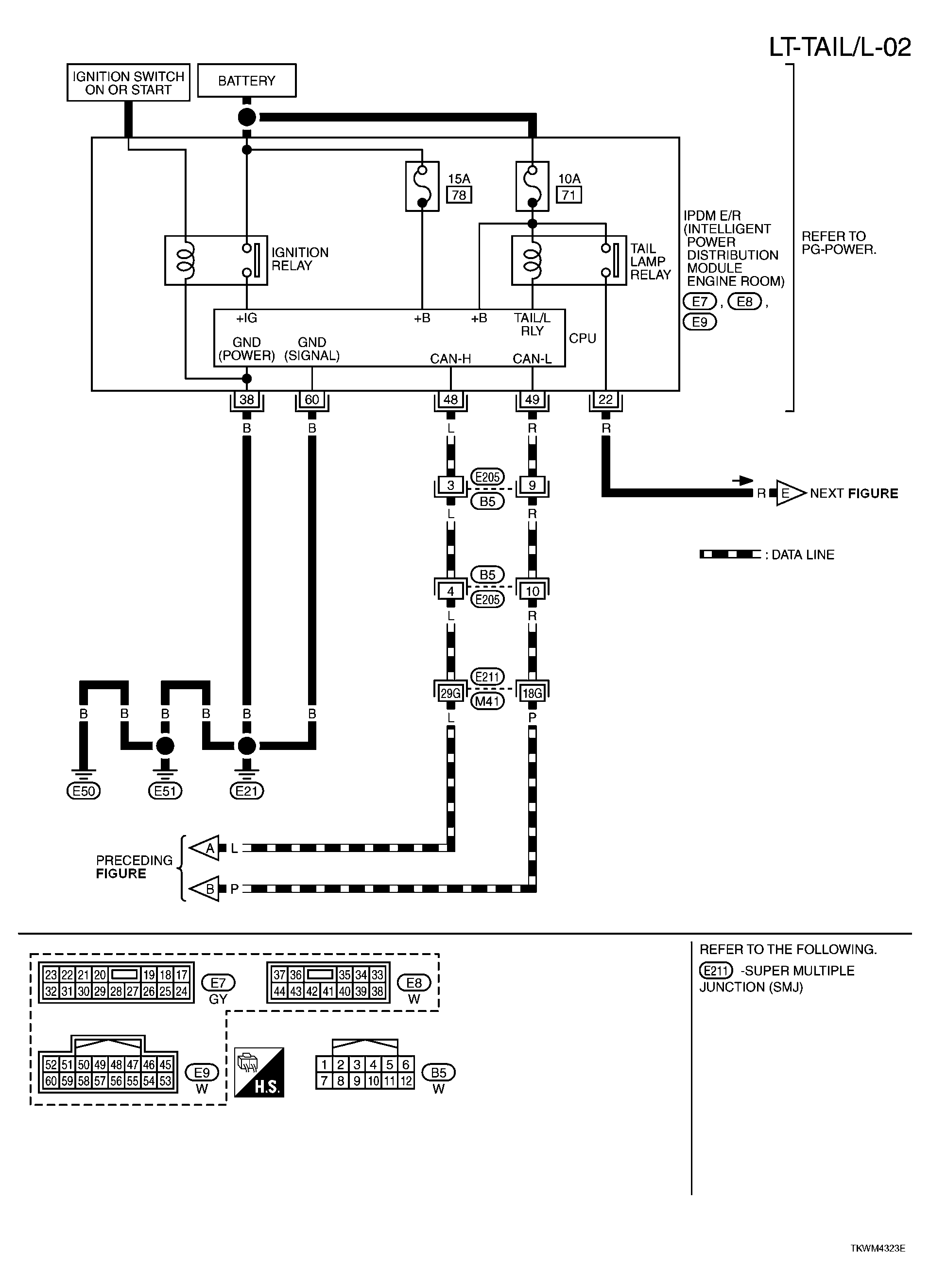

Fig 2: LT-TAIL/L-02 - Wiring Diagram
G04078323Courtesy of NISSAN MOTOR CO., U.S.A.

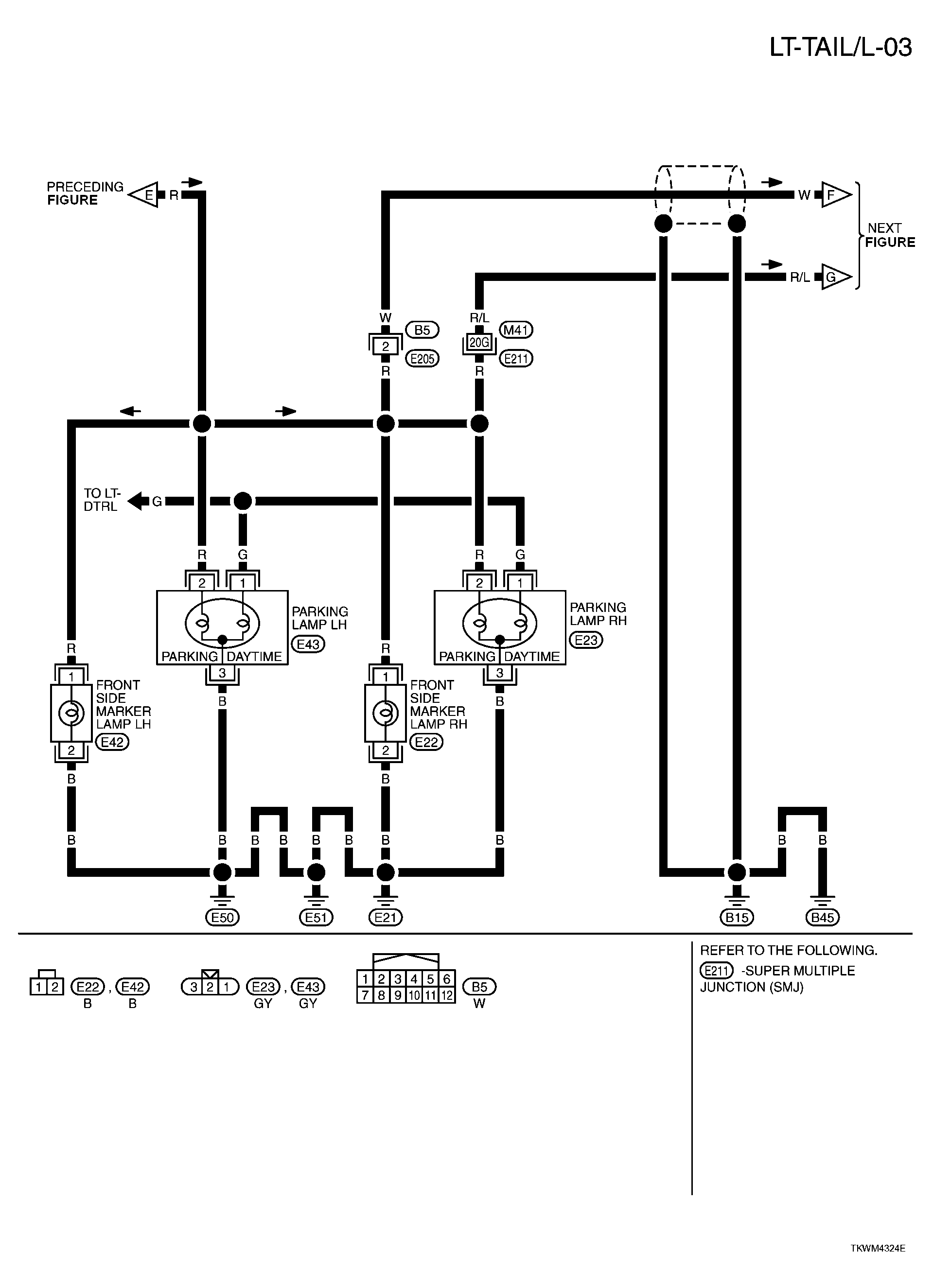

Fig 3: LT-TAIL/L-03 - Wiring Diagram
G04078324Courtesy of NISSAN MOTOR CO., U.S.A.

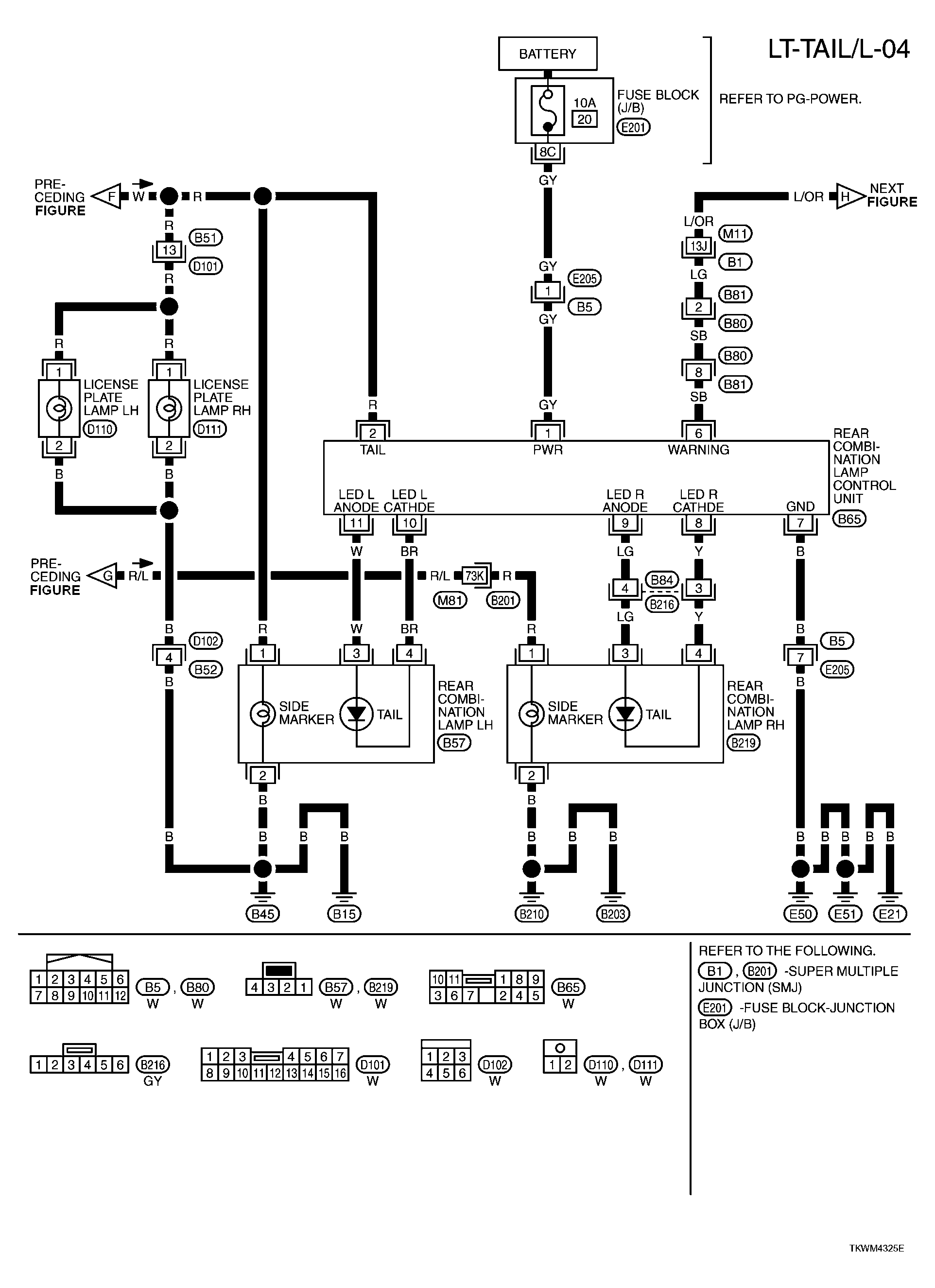

Fig 4: LT-TAIL/L-04 - Wiring Diagram
G04078325Courtesy of NISSAN MOTOR CO., U.S.A.

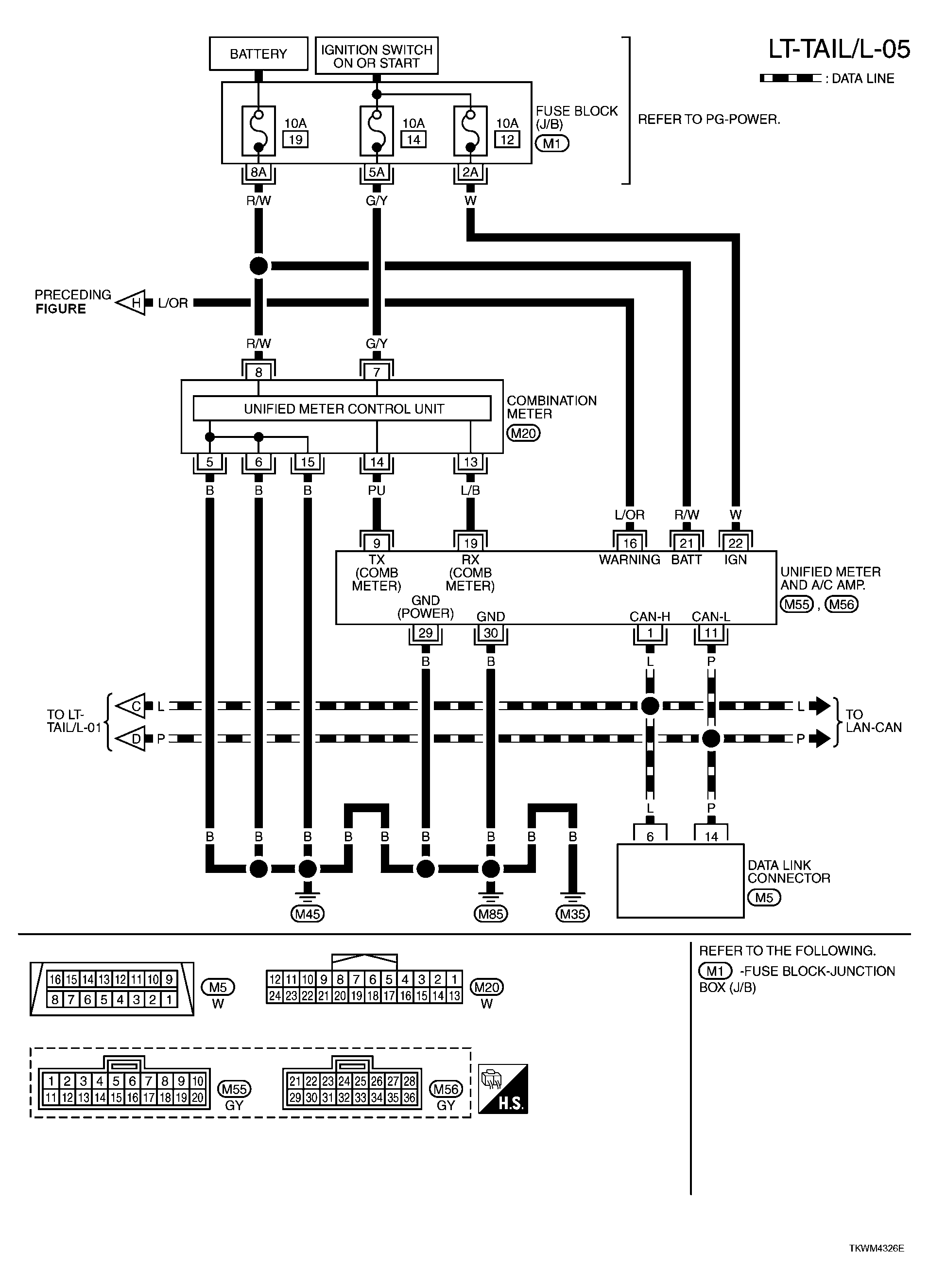

Fig 5: LT-TAIL/L-05 - Wiring Diagram
G04078326Courtesy of NISSAN MOTOR CO., U.S.A.
