License Plate Lamp

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove license plate lamp. Refer to REMOVAL  .
  2. Turn bulb socket counterclockwise and unlock it.
  3. Remove bulb from it's socket.
    1. License plate lamp: 12V - 5W

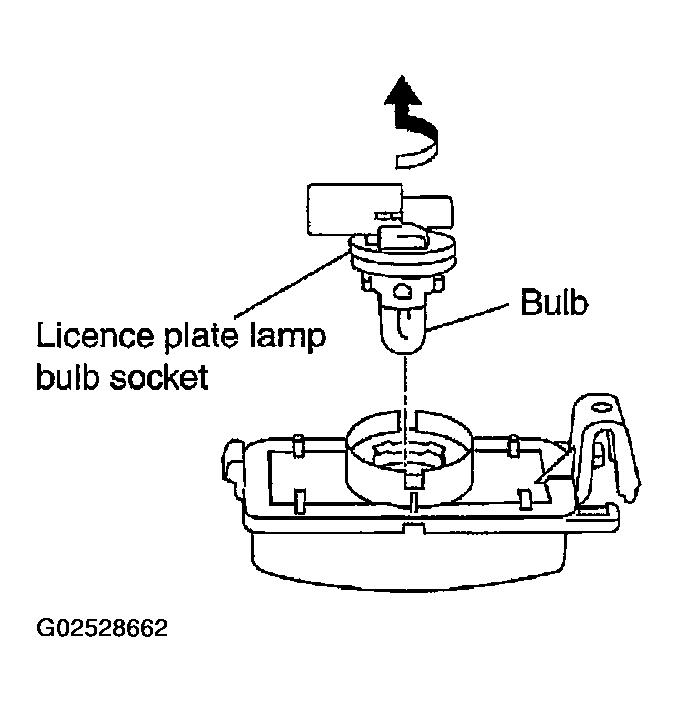

    Fig 1: Removing Licence Plate Lamp Bulb
    G02528662Courtesy of NISSAN MOTOR CO., U.S.A.
