License Plate Lamp: Removal

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. While pressing pawl on reverse side, push license plate towards you to remove.
  2. Disconnect the license plate lamp connector.

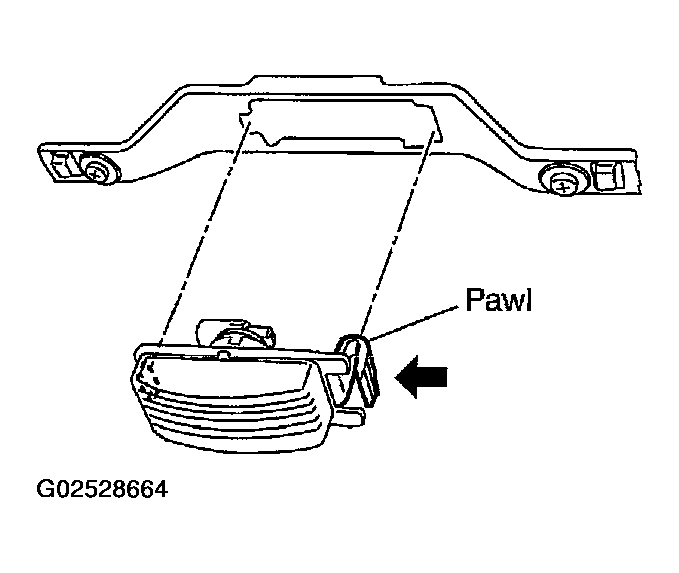

    Fig 1: Locating Pawl
    G02528664Courtesy of NISSAN MOTOR CO., U.S.A.
