Tire Rotation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the tires on each side from front to back as shown.
  2. Adjust the tire pressure to specification. Refer to "TIRE ".
  3. After the tire rotation, retighten the wheel nuts after the vehicle has been driven for 1,000 km (600 miles), and also after a wheel and tire have been installed such as after repairing a flat tire.

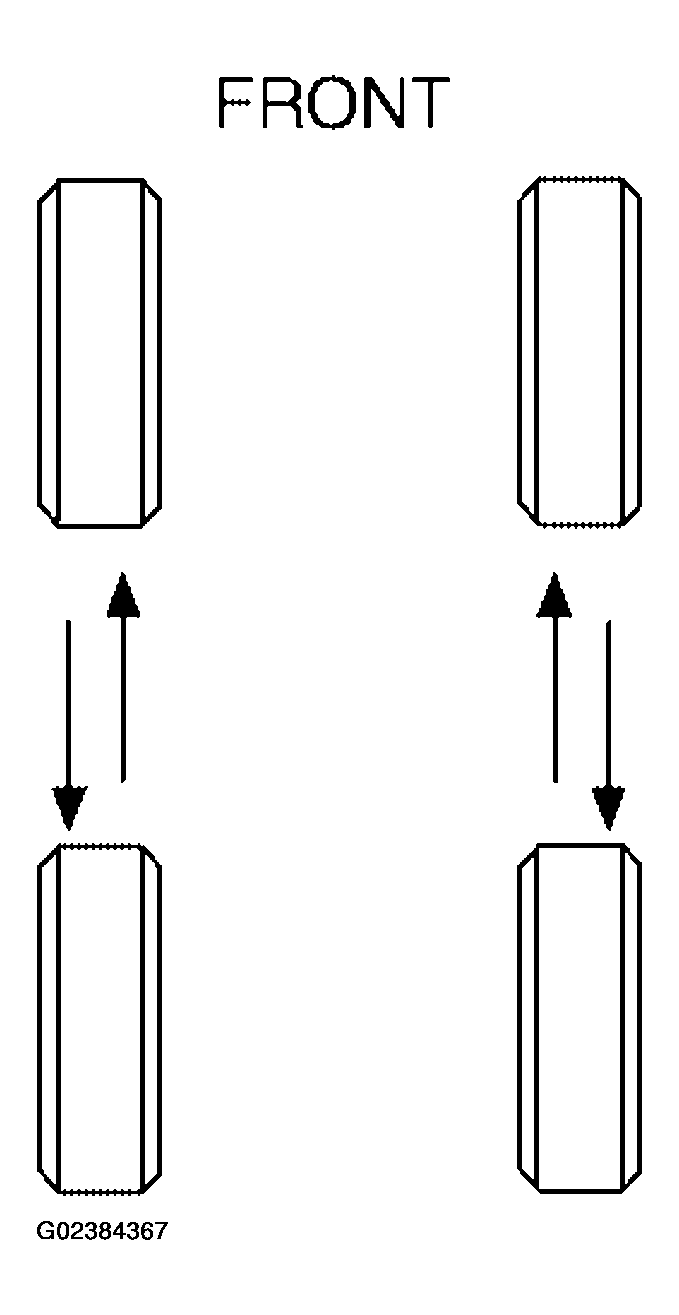

    Fig 1: Identifying Tire Rotation Pattern
    G02384367Courtesy of NISSAN MOTOR CO., U.S.A.
