Transmitter (Pressure Sensor): Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Place first side of tire onto rim.

Fig 1: Placing First Side Of Tire Onto Rim
Courtesy of NISSAN MOTOR CO., U.S.A.
Mount transmitter on rim and tighten nut.
1. Transmitter nut: 5.5 N.m (0.56 kg-m, 49 in-lb)
2. Tightening torque

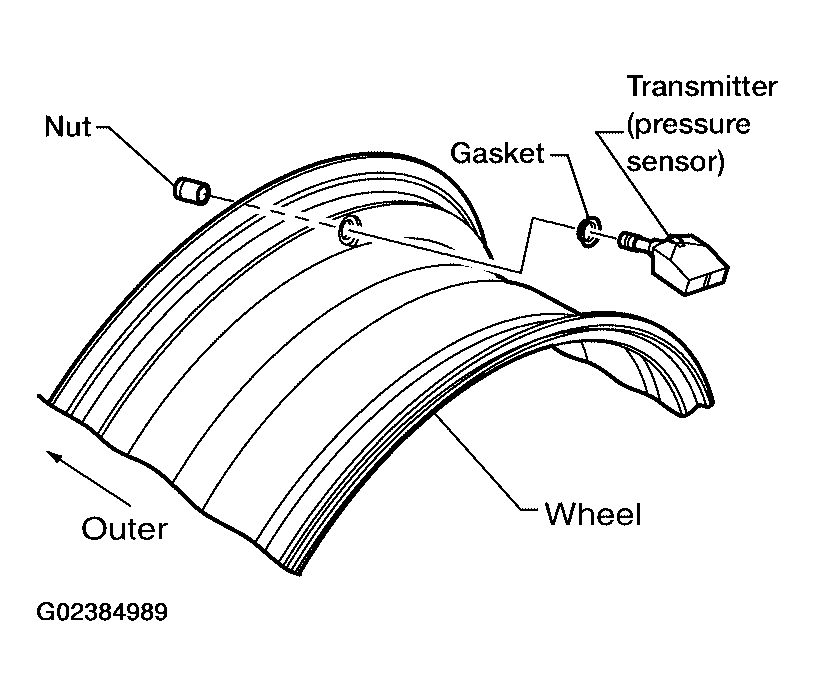

Fig 2: Installing Transmitter
Courtesy of NISSAN MOTOR CO., U.S.A.
Place wheel on turntable of tire machine. Ensure that transmitter is 270 degrees from mounting/dismounting head.
NOTE: Do not touch transmitter with mounting head.

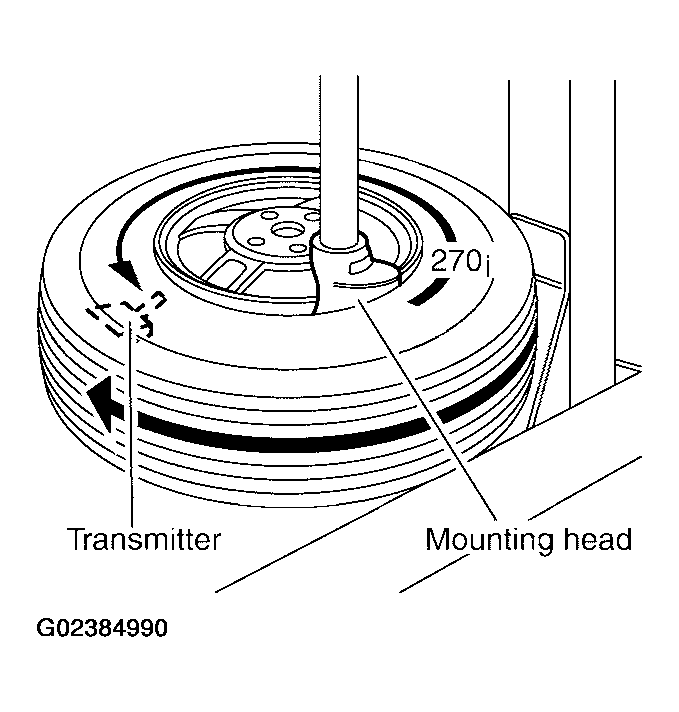

Fig 3: Placing Wheel On Turntable Of Tire Machine
Courtesy of NISSAN MOTOR CO., U.S.A.
Lubricate tire well, and install second side of tire as normal. Ensure that tire does not rotate relative to rim.
Inflate tire and balance the wheel and tire assembly. Refer to "WHEEL BALANCE ADJUSTMENT ".
Install Wheel and tire assembly in appropriate wheel position on vehicle.
Adjust neutral position of steering angle sensor. Refer to "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL P ".
