Diagnostic Trouble Code (DTC) Chart
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

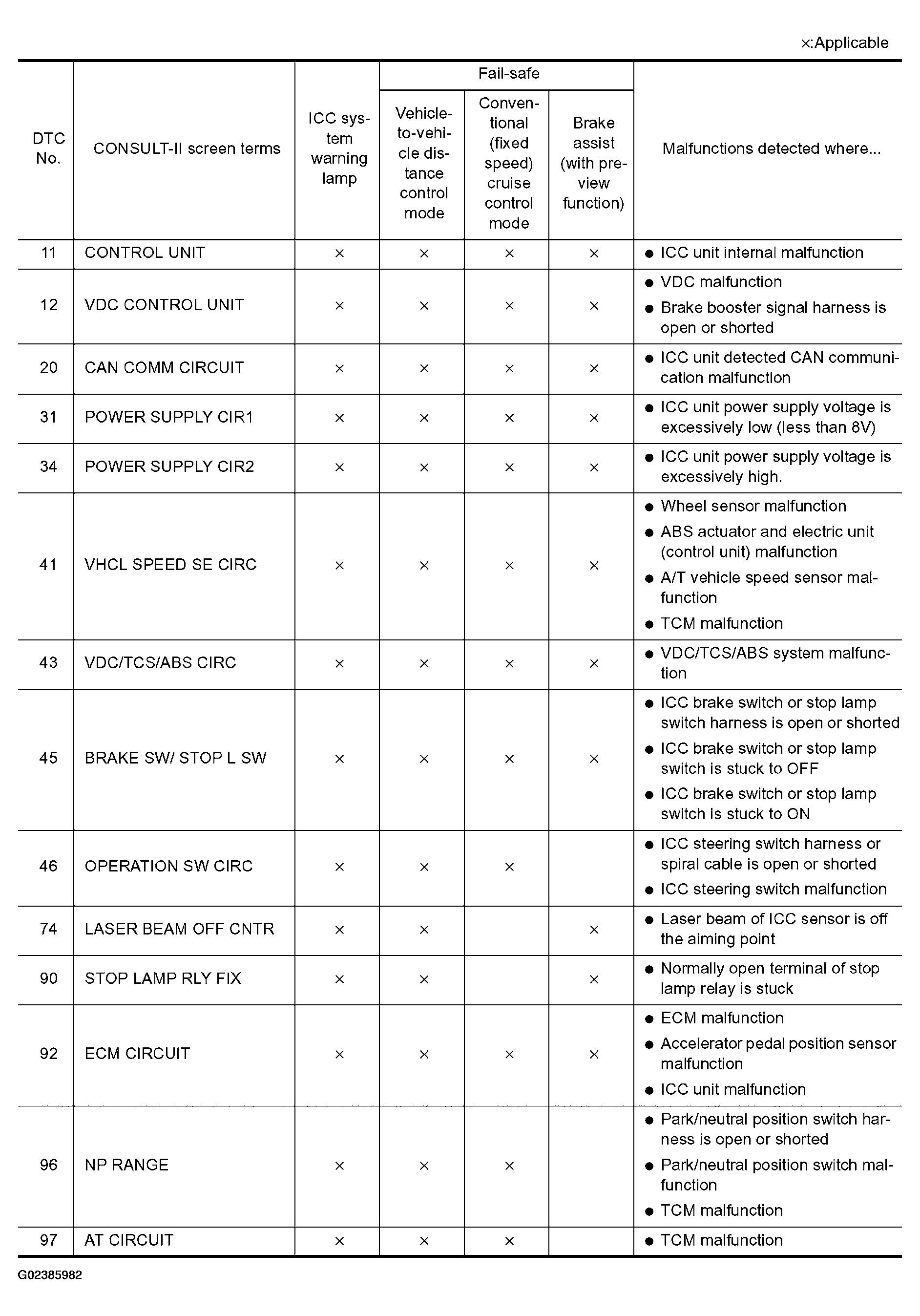

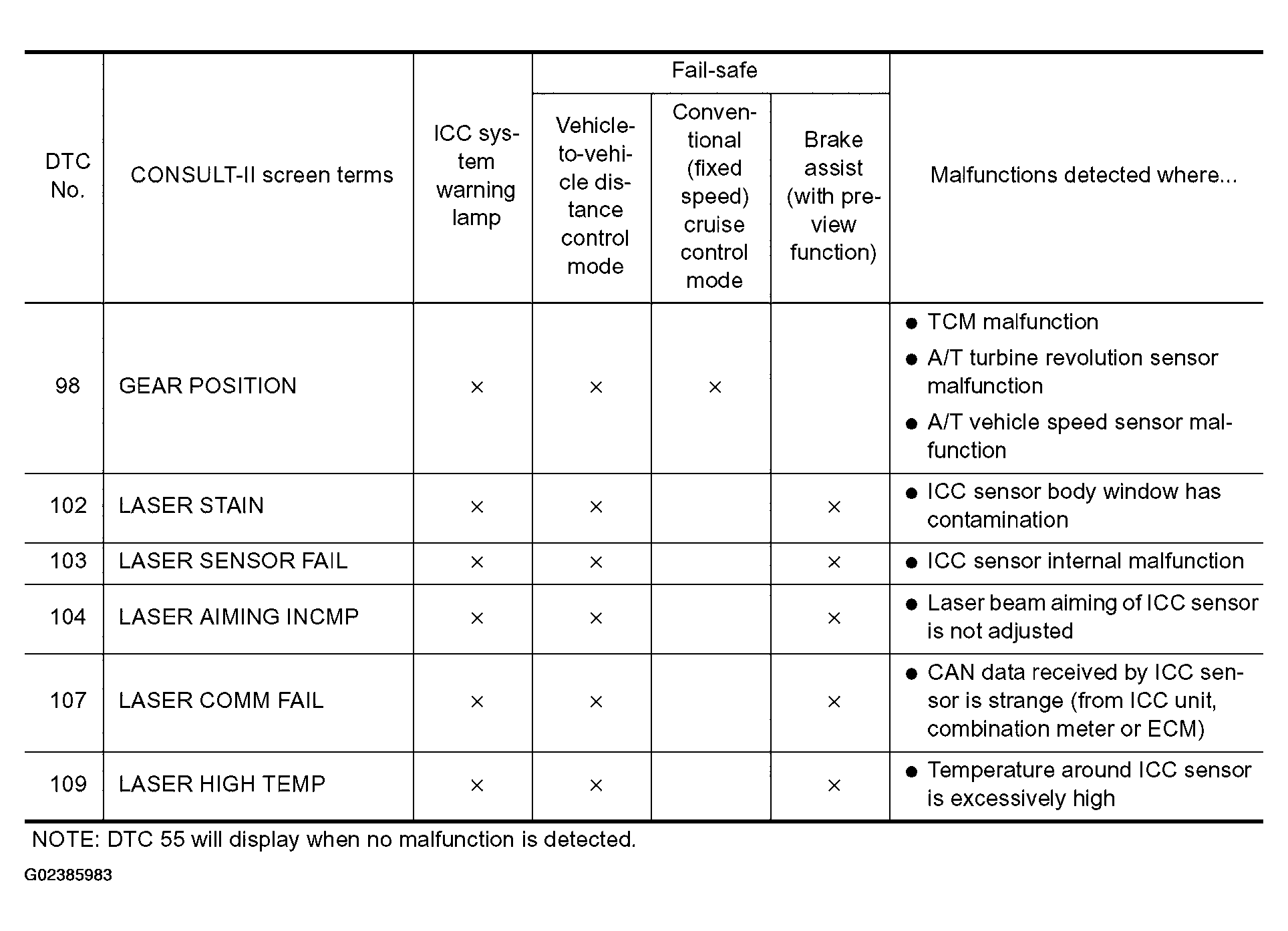

DTC INDEX
| DTC | Description |
|---|---|
| DTC 11 | CONTROL UNIT |
| DTC 12 | VDC CONTROL UNIT |
| DTC 20 | CAN COMM CIRCUIT |
| DTC 31 | POWER SUPPLY CIR1, DTC 34 POWER SUPPLY CIR2 |
| DTC 41 | VHCL SPEED SE CIRC |
| DTC 43 | VDC/TCS/ABS CIRC |
| DTC 45 | BRAKE SW/STOP L SW |
| DTC 46 | OPERATION SW CIRC |
| DTC 74 | LASER BEAM OFF CNTR |
| DTC 90 | STOP LAMP RLY FIX |
| DTC 92 | ECM CIRCUIT |
| DTC 96 | NP RANGE |
| DTC 97 | AT CIRCUIT |
| DTC 98 | GEAR POSITION |
| DTC 102 | LASER STAIN |
| DTC 103 | LASER SENSOR FAIL |
| DTC 104 | LASER AIMING INCMP |
| DTC 107 | LASER COMM FAIL |
| DTC 109 | LASER HIGH TEMP |
