Removal and Installation for Audio Unit
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- Remove cluster lid C. Refer to "CLUSTER LID C ".
- Disconnect the negative battery cable.

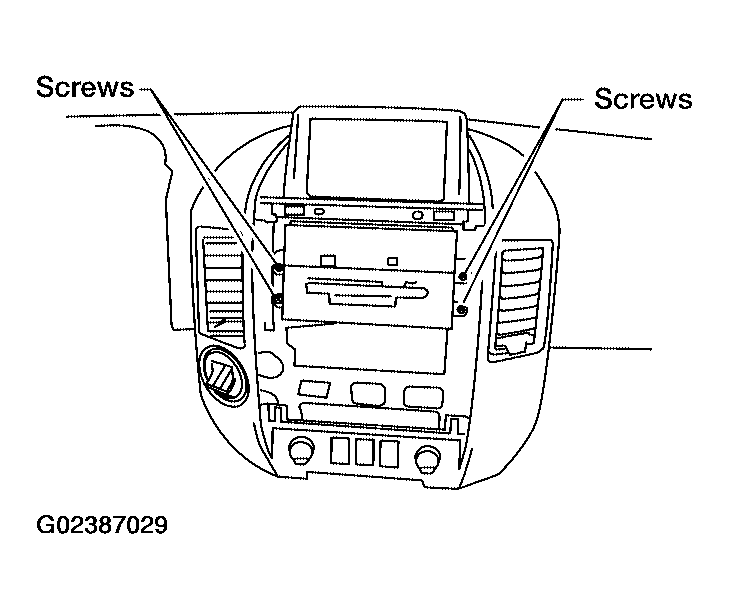

- Using power tool, remove the four audio unit screws.
- Pull out audio unit and disconnect connectors.
- Installation is in the reverse order of removal.
