Cluster Lid C

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

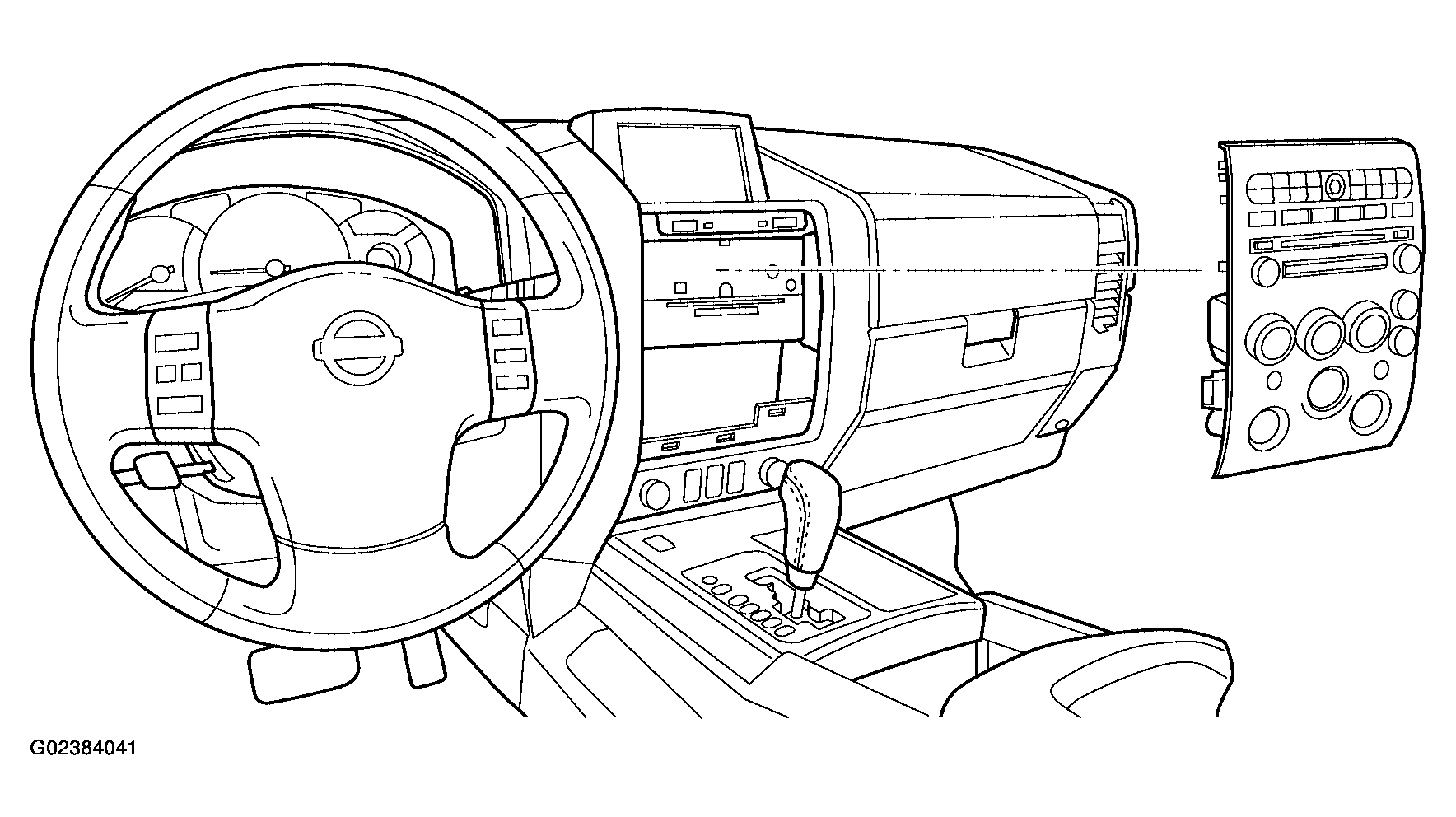

Fig 1: Removing Cluster Lid C

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove center console. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Pull cluster lid C towards rear of vehicle to release clips.
Disconnect electrical connectors.

Installation is in the reverse order of removal.

CAUTION: When removing and installing, place shop cloths onto surrounding parts to protect A/T finisher and center console from damage.
