Removal and Installation for AV Switch

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "CLUSTER LID C ".
  2. Remove the four AV switch screws.
  3. Carefully remove the AV switch.
  4. Installation is in the reverse order of removal.

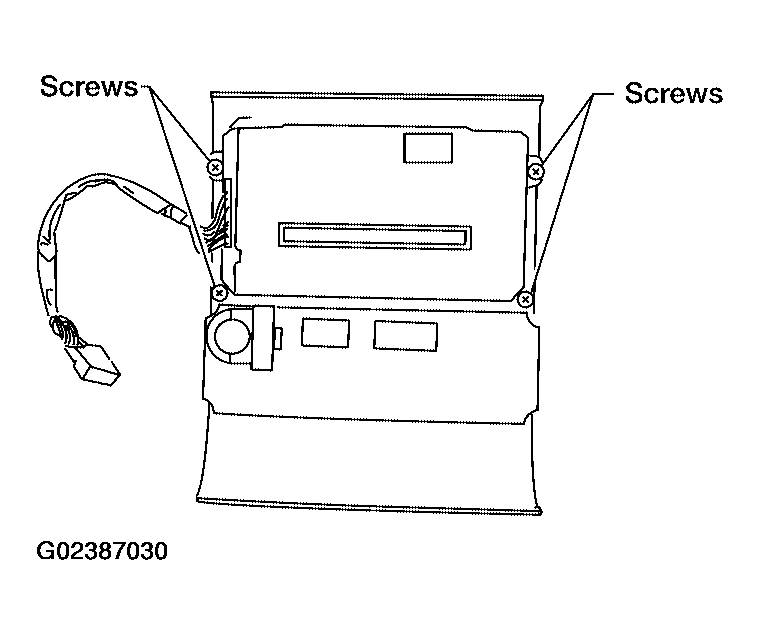

    Fig 1: Identifying AV Switch Screws
    G02387030Courtesy of NISSAN MOTOR CO., U.S.A.
