Removal and Installation of Illumination Control Switch: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid A. Refer to "COMBINATION METER ".
Carefully pry tabs and remove illumination control switch from cluster lid A.

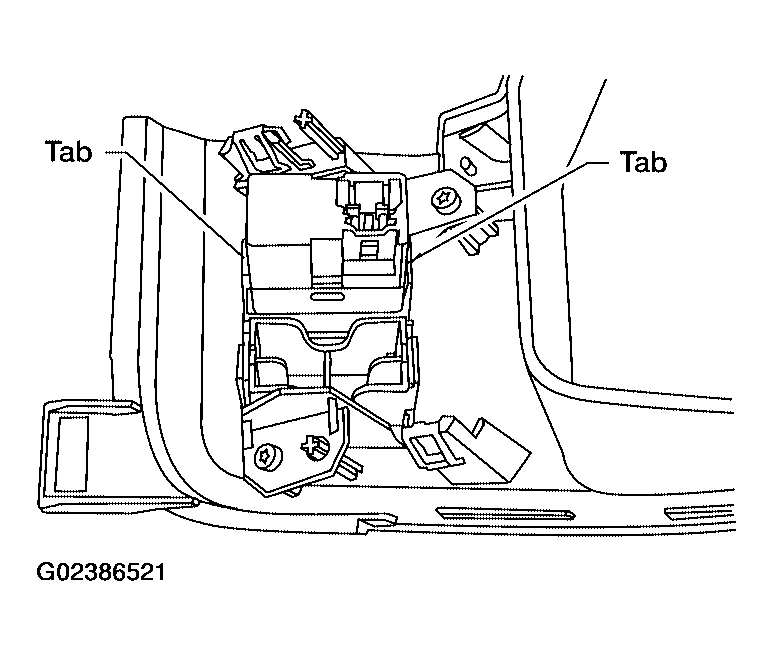

Fig 1: Identifying Illumination Control Switch Tabs
Courtesy of NISSAN MOTOR CO., U.S.A.
