Combination Meter

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument lower cover LH. Refer to "INSTRUMENT LOWER COVER LH ".
Remove the combination meter cover.
Remove cluster lid A.
Remove screws using power tool and remove the combination meter assembly.
- Disconnect electrical connectors.

Installation is in the reverse order of removal.

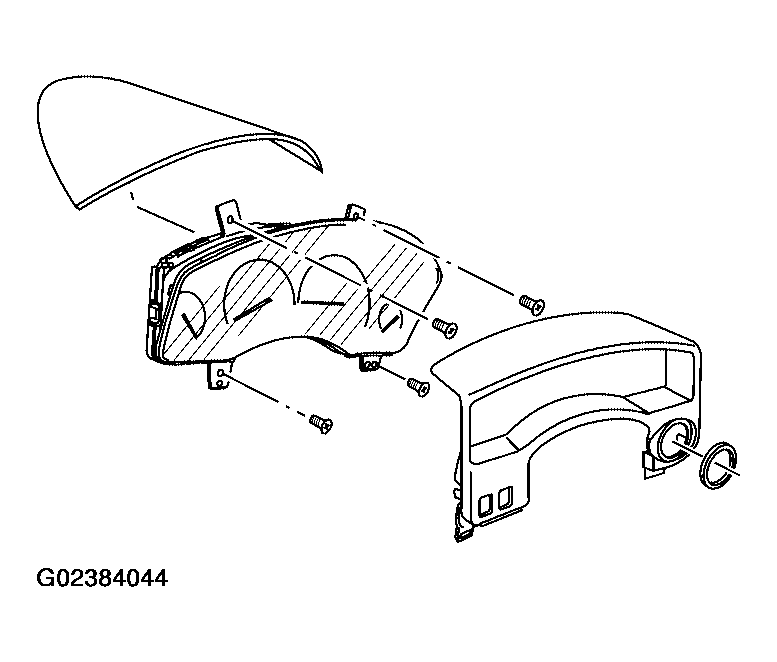

Fig 1: Removing Combination Meter Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.
