Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the connector.
  3. Remove the 5 headlamp mounting bolts.

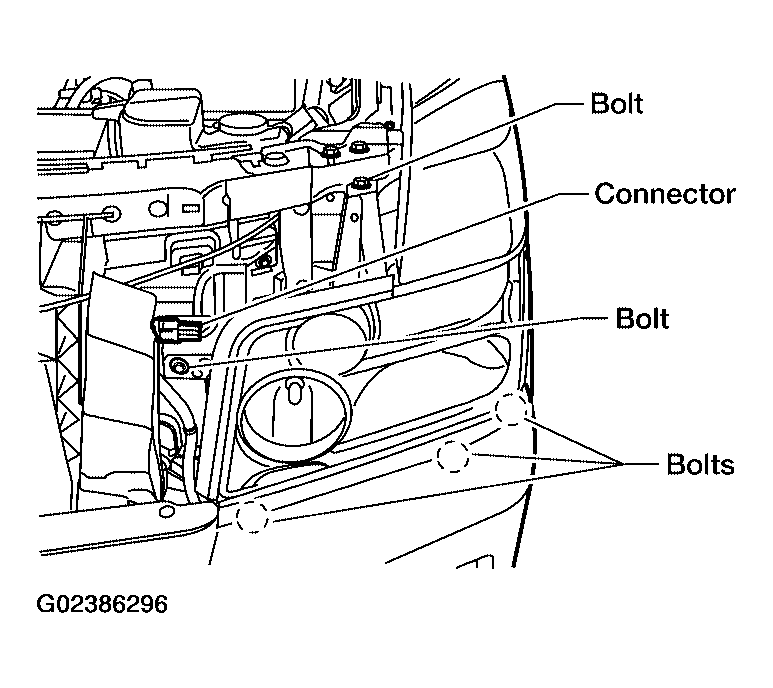

    Fig 1: Identifying Headlamp Connector And Mounting Bolts
    G02386296Courtesy of NISSAN MOTOR CO., U.S.A.
