Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

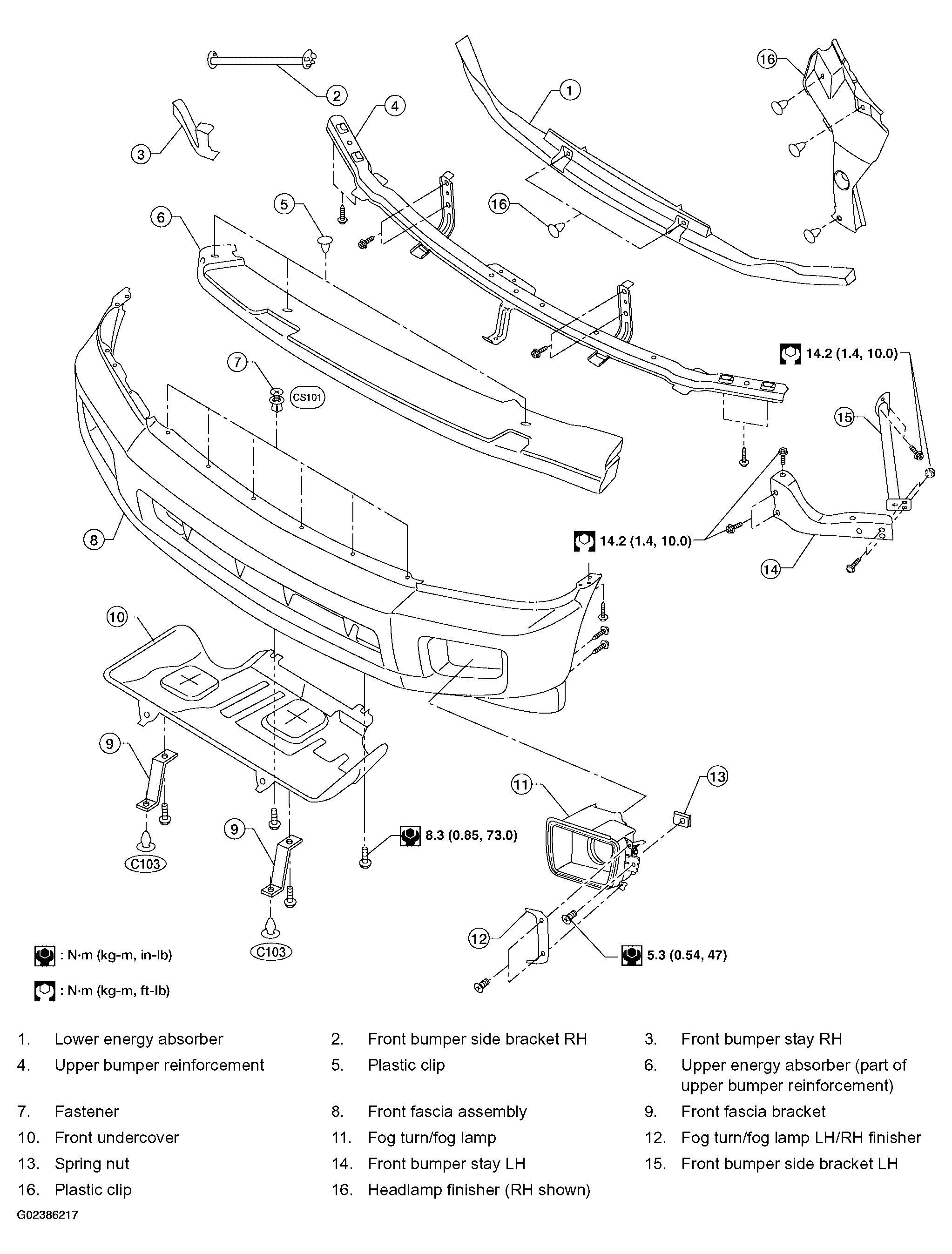

Fig 1: Exploded View Of Front Bumper With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove side screws from fascia assembly.
Remove screws from front of fender protector. Refer to "FENDER PROTECTOR ".
Remove engine undercover.
Remove fog turn/fog lamp finisher and fog turn/fog lamp.
- Disconnect harnesses.
Remove engine underside cover.
Remove fasteners, release clips and remove front fascia assembly.
Remove plastic clips and remove upper energy absorber.
Remove upper bumper reinforcement.
Remove plastic clips and remove lower energy absorber.
Remove front bumper stays and front bumper side brackets, LH and RH.

Installation is in the reverse order of removal.
