Inspection Parking Brake Switch Circuit

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK BRAKE INDICATOR
1. Turn ignition switch ON.
2. Apply parking brake.
3. Release parking brake.
  - Brake indicator in combination meter should illuminate when parking brake is applied and turn OFF when released.
OK or NG
- OK: Inspection End.
- NG: GO TO 2.
CHECK PARKING BRAKE SWITCH SIGNAL
1. Disconnect parking brake switch connector.
2. Turn ignition switch ON.
3. Check voltage between parking brake switch harness connector M11 terminal + (G) and ground.
  - + (G) - Ground: Battery voltage should exist.
OK or NG
- OK: Replace parking brake switch.
- NG: GO TO 3.

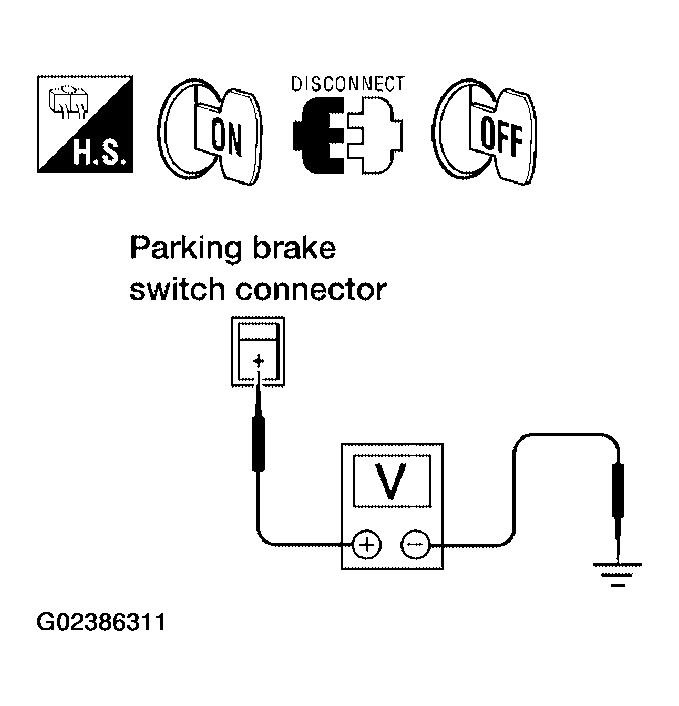

Fig 1: Checking Voltage Between Parking Brake Switch Harness Connector M11 Terminal + (G) And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK PARKING BRAKE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between combination meter harness connector M24 terminal 23 (G) and parking brake switch harness connector M11 terminal + (G).
  - + (G) - 23 (G): Continuity should exist.
  OK or NG
  - OK: Replace combination meter. Refer to "COMBINATION METER ".
  - NG: Repair harness or connector.

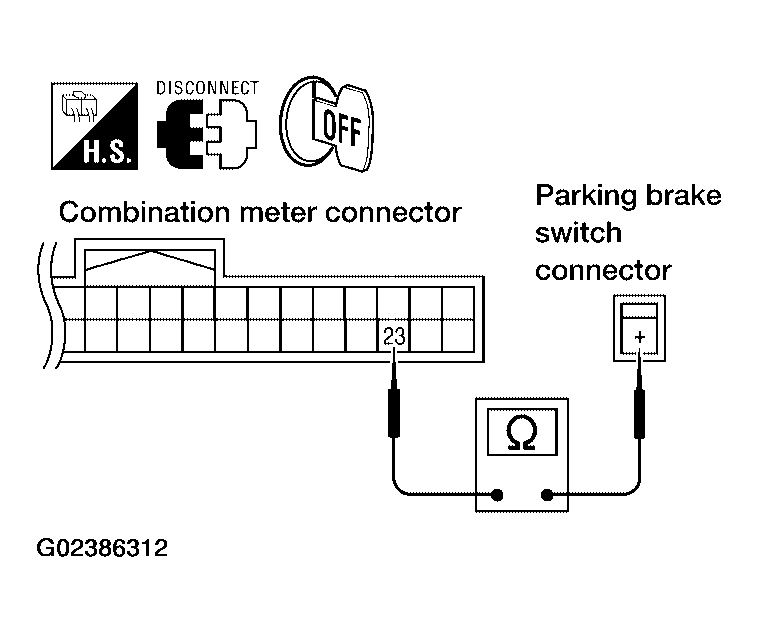

Fig 2: Checking Continuity Between Combination Meter Harness Connector M24 terminal 23 And Parking Brake Switch Harness Connector M11 Terminal +
Courtesy of NISSAN MOTOR CO., U.S.A.
