Front Air Control: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the five control knobs from the front air control unit.
  2. Remove the cluster lid C. Refer to "CLUSTER LID C ".
  3. Remove the four screws securing the front air control unit to cluster lid C.
  4. Remove the front air control unit.

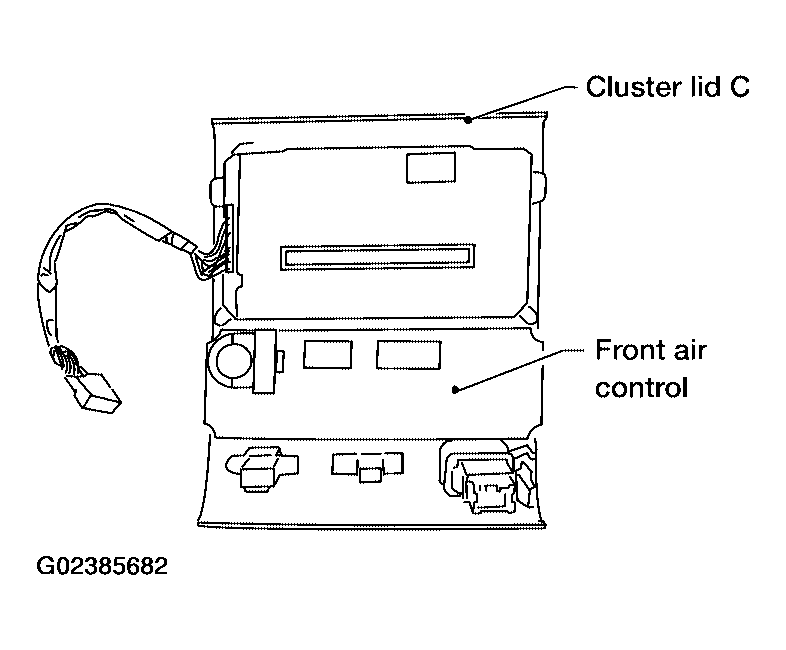

    Fig 1: Identifying Cluster Lid C And Front Air Control Unit
    G02385682Courtesy of NISSAN MOTOR CO., U.S.A.
