Drain Hoses

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

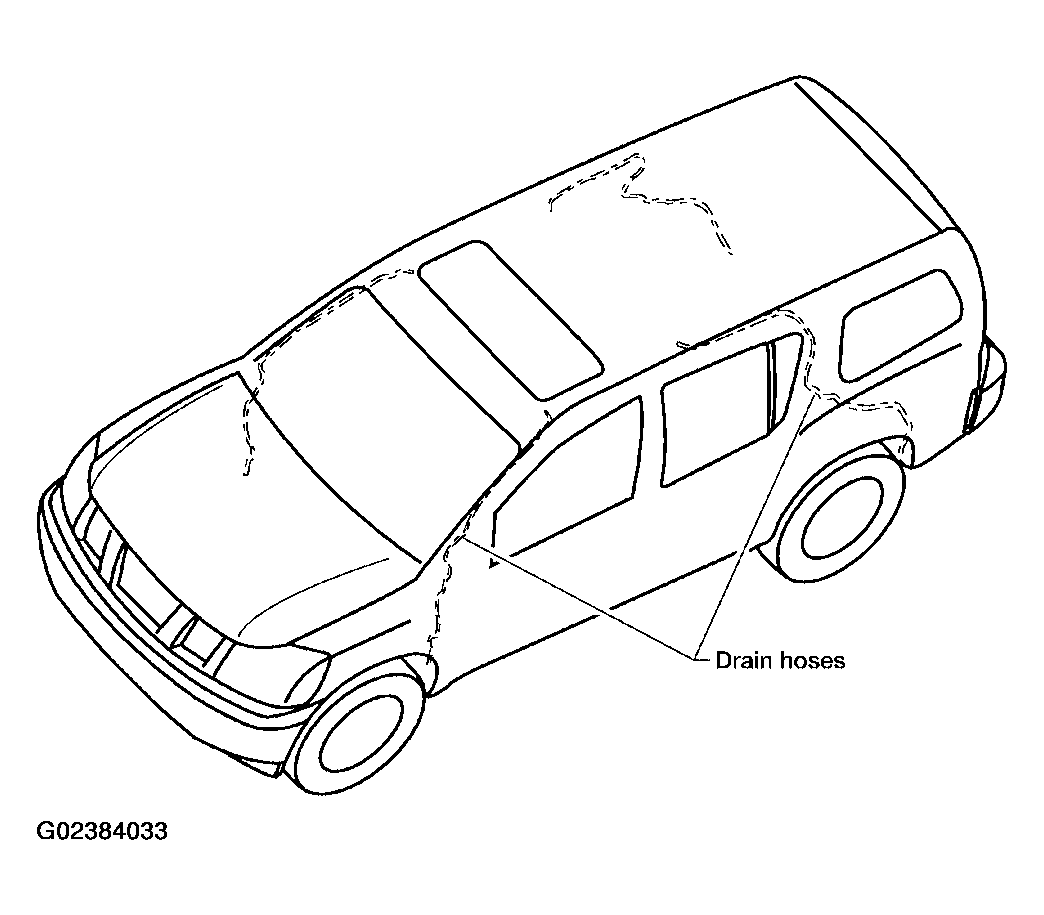

Fig 1: Locating Drain Hoses

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove the headlining. Refer to "REMOVAL AND INSTALLATION ".

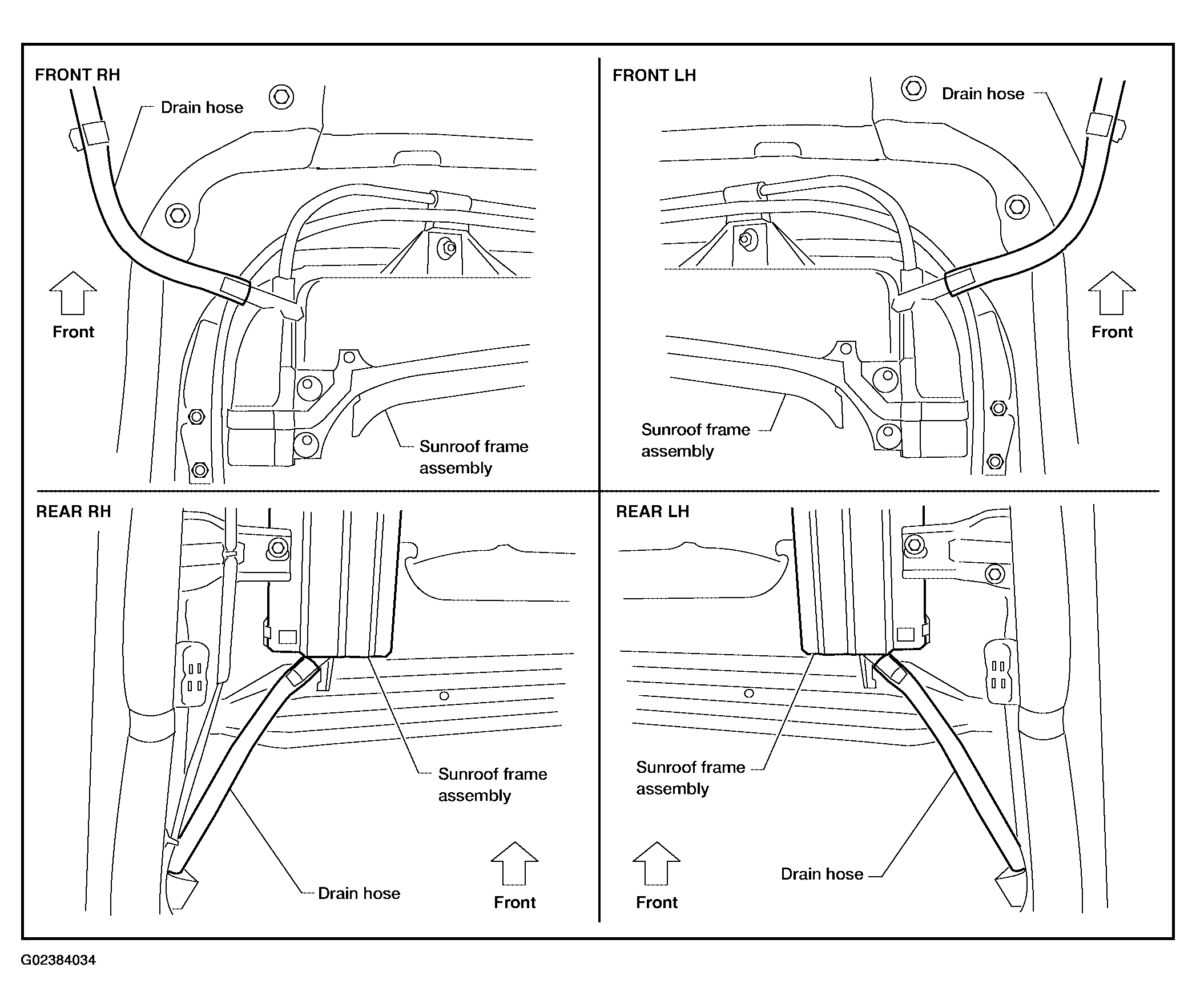

Fig 2: Identifying Drain Hose Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Visually check the drain hoses for proper connections, damage or deterioration.
Remove each drain hose and check visually for damage, cracks or deterioration.
Pour water through the drain hose to check for damage.
- If any damage is found, replace the drain hose.
