Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

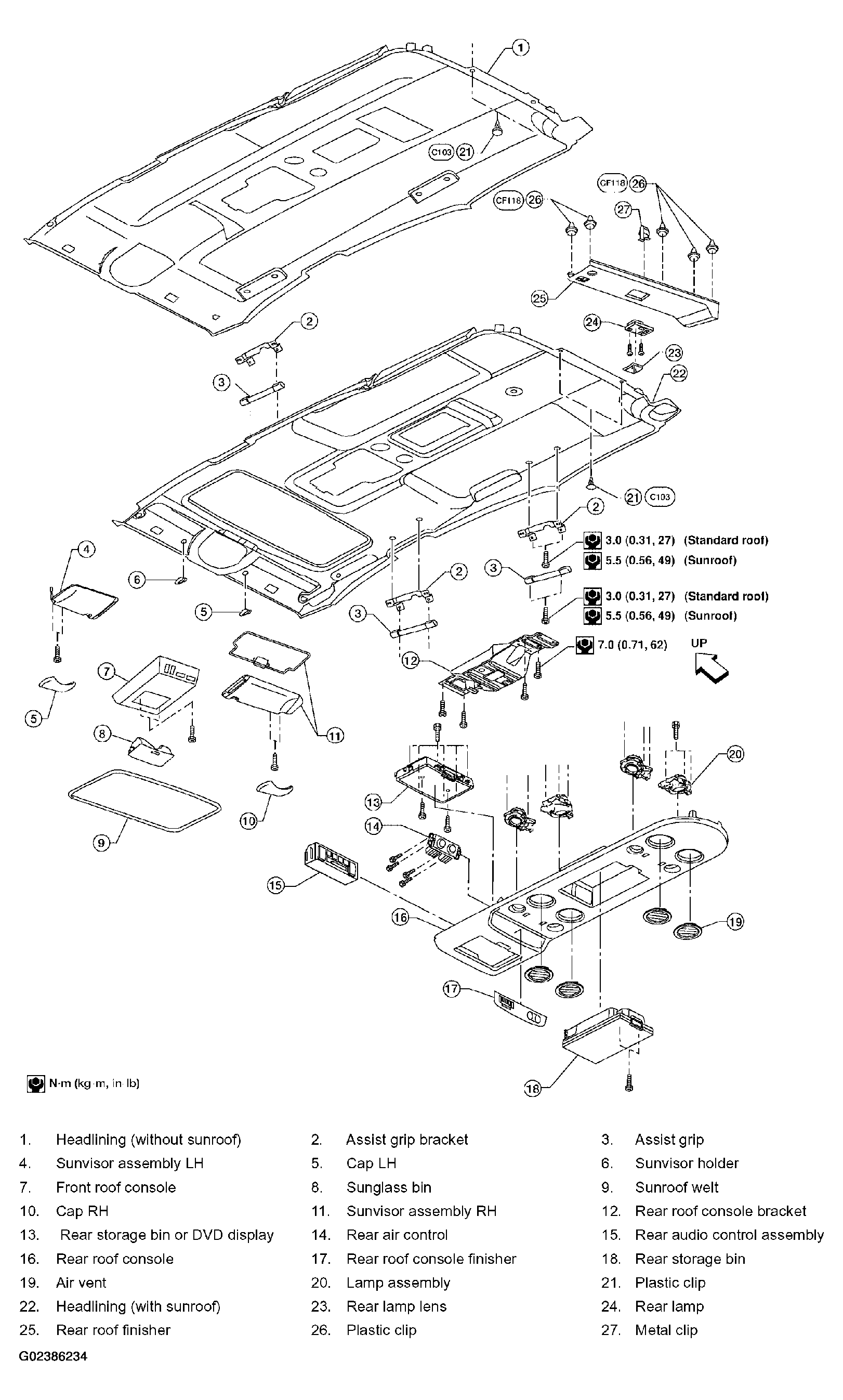

Fig 1: Exploded View Of Headlining With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Disconnect both terminals from battery in advance.

Remove body side trim. Refer to "BODY SIDE TRIM ".
Remove luggage floor trim. Refer to "LUGGAGE FLOOR TRIM ".
Remove sunvisor assemblies.
Remove sunvisor clips.
Remove sunroof welt (if equipped).
Remove front roof console.
- Disconnect harnesses.
Remove rear roof console.
- Disconnect harnesses.
Remove assist grips.
Remove lamp assembly from rear roof finisher.
- Disconnect harness.
Remove rear roof finisher.
Remove headlining.
- Remove clips from rear of headlining.
- Disconnect harnesses.
Remove rear air control.
- Disconnect harness.
Remove rear audio control assembly.
- Disconnect harness.
Remove lamp assemblies.
- Disconnect harnesses.
Remove air vents.
Remove the front roof console bracket.
Remove rear roof console front bracket.
Remove assist grip brackets from roof.

Installation is in the reverse order of removal.
