Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not deform the brake tube.
CAUTION:
- Before removal and installation the accelerator and brake pedals must be in the forward most position (closest to the floor). This is to align the base position of the accelerator and brake pedals.
- Do not disassemble the brake pedal adjusting mechanism.
- Avoid damage from dropping the brake pedal assembly during handling.
- Keep the brake pedal assembly away from water.
- Remove the lower driver instrument panel. Refer to "INSTRUMENT LOWER COVER LH ".
- Remove the stop lamp switch and ASCD switch from the pedal assembly.
- Disconnect the adjustable brake pedal cable from the adjustable pedal electric motor.

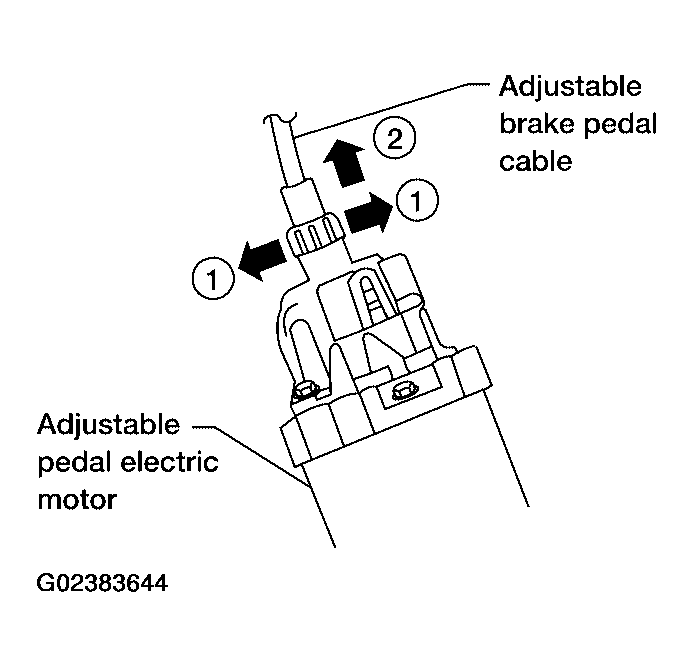

- Unlock (1) then pull (2) the adjustable brake pedal cable to disconnect it from the adjustable pedal electric motor as shown.
- Remove snap pin and clevis pin from the clevis of brake booster.
- Remove mounting nuts and the pedal assembly.
- Temporarily install nuts by hand to support booster.
CAUTION:- Before removal and installation the accelerator and brake pedals must be in the forwardmost position (closest to the floor). This is to align the base position of the accelerator and brake pedals.
- Do not disassemble the brake pedal adjusting mechanism.
- Avoid damage from dropping the brake pedal assembly during handling.
- Keep the brake pedal assembly away from water.
