Wheel Alignment Inspection: Toe-In

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Bounce the rear of the vehicle up and down two to three times to stabilize the vehicle height. Refer to "WHEELARCH HEIGHT (UNLADEN*1) ".
Push the vehicle straight ahead about 5 m (16 ft).
Put a mark on the base line of the tread (rear side) of both of the tires at the same height as the center of the hub. This will be the measuring points.
Measure the distance "A" (rear side) across from tire to tire.

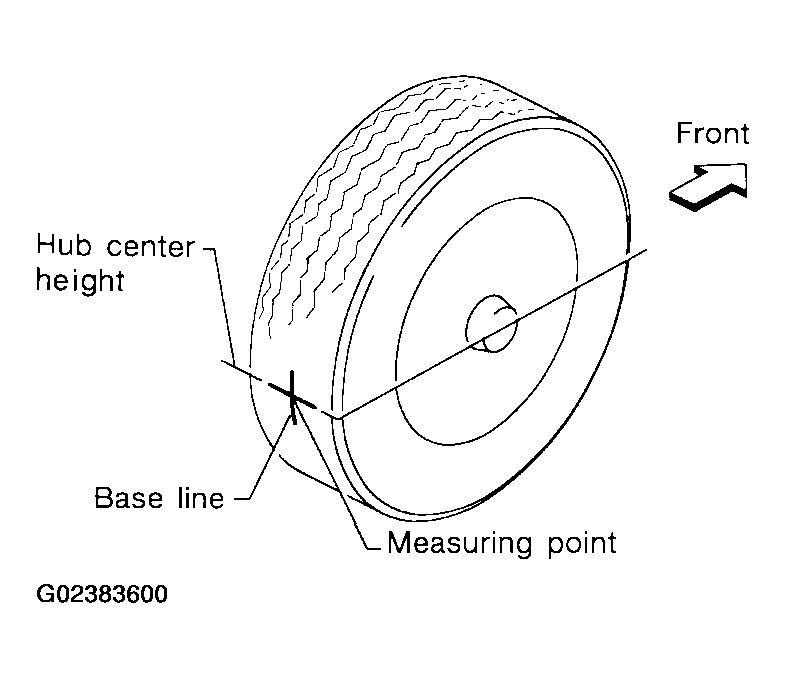

Fig 1: Marking Base Line Of Tread (Rear Side) On Both Tires At Same The Height As Center Of Hub To Determine Measuring Points
Courtesy of NISSAN MOTOR CO., U.S.A.
Push the vehicle slowly ahead to rotate the wheels 180° (a half turn).
If the wheels are rotated more than 180° (a half turn), then repeat the above steps. Never push the vehicle backward.
Measure the distance "B" (front side) across from tire to tire.
1. Total toe-in: Refer to "WHEEL ALIGNMENT ".
Fig 2: Measuring Distance "B" (Front Side) Across From Tire To Tire
Courtesy of NISSAN MOTOR CO., U.S.A.
If the toe-in is outside the specified value, adjust the toe-in using the adjusting bolt in the rear lower link.
CAUTION: Be sure to adjust equally on RH and LH sides using the adjusting bolt.

NOTE: Toe changes about 1.5 mm (0.059 in) [one side] with each graduation of the adjusting bolt.
Tighten the adjusting bolt nuts to specification.

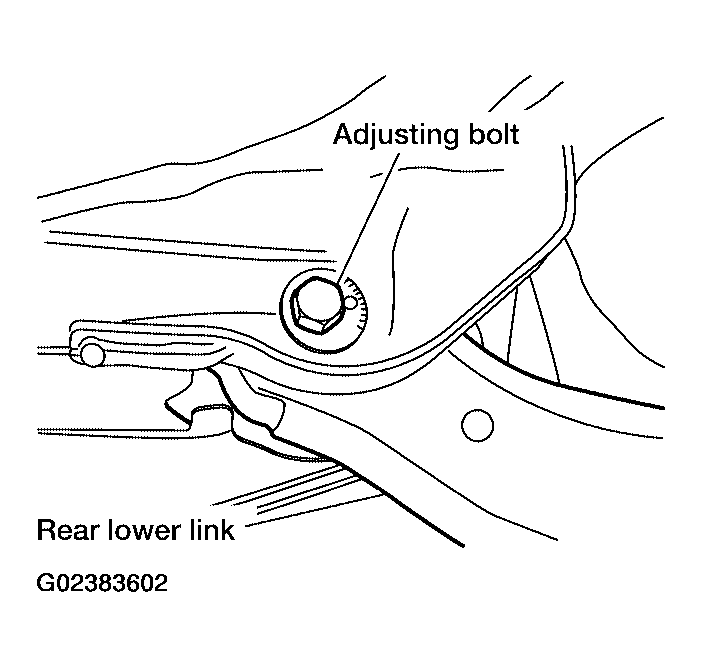

Fig 3: Identifying Rear Lower Link And Adjusting Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
