Wheelarch Height (Unladen )

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Service Data And Specifications - Wheelarch Height

Suspension type

Air leveling⁽¹⁾

Applied model

4x2

4x4

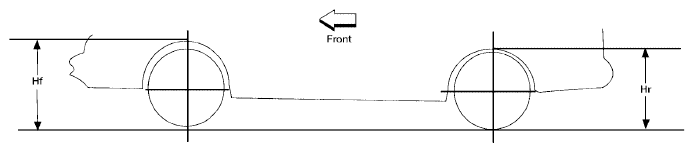

Front wheelarch height (Hf)

913 (35.94)

931 (36.65)

Rear wheelarch height (Hr)

912 (35.91)

932 (36.69)

Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

⁽¹⁾	Verify the vehicle height. If vehicle height is not within + 10 mm (0.39 in) of the specification, perform the control unit initialization procedure. Refer to "Initialization Procedure" .
