Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wheel and tire using power tool.
  2. Remove engine under cover using power tool.
  3. Without disassembling the hydraulic lines, remove caliper torque member bolts using power tool. Then reposition brake caliper aside with wire. Refer to "REMOVAL ".
    NOTE: Do not press brake pedal while brake caliper is removed.
  4. Put alignment mark on disc rotor and wheel hub and bearing assembly, then remove disc rotor.

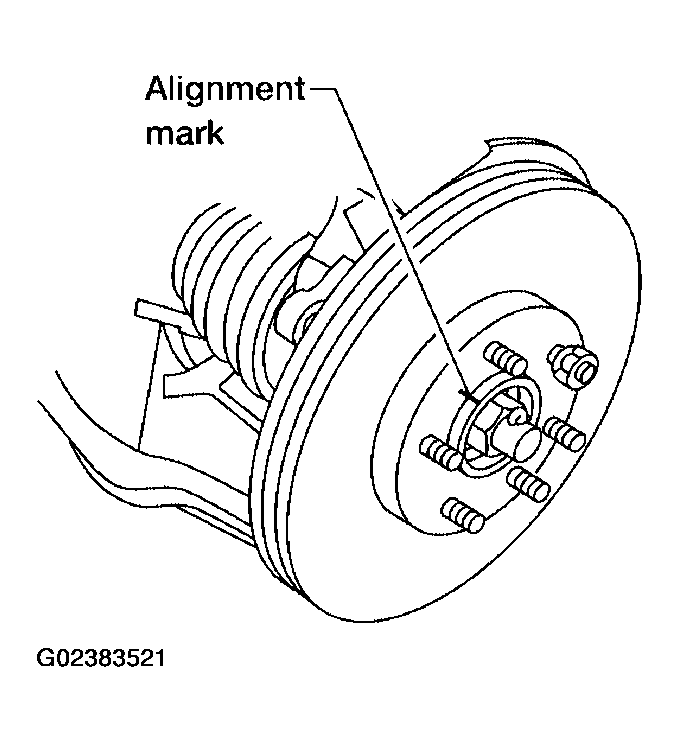

    Fig 1: Putting Alignment Mark On Disc Rotor And Wheel Hub And Bearing Assembly
    G02383521Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove cotter pin, then remove lock nut from drive shaft using power tool. Refer to "REMOVAL AND INSTALLATION ".
  6. Remove drive shaft from wheel hub and bearing assembly. Refer to "REMOVAL AND INSTALLATION ".
  7. Remove ABS sensor. Refer to "REMOVAL AND INSTALLATION ".
    • Inspect the ABS sensor O-ring, replace the ABS sensor assembly if damaged.
    • Clean the ABS sensor hole and mounting surface with a suitable brake cleaner and clean lint-free shop rag. Be careful that dirt and debris do not enter the axle bearing area.
    • Apply a coat of suitable grease to the ABS sensor O-ring and mounting hole.
    CAUTION: Do not pull on the ABS sensor harness.
  8. Remove wheel hub and bearing assembly bolts using power tool.
  9. Remove splash guard and wheel hub and bearing assembly from steering knuckle.
