Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform "CONSULT-II SETTING PROCEDURE". Refer to "CONSULT-II SETTING PROCEDURE ".
  2. With engine at idle, touch "SELF-DIAG RESULTS".

    Display shows malfunction experienced since the last erasing operation.

    NOTE:
    • The details for "TIME" are as follow:
      • "0": Error currently detected with transfer control unit.
      • Except for "0": Error detected in the past and memorized with transfer control unit.

        Detects frequency of driving after DTC occurs (frequency of turning ignition switch "ON/OFF").

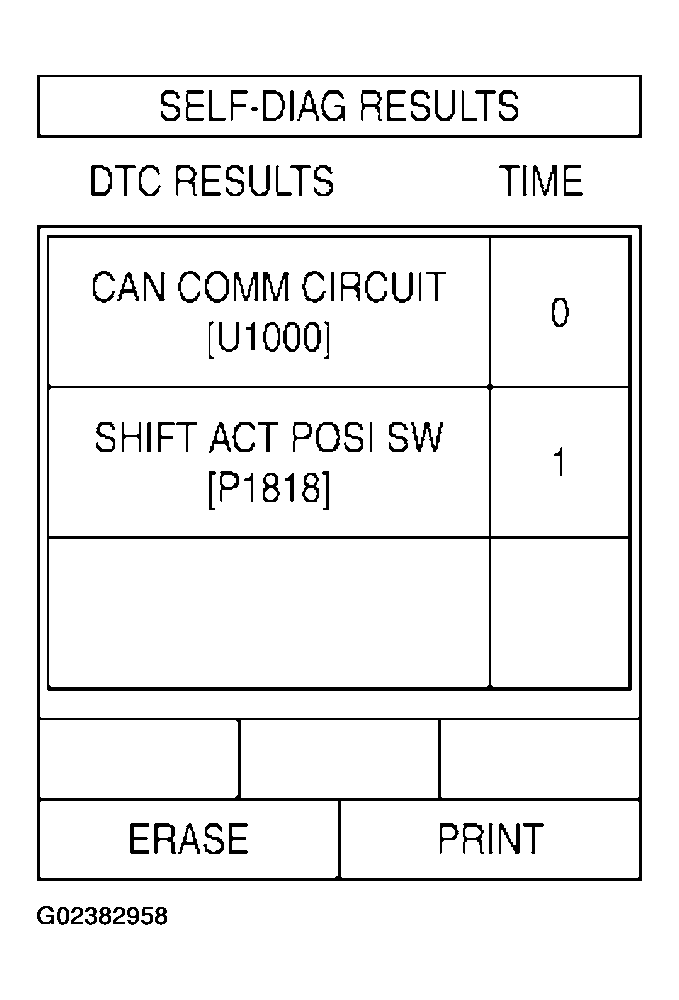

    Fig 1: Identifying "SELF-DIAG RESULTS"
    G02382958Courtesy of NISSAN MOTOR CO., U.S.A.
