Consult-II Setting Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
NOTE: For details, refer to the separate "CONSULT-II Operations Manual".
  1. Turn ignition switch "OFF".
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle.
  3. Turn ignition switch "ON".

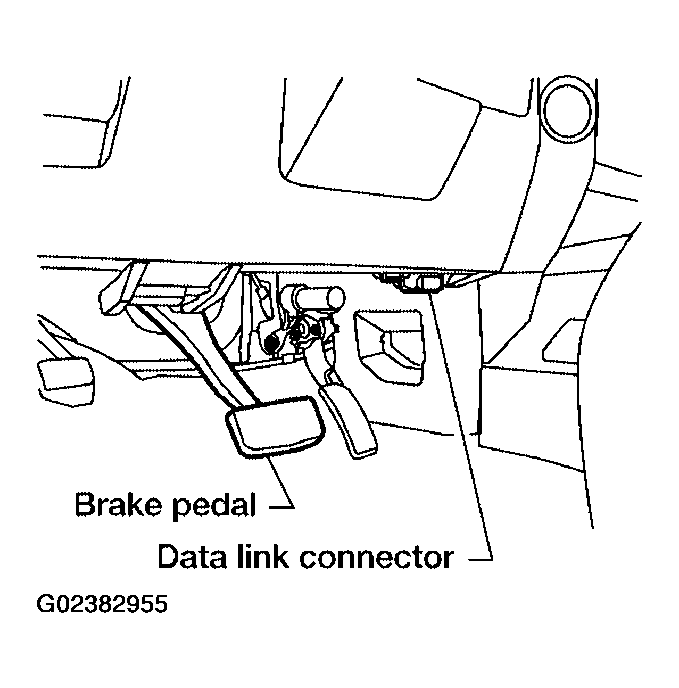

    Fig 1: Identifying Data Link Connector
    G02382955Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".

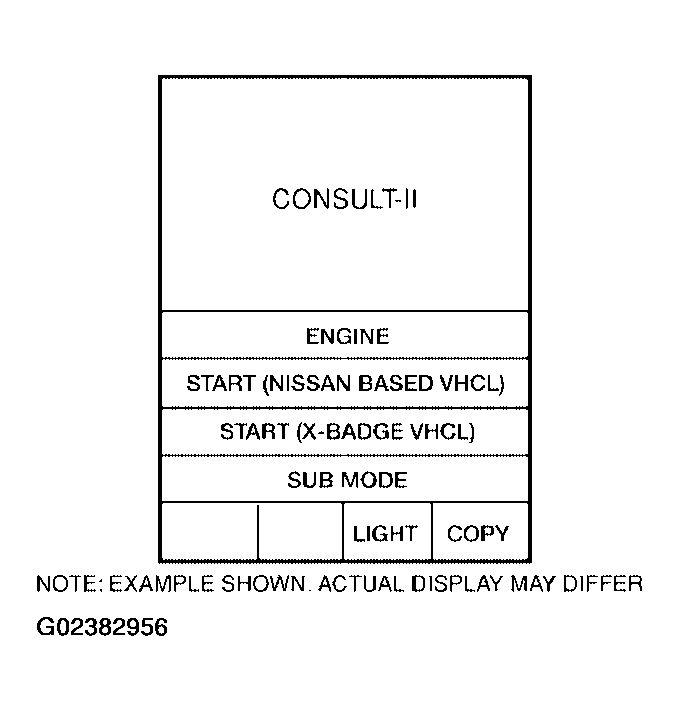

    Fig 2: Identifying "START (NISSAN BASED VHCL)"
    G02382956Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ALL MODE AWD/4WD".

    If "ALL MODE AWD/4WD" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

  6. Perform each diagnostic test mode according to each service procedure.

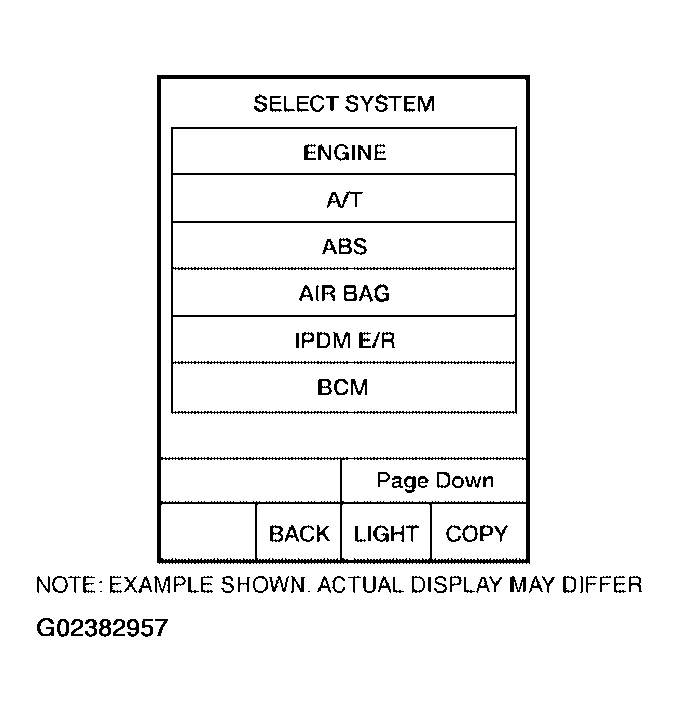

    Fig 3: Identifying Select System Screen
    G02382957Courtesy of NISSAN MOTOR CO., U.S.A.
