Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set transfer state as 2WD when 4WD shift switch is at 2WD, or as AUTO when 4WD shift switch is at AUTO.
    CAUTION: When removing transfer control unit, transfer state must be at 2WD or AUTO.
  2. Turn the ignition switch OFF and disconnect negative battery terminal.
  3. Remove the glove box assembly. Refer to "INSTRUMENT LOWER COVER RH AND GLOVE BOX ".
  4. Disconnect the two transfer control unit connectors.
  5. Remove the transfer control unit bolts.
  6. Remove the transfer control unit.

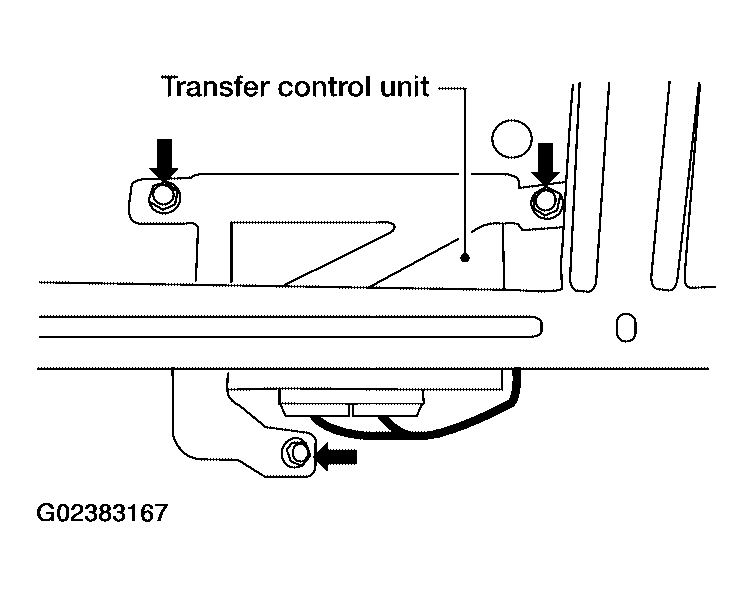

    Fig 1: Identifying Transfer Control Unit And Bolts
    G02383167Courtesy of NISSAN MOTOR CO., U.S.A.
