Instrument Lower Cover RH and Glove Box

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

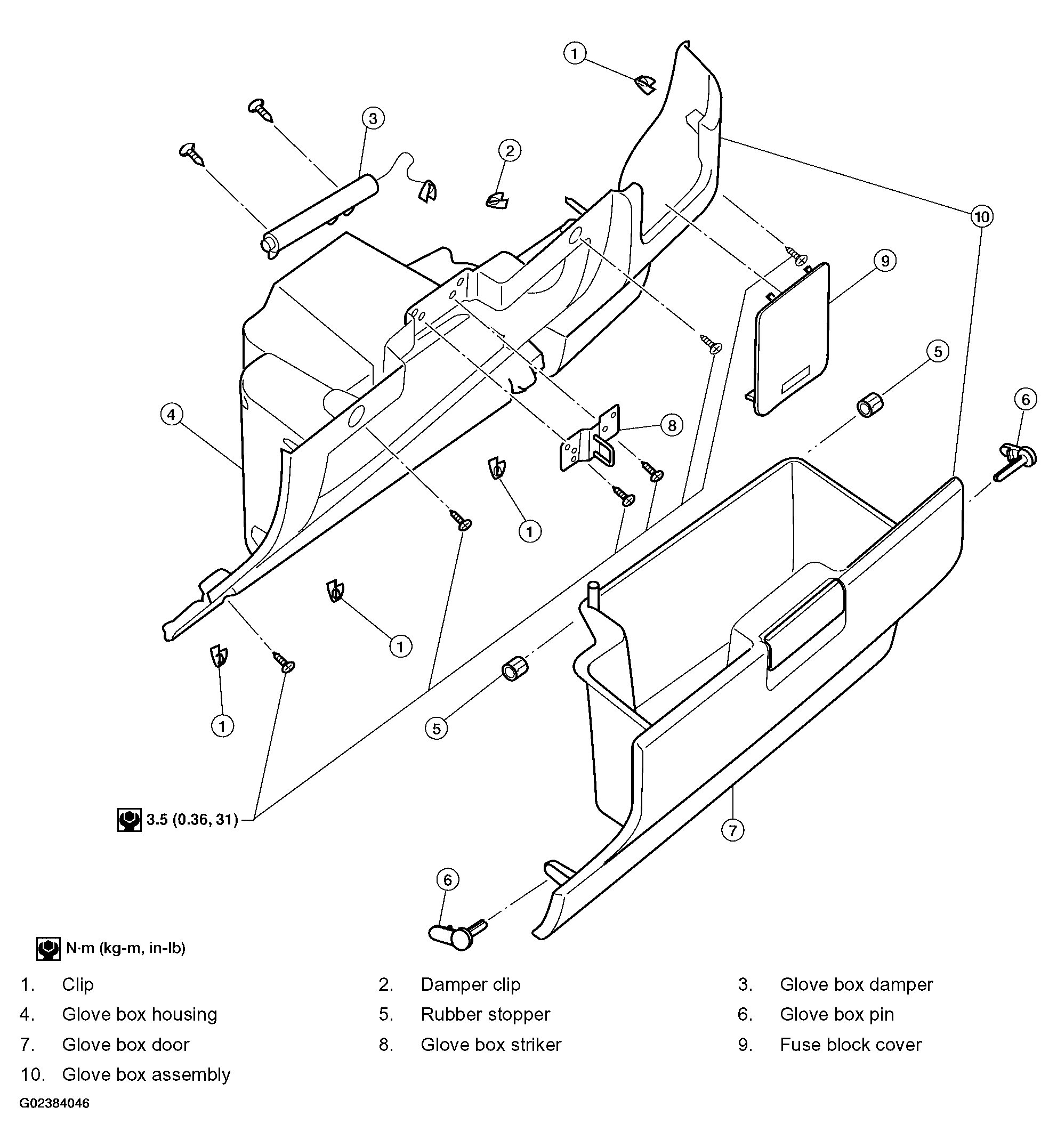

Fig 1: Exploded View Of Instrument Lower Cover RH And Glove Box With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove the instrument lower cover RH.
Remove screws using power tool, release clips and remove glove box and housing as an assembly.
Remove damper clip from glove box.
Remove glove box pins and glove box.
Remove screws from glove box striker using power tool and remove striker.
Remove fuse block cover.
Remove screws and remove glove box damper from back of glove box housing.

Installation is in the reverse order of removal.

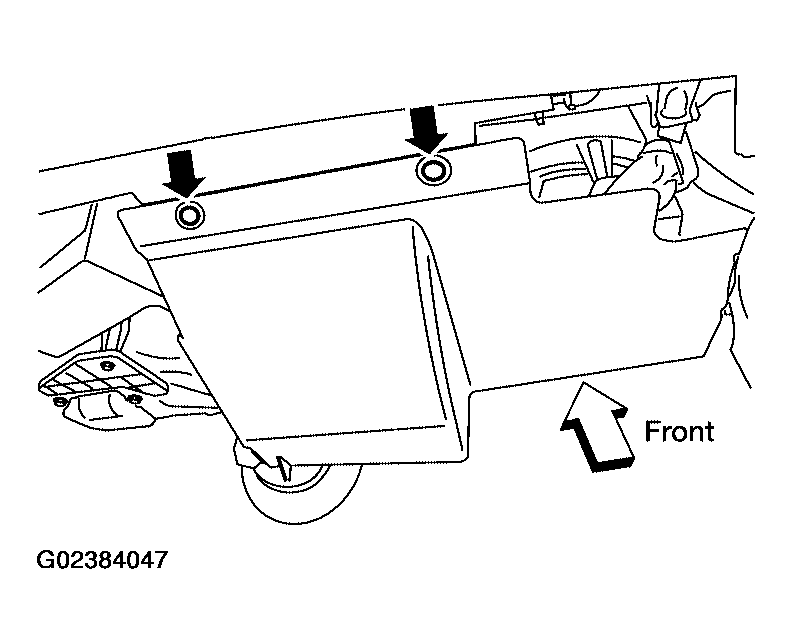

Fig 2: Removing Screws And Glove Box Damper From Back Of Glove Box Housing

Courtesy of NISSAN MOTOR CO., U.S.A.
