Diagnostic Procedure

Perform self-diagnosis. Refer to "SELF-DIAGNOSTIC RESULT MODE ".

Do the self-diagnosis results indicate PNP switch, ATF pressure switch 1, ATF pressure switch 3?

1. YES: Check the malfunctioning system. Refer to "DTC P0705 PARK/NEUTRAL POSITION SWITCH ", "DTC P1841 ATF PRESSURE SWITCH 1 ", "DTC P1843 ATF PRESSURE SWITCH 3 ".
2. NO: GO TO 2.

Check the A/T fluid level. Refer to "CHECKING A/T FLUID ".

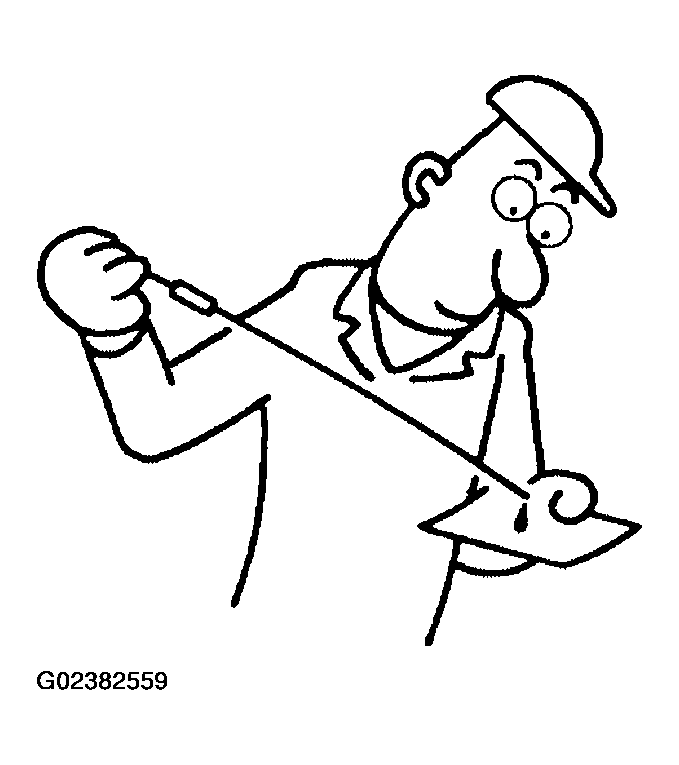

Fig 1: Checking A/T Fluid Level

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 3.
2. NG: Refill ATF.

Check the control cable.

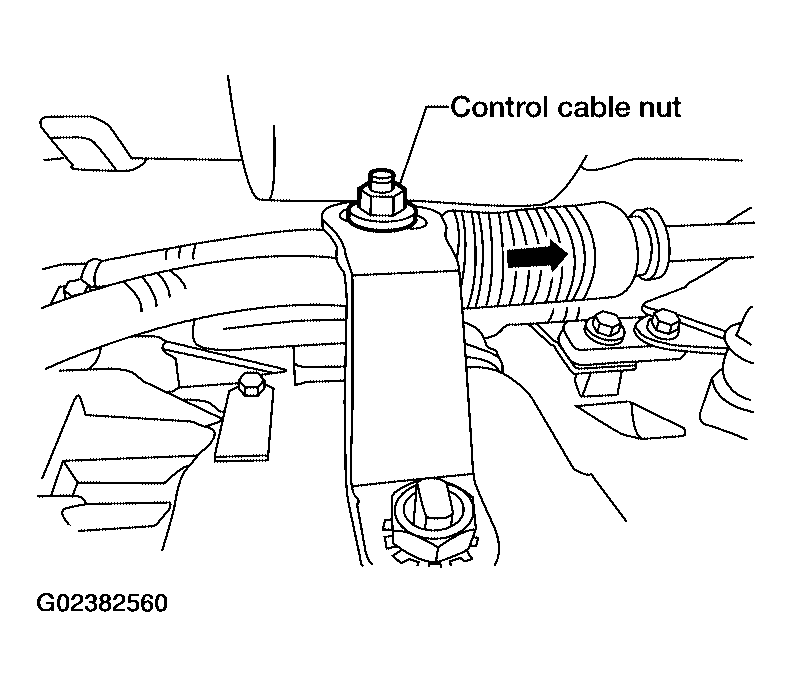

Fig 2: Checking Control Cable

Courtesy of NISSAN MOTOR CO., U.S.A.

• Refer to "CHECKING OF A/T POSITION ".

OK or NG

1. OK: GO TO 4.
2. NG: Adjust control cable. Refer to "ADJUSTMENT OF A/T POSITION ".

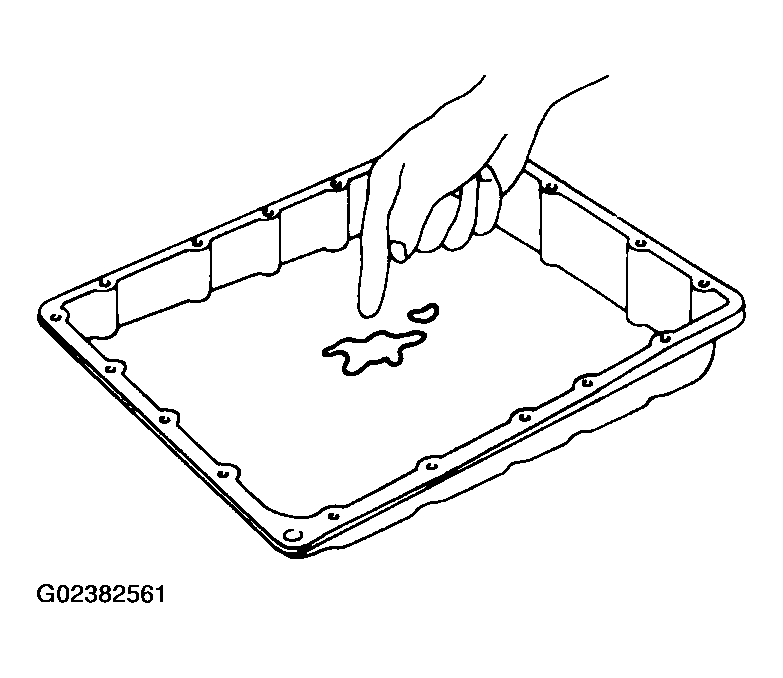

Fig 3: Checking A/T Fluid Condition

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove oil pan. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
2. Check A/T fluid condition. Refer to "FLUID CONDITION CHECK ".

OK or NG

1. OK: GO TO 5.
2. NG: GO TO  8.

• Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to "SYMPTOM CHART " (Symptom No. 15).

OK or NG

1. OK: GO TO 6.
2. NG: Repair or replace damaged parts.

Check again. Refer to "CRUISE TEST - PART 3 ".

OK or NG

1. OK: INSPECTION END
2. NG: GO TO 7.

1. Perform TCM input/output signals inspection. Refer to "TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES ".
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.

OK or NG

1. OK: INSPECTION END
2. NG: Repair or replace damaged parts.

• Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to "SYMPTOM CHART " (Symptom No. 15).

OK or NG

1. OK: GO TO  6.
2. NG: Repair or replace damaged parts.
