Symptom Chart

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
Overhaul and inspect inside the A/T only if A/T fluid condition is NG. Refer to "A/T FLUID CHECK ".

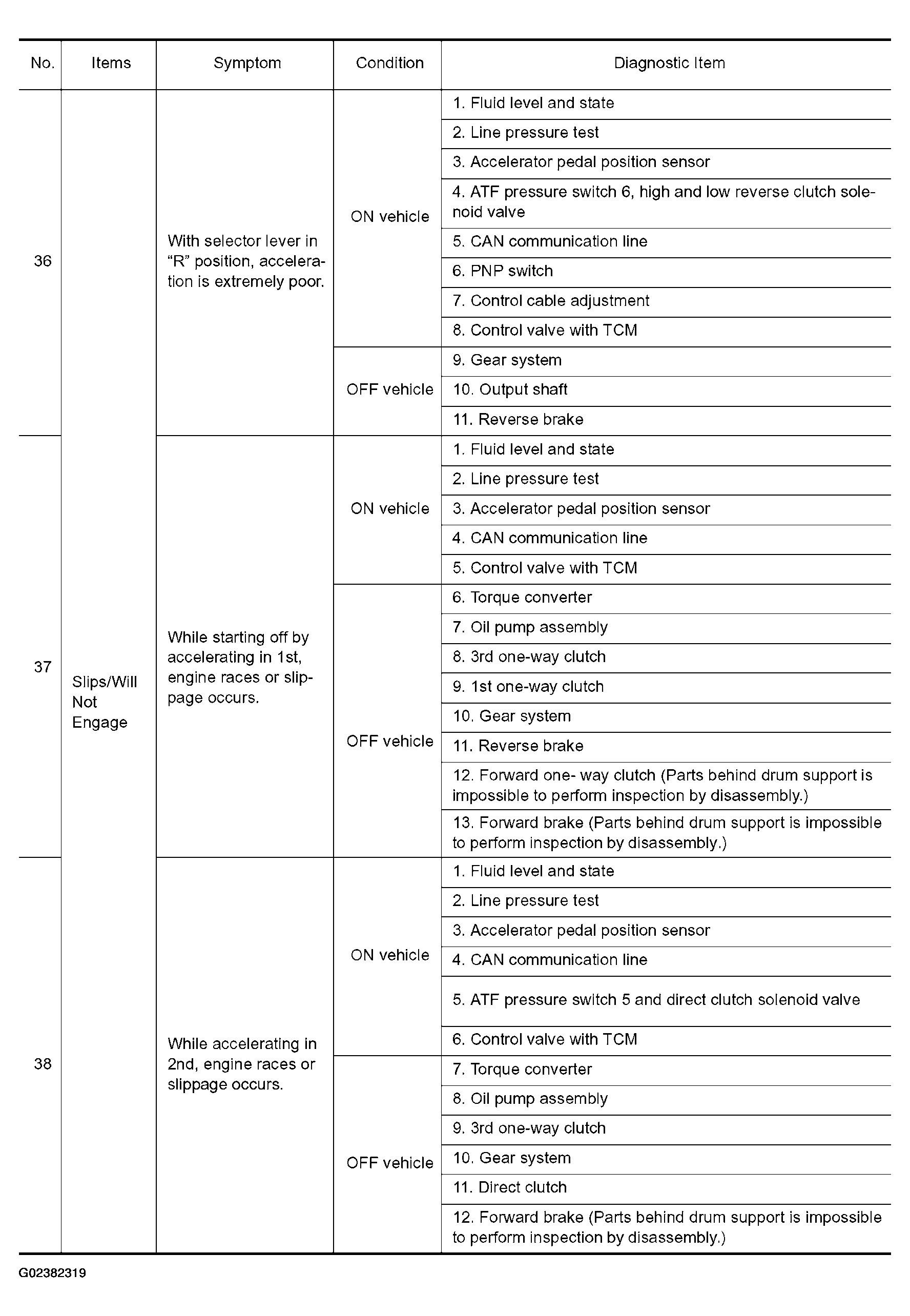

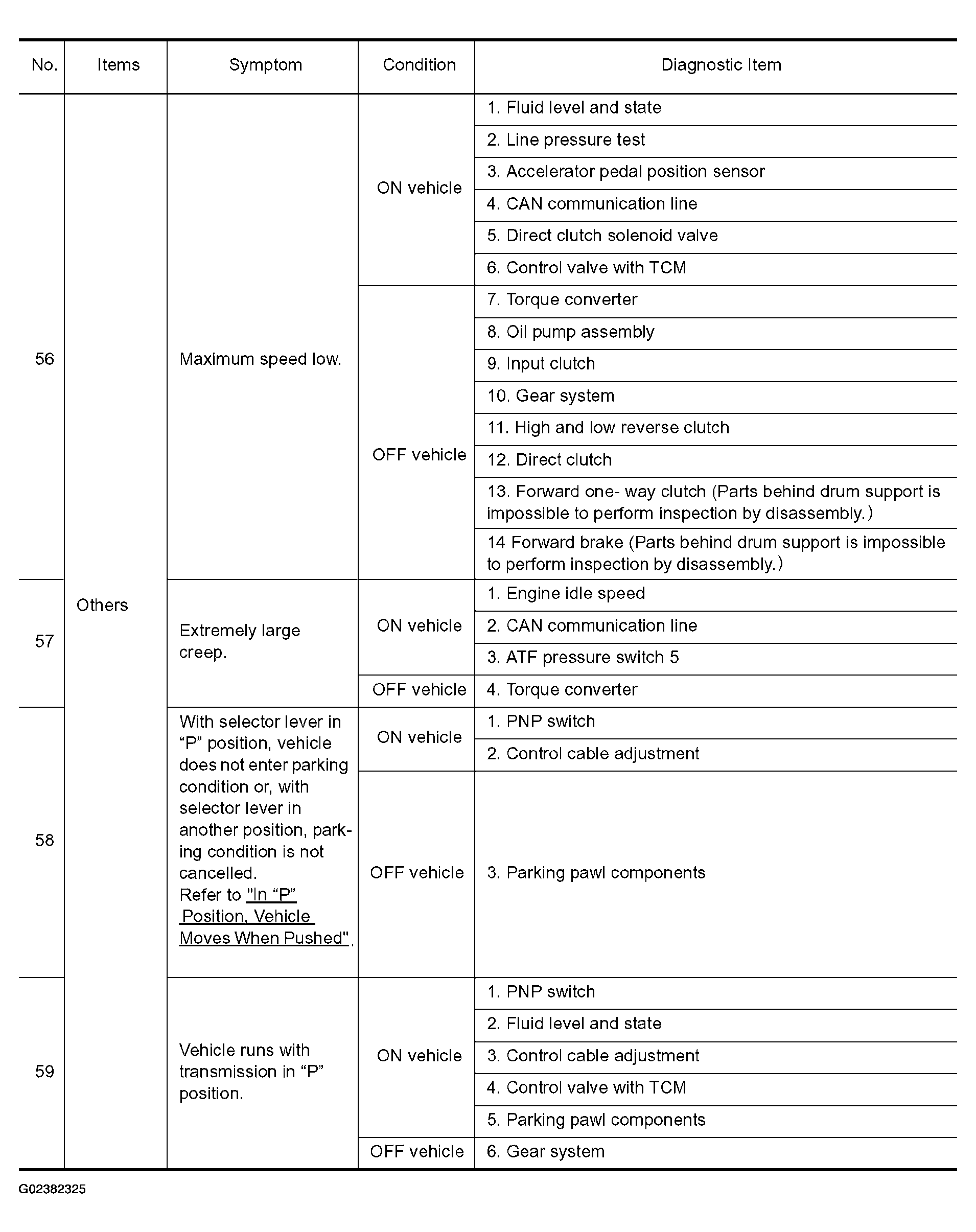

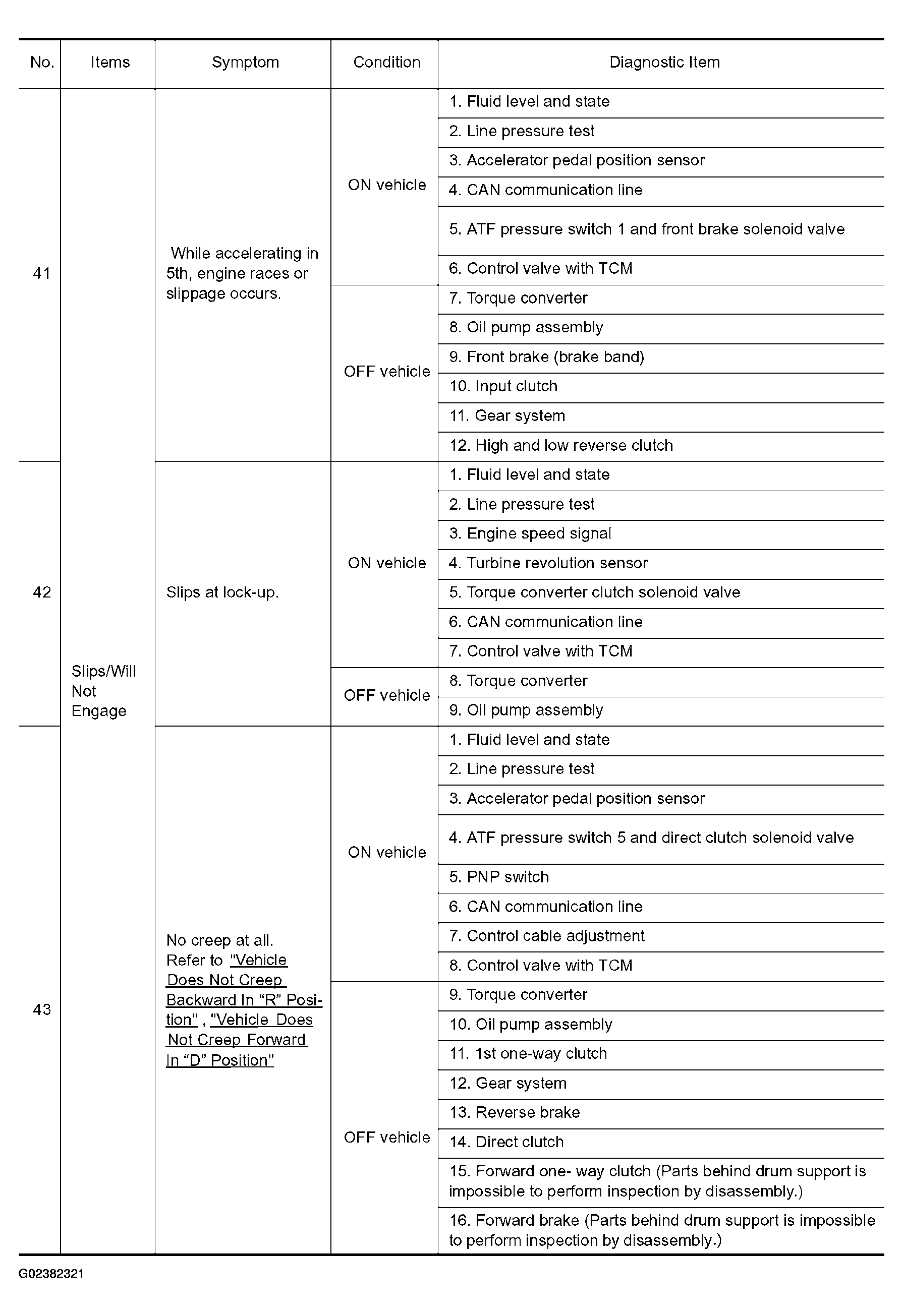

Fig 1: Problem Symptom Chart (1 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

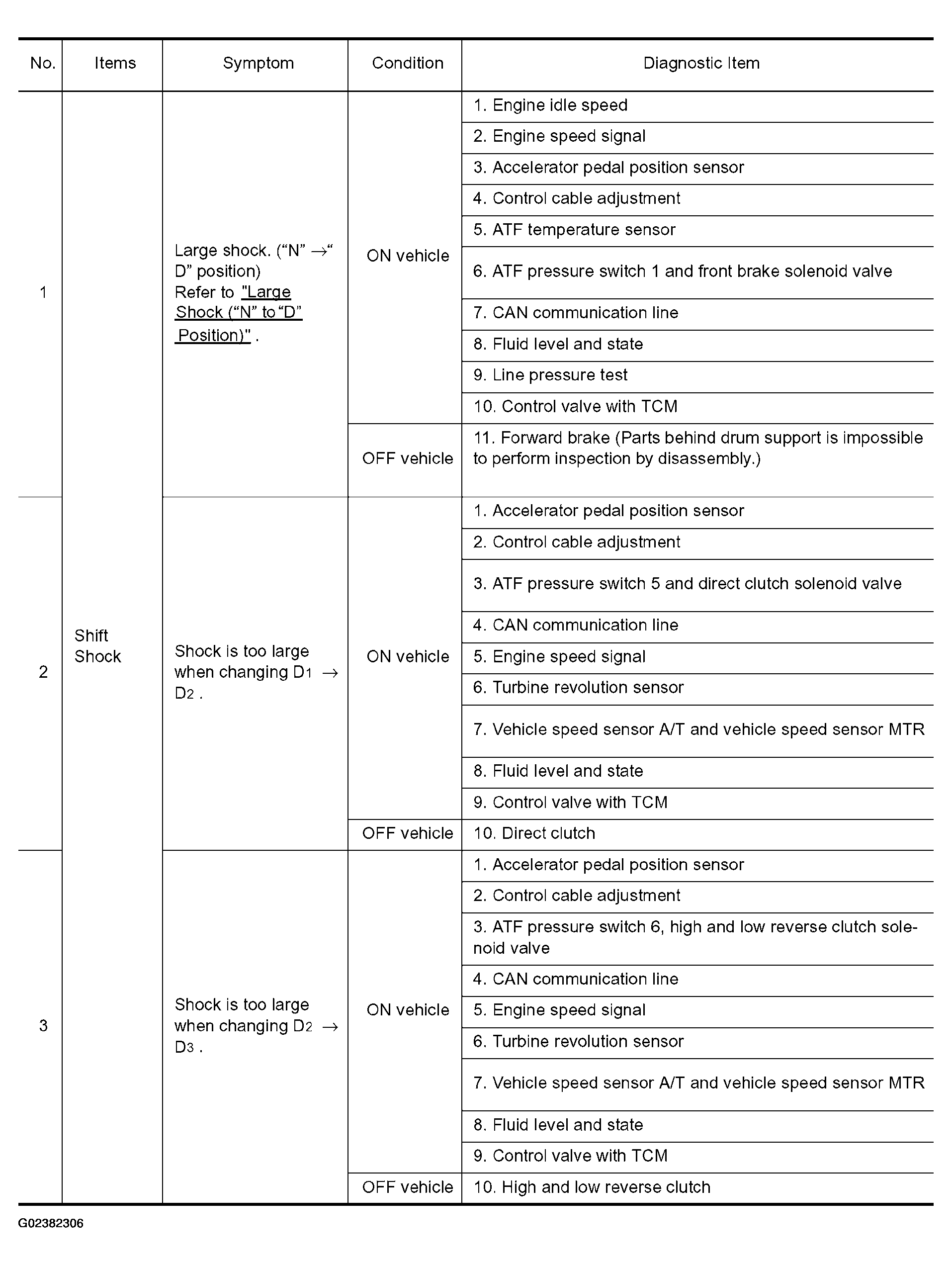

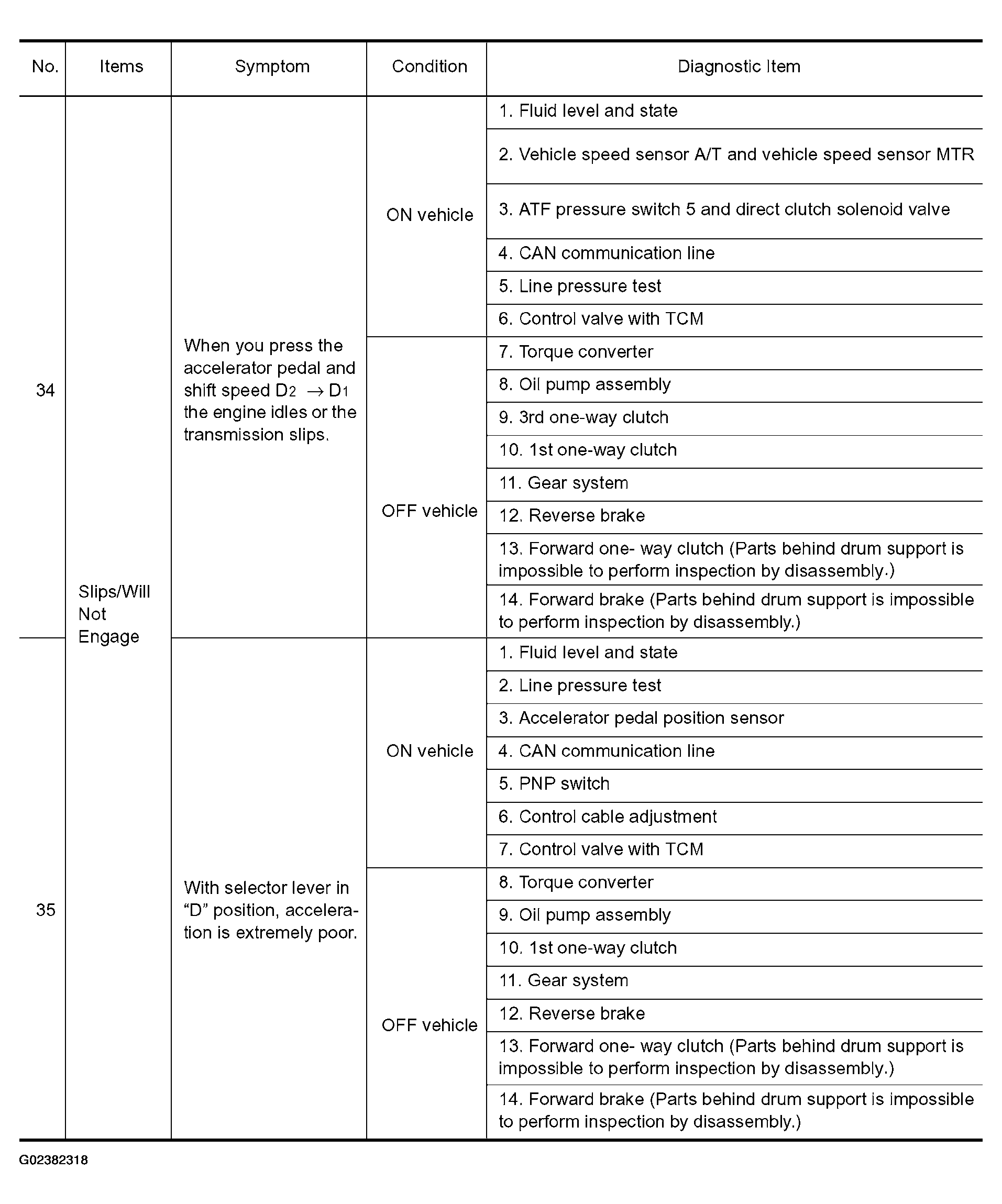

Fig 2: Problem Symptom Chart (2 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

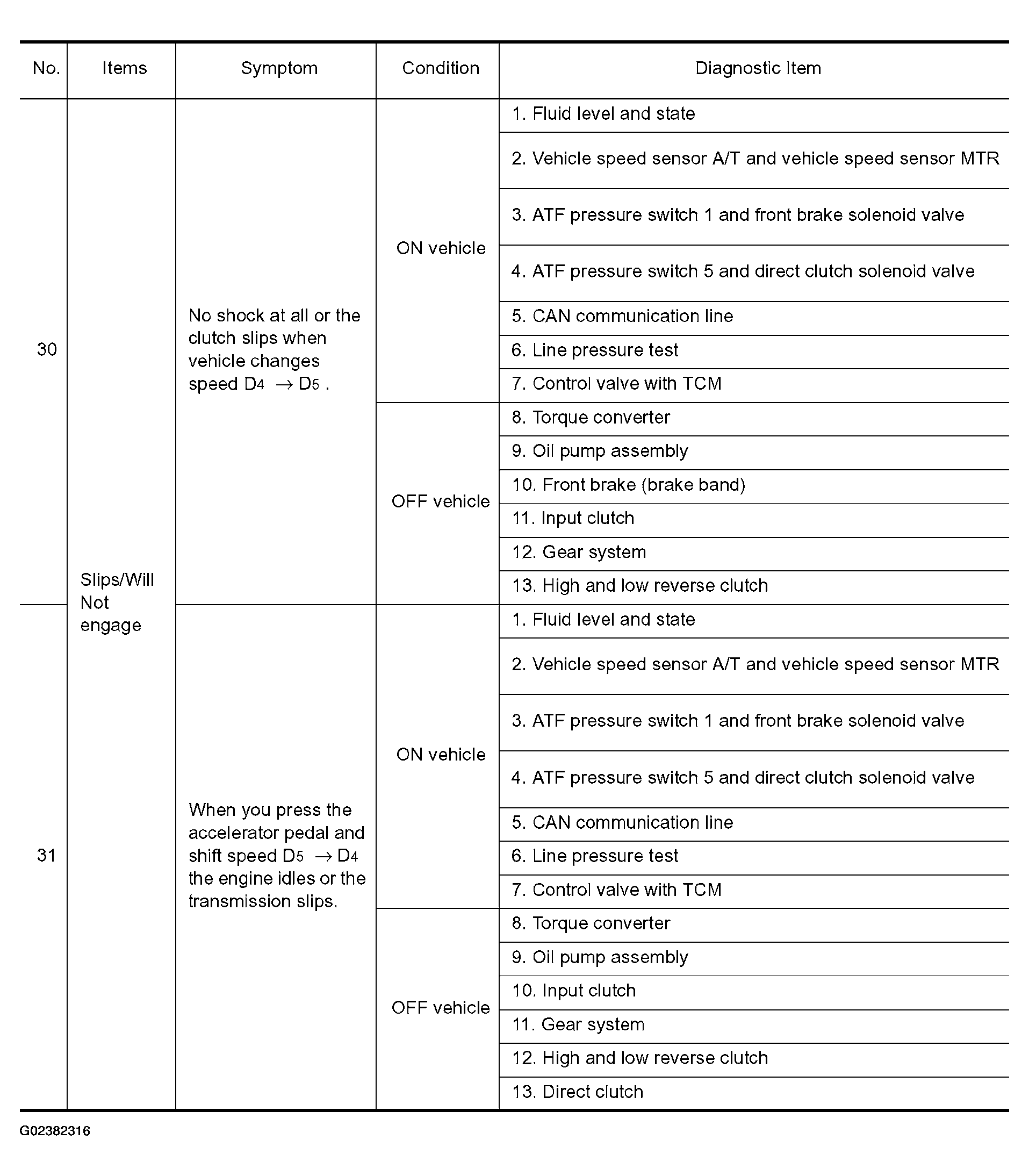

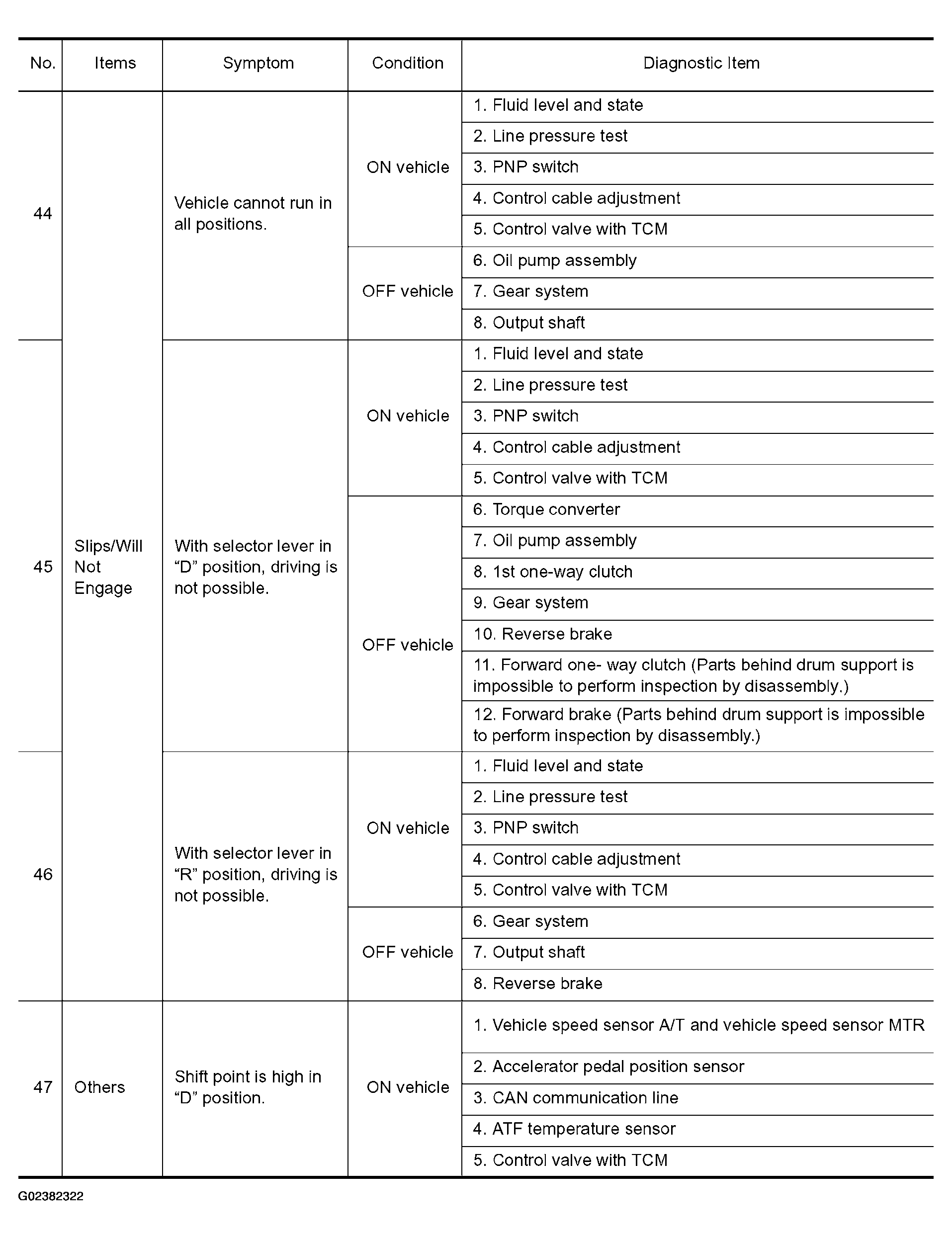

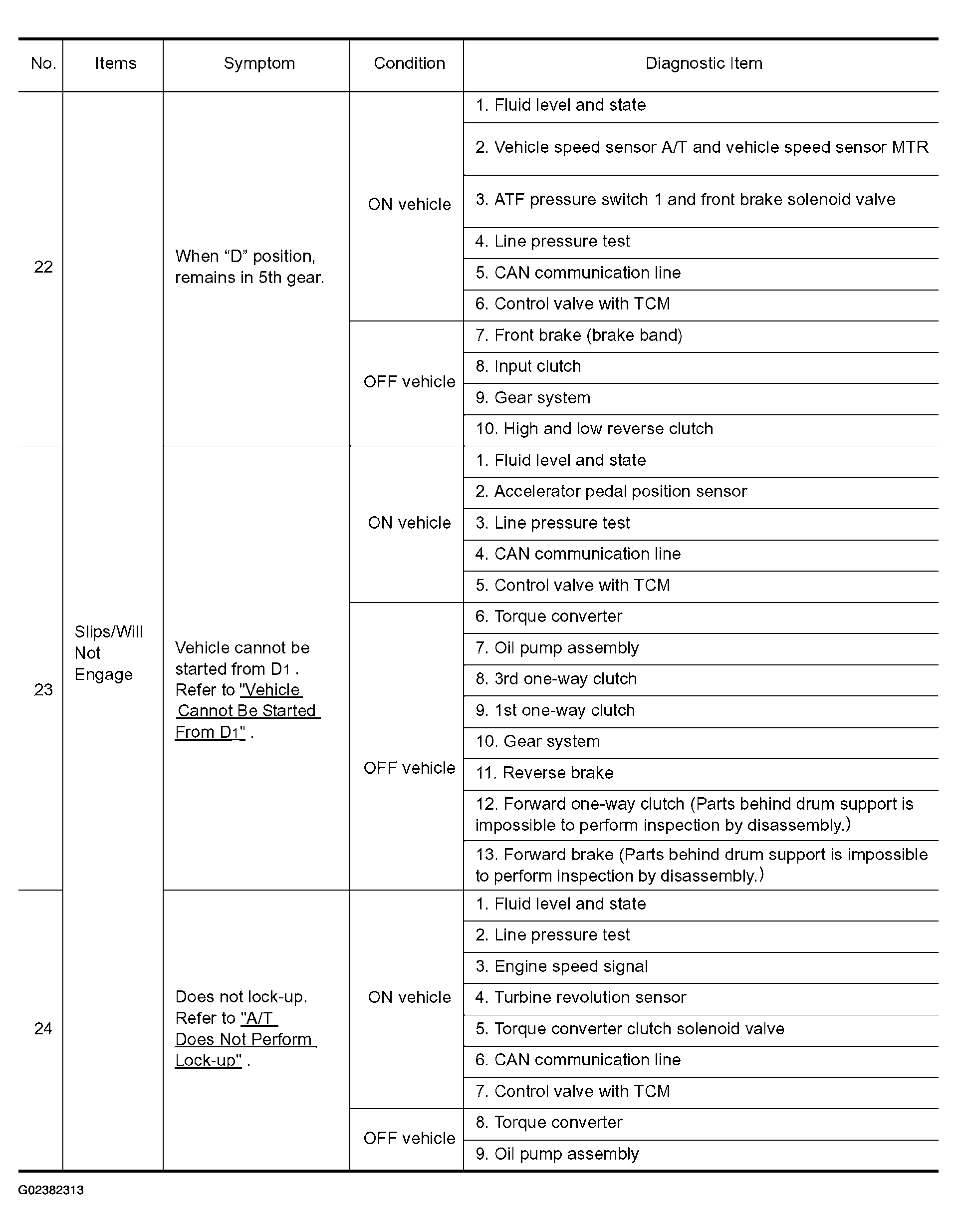

Fig 3: Problem Symptom Chart (3 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

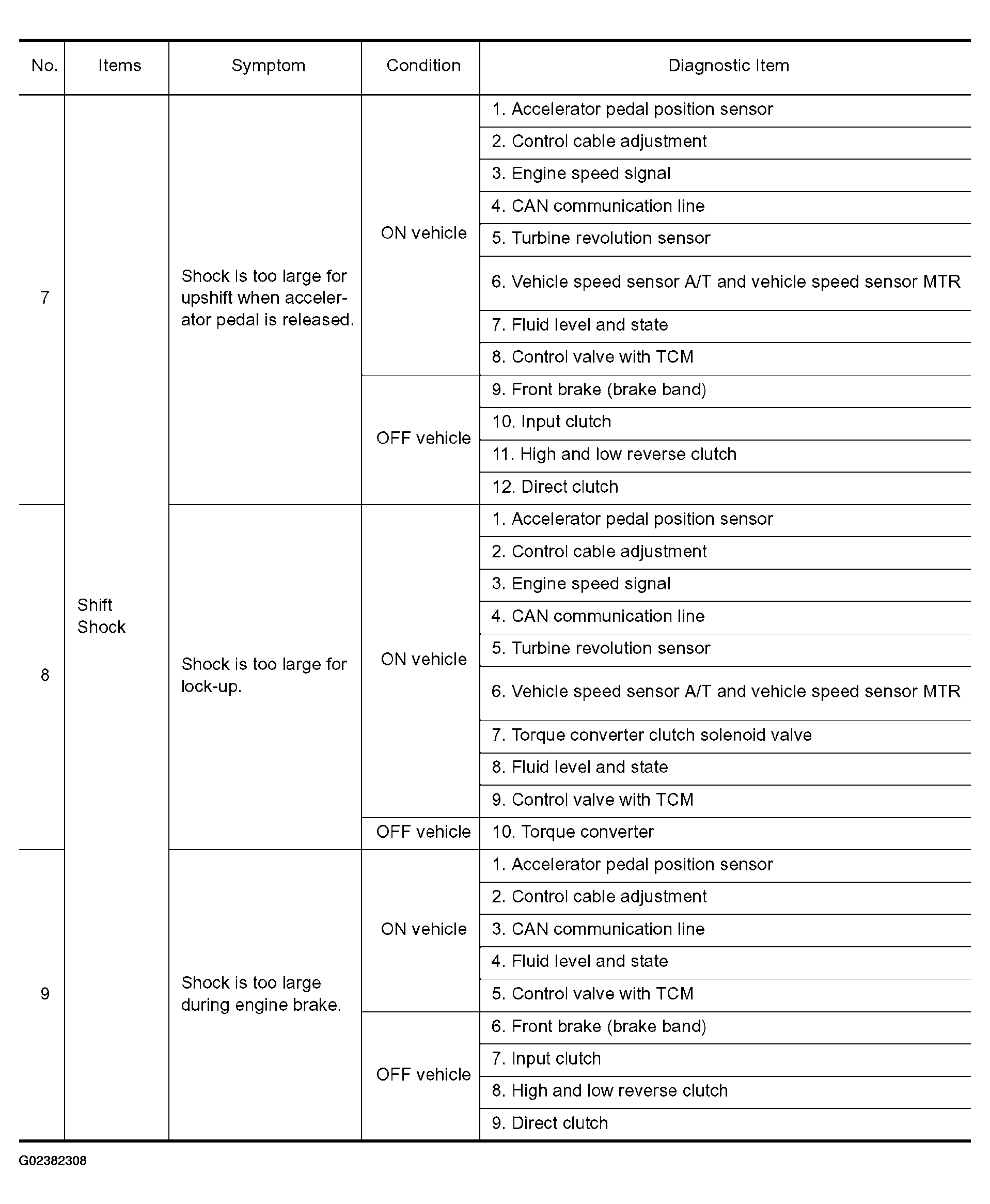

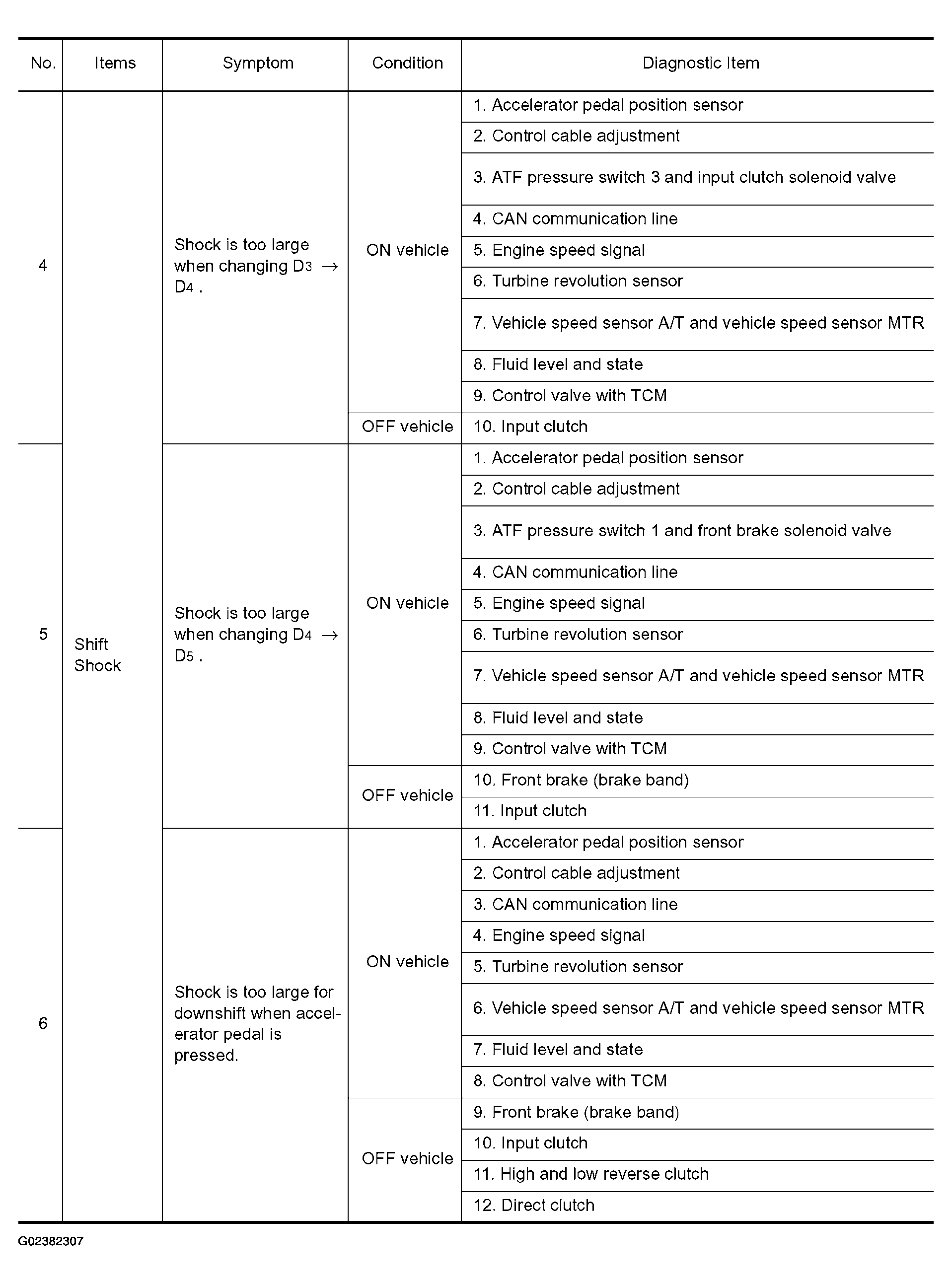

Fig 4: Problem Symptom Chart (4 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

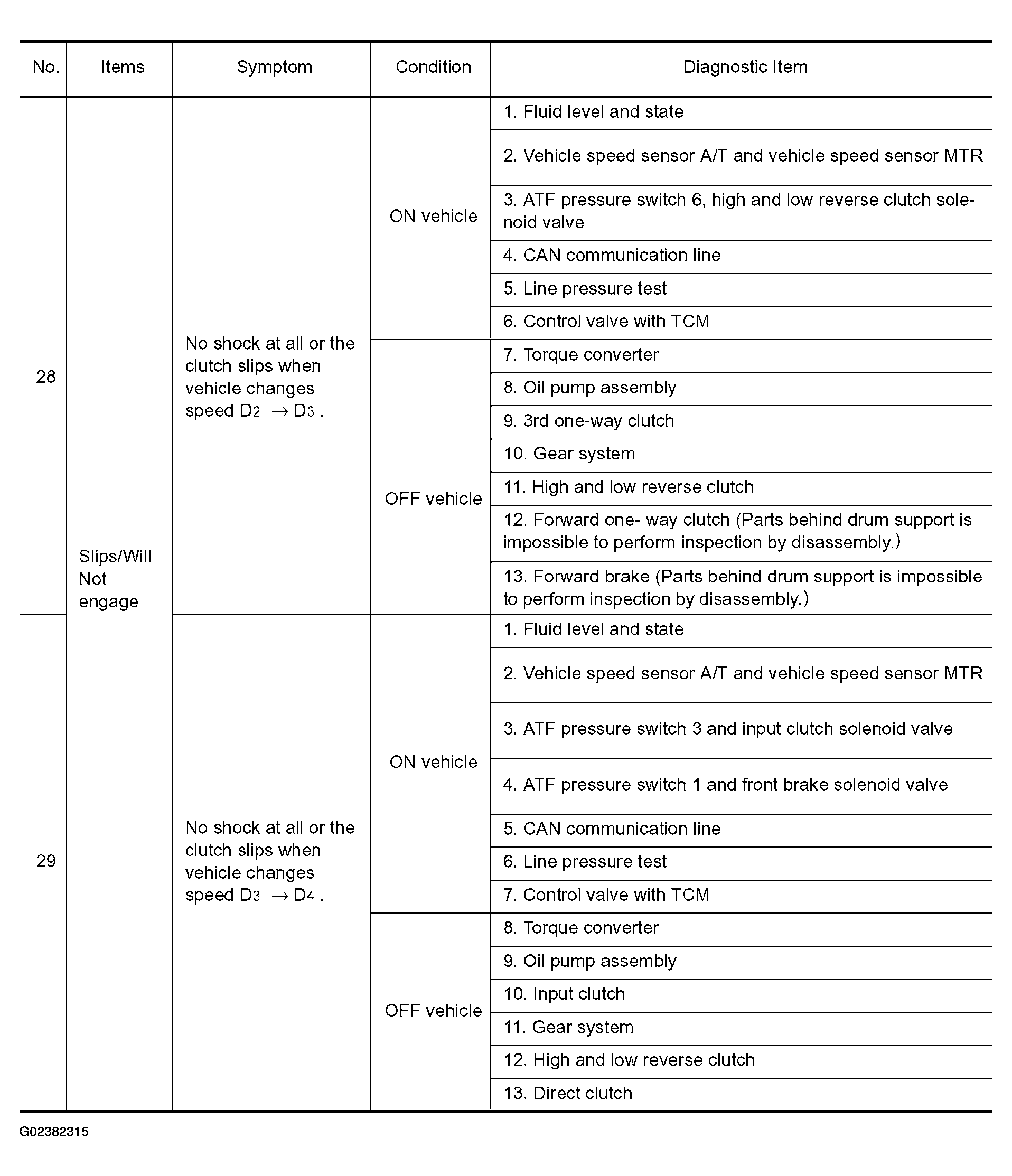

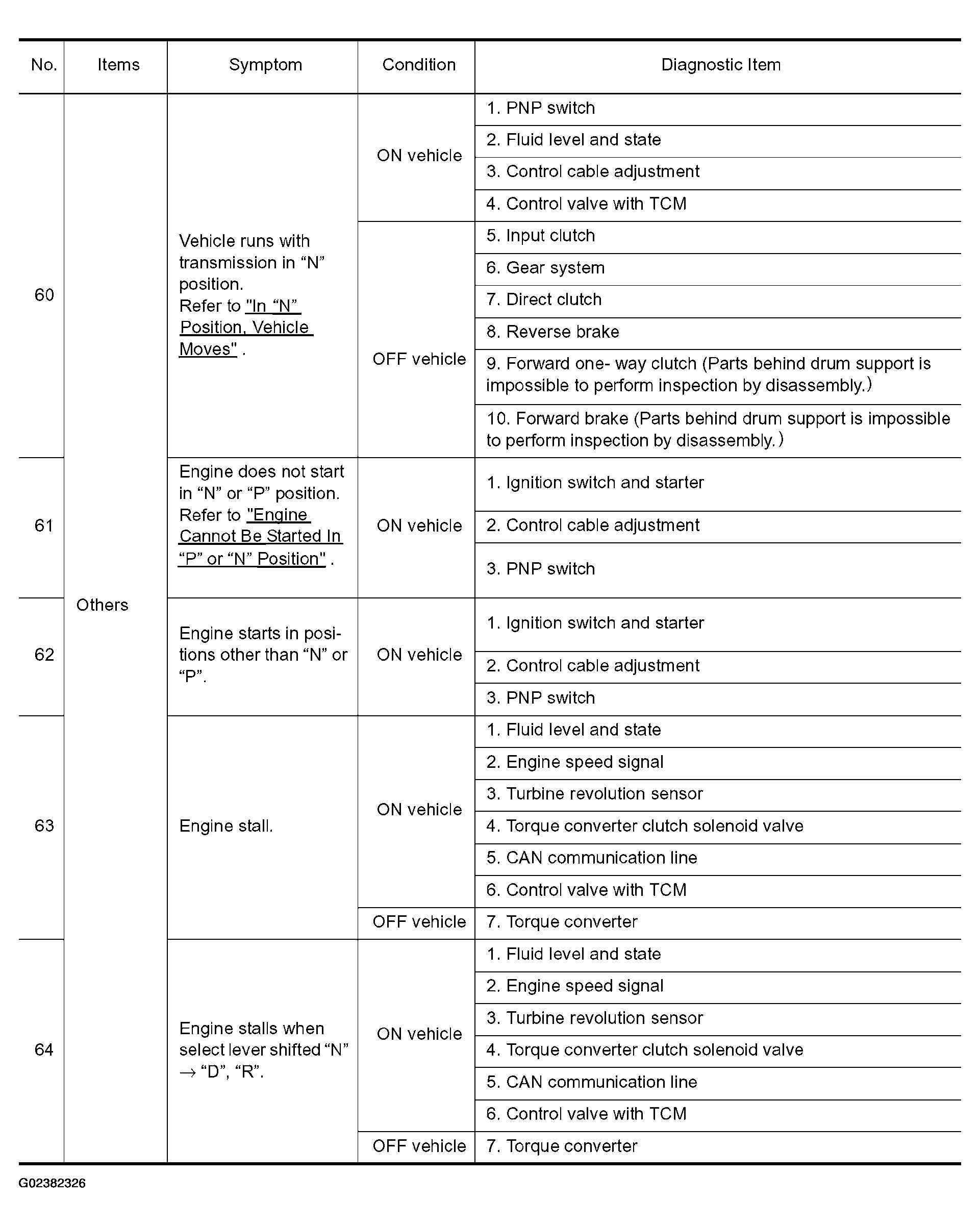

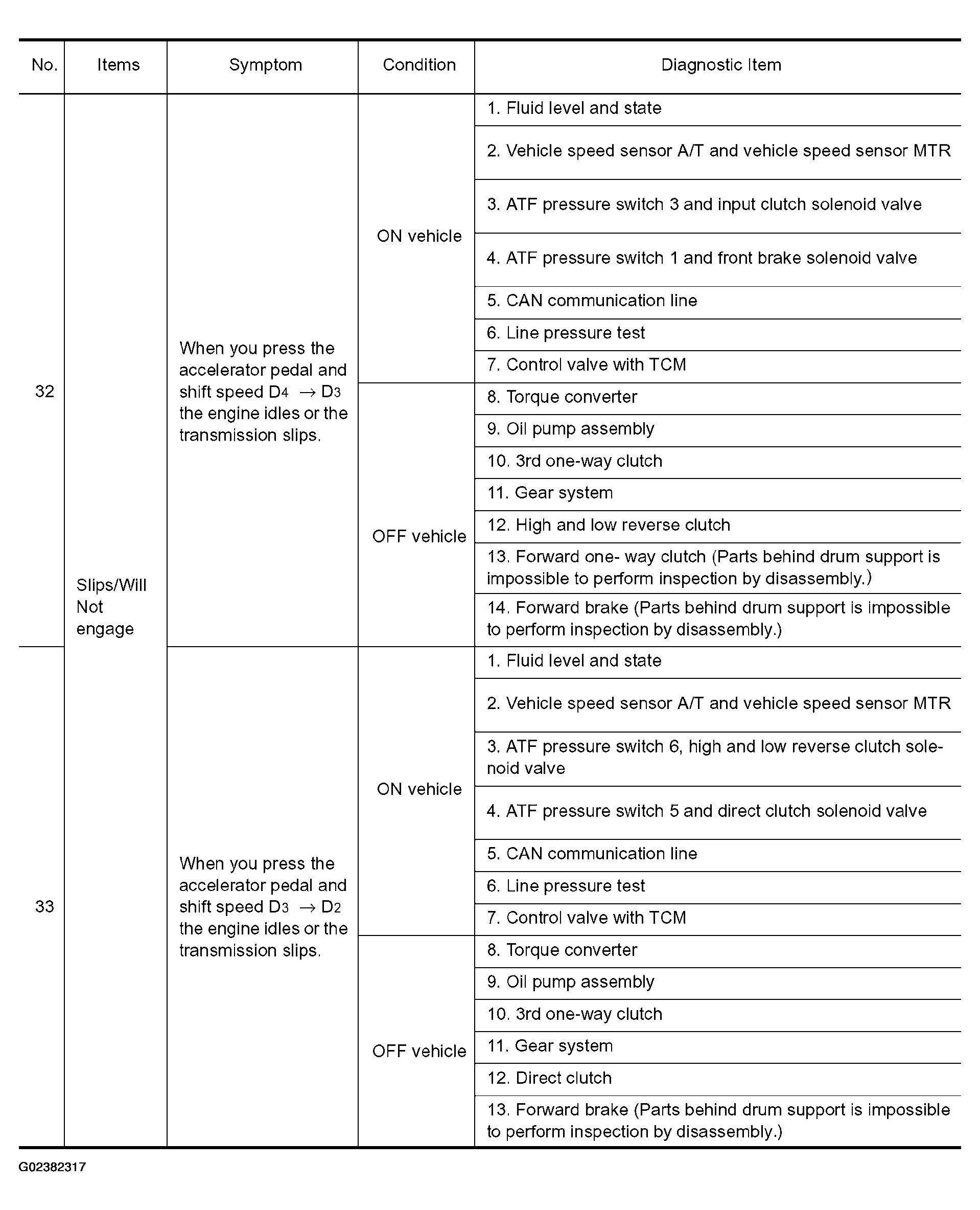

Fig 5: Problem Symptom Chart (5 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

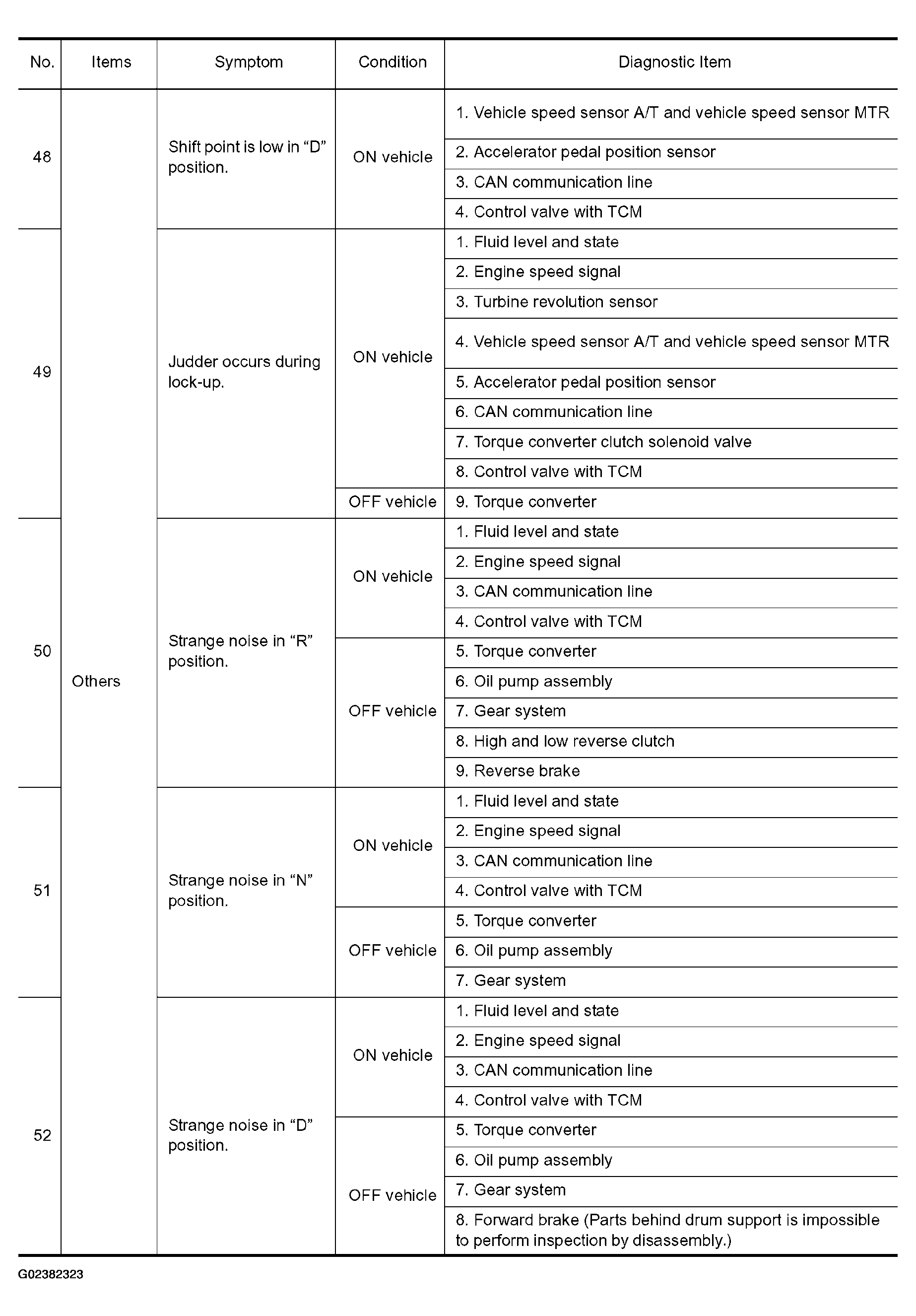

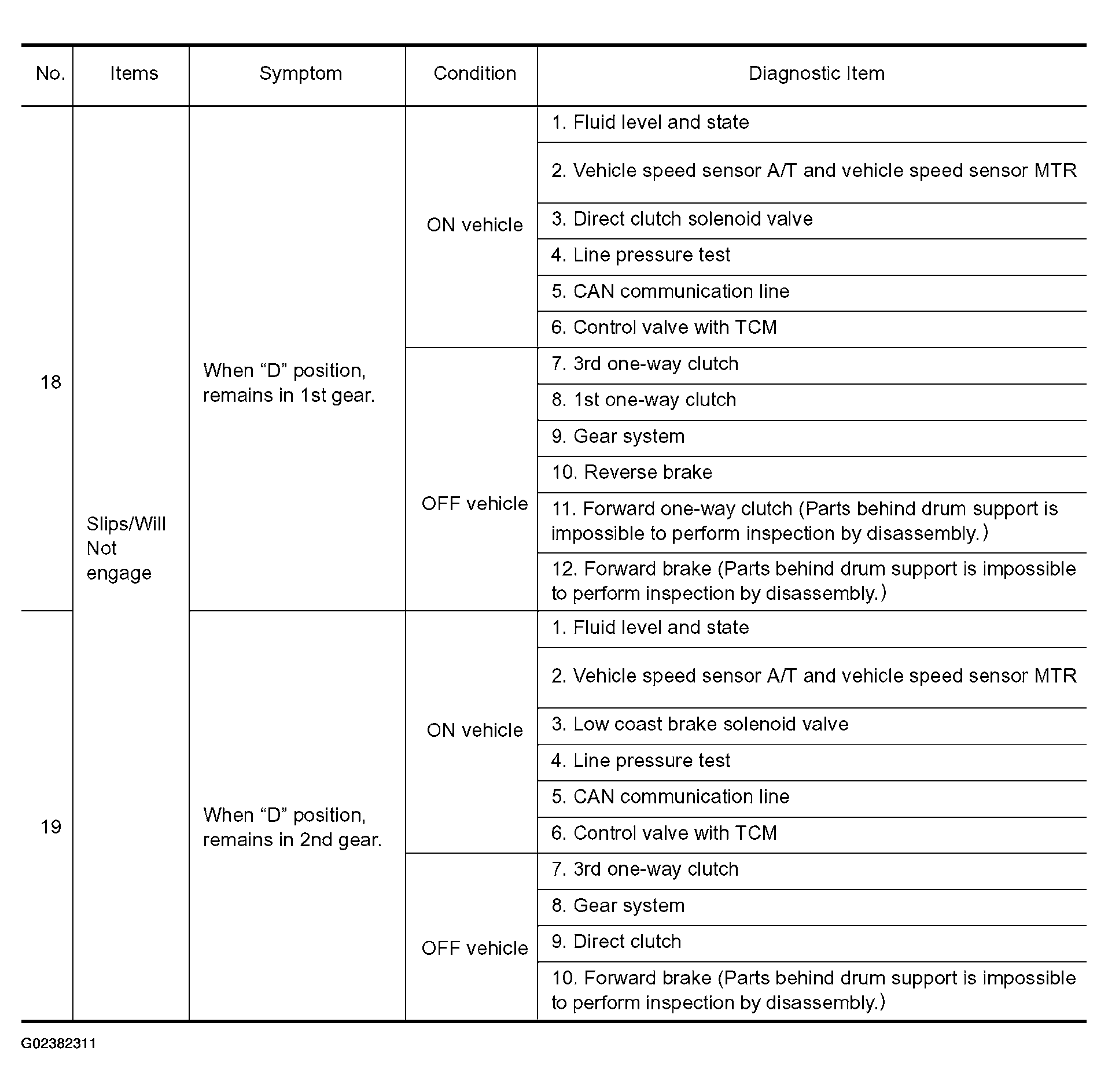

Fig 6: Problem Symptom Chart (6 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

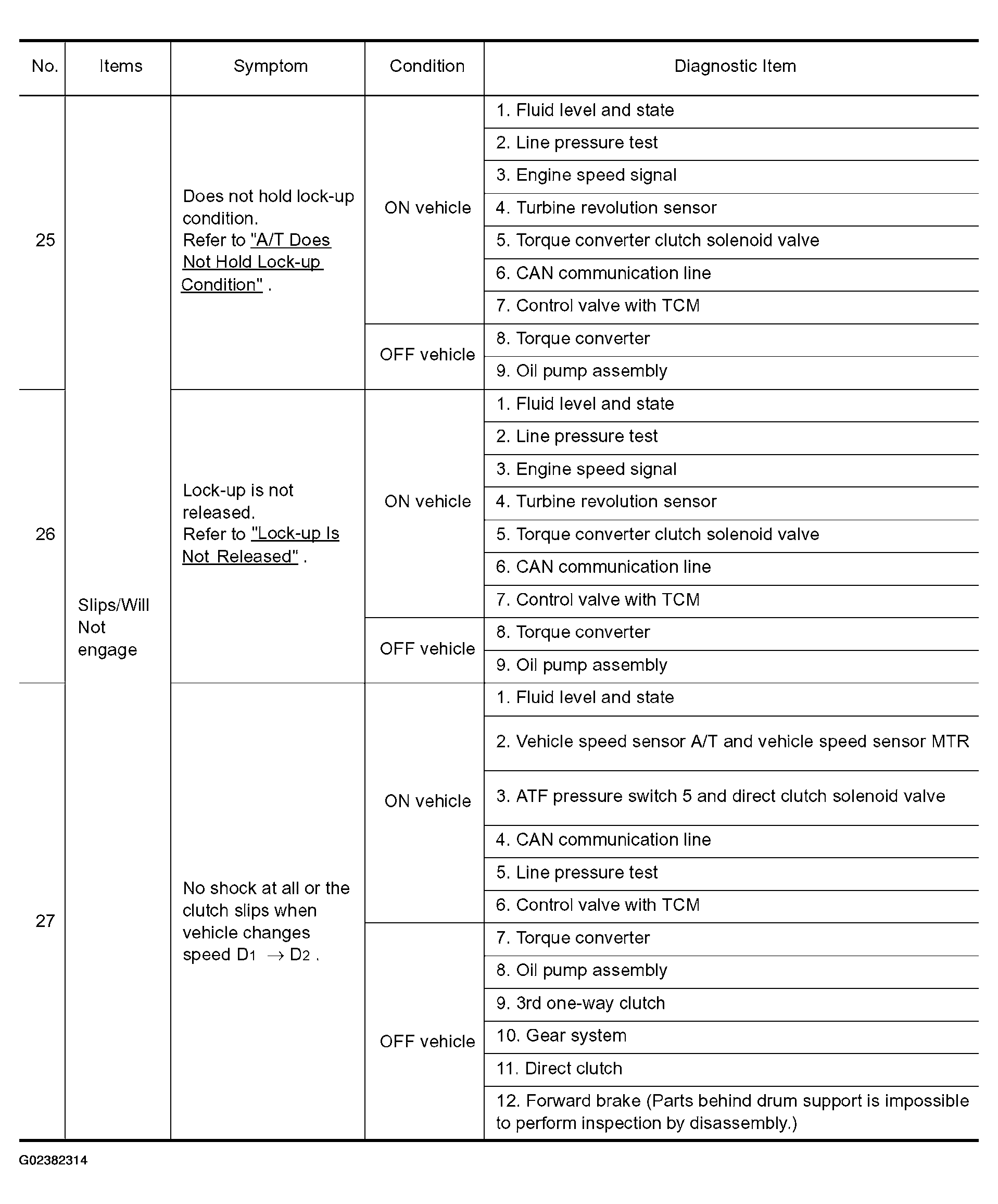

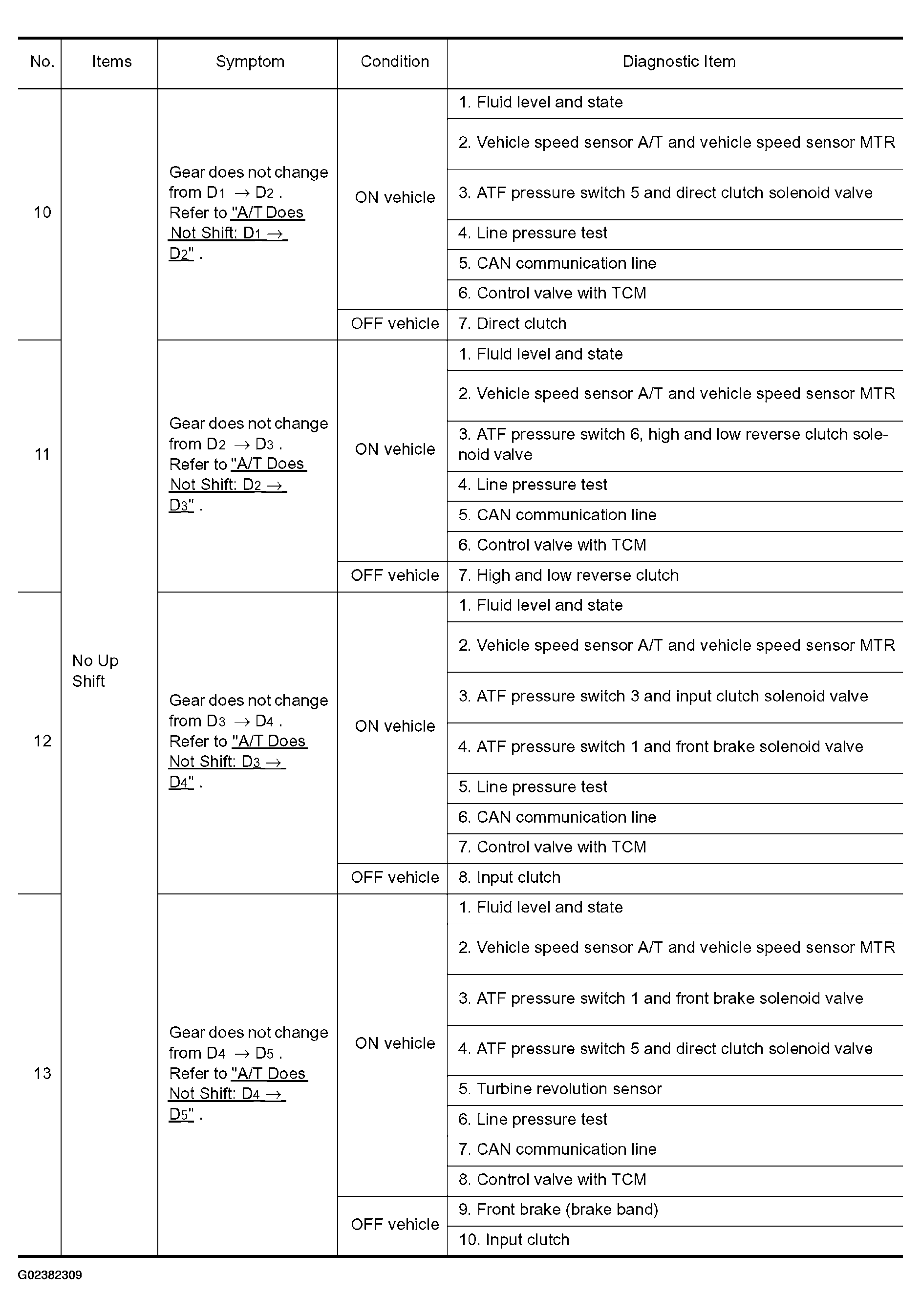

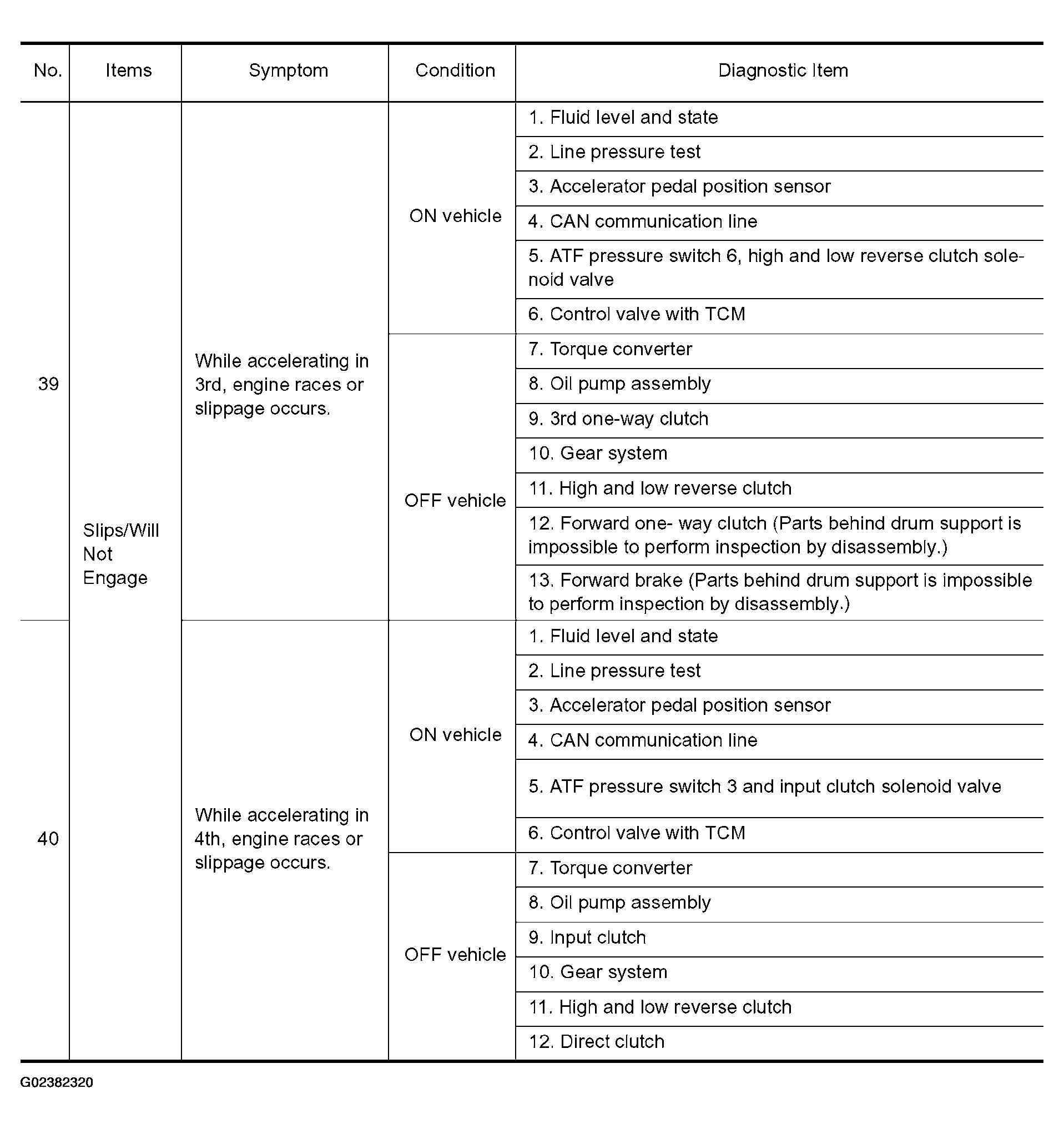

Fig 7: Problem Symptom Chart (7 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

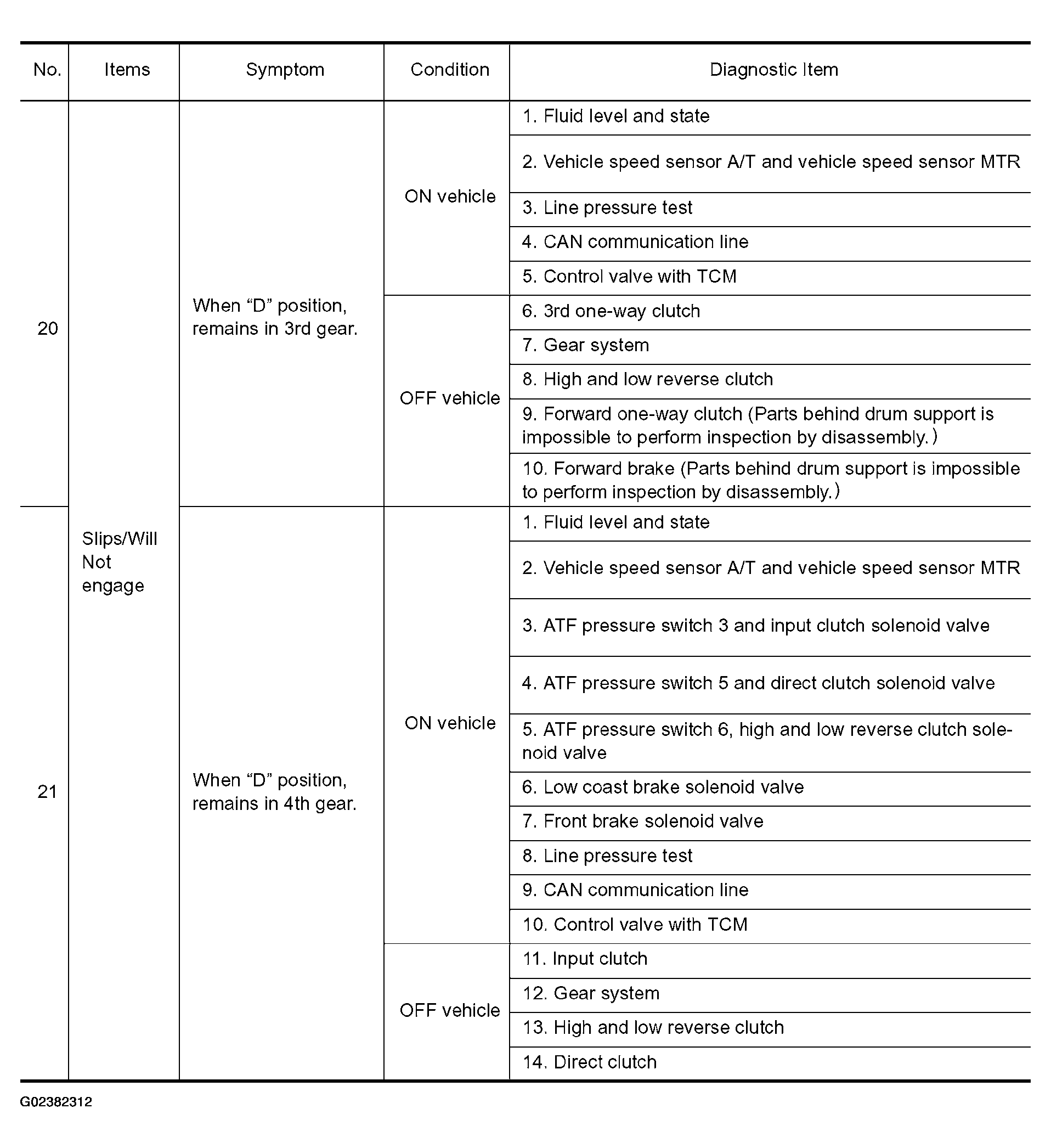

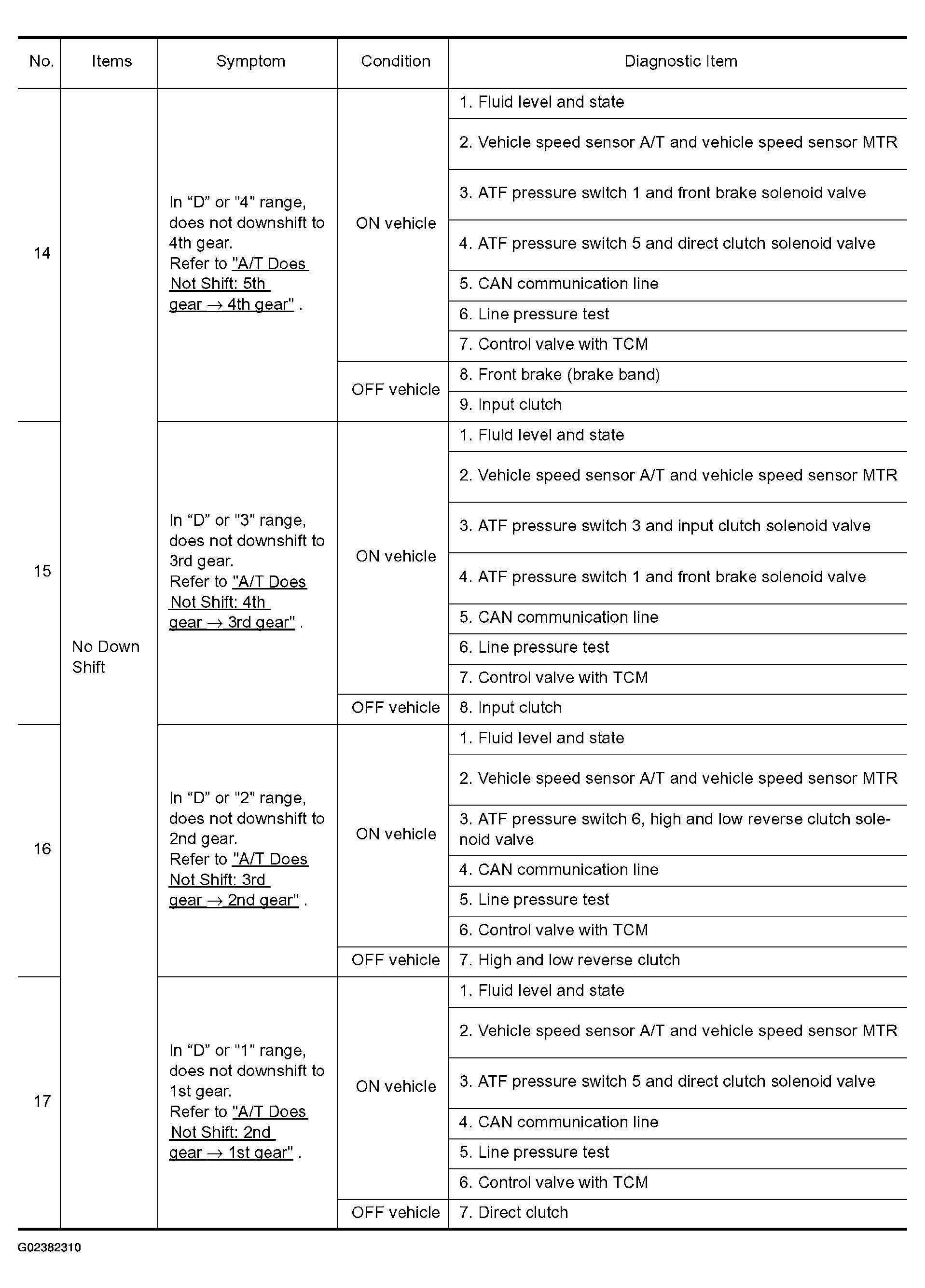

Fig 8: Problem Symptom Chart (8 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Problem Symptom Chart (9 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Problem Symptom Chart (10 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Problem Symptom Chart (11 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Problem Symptom Chart (12 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Problem Symptom Chart (13 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Problem Symptom Chart (14 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Problem Symptom Chart (15 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

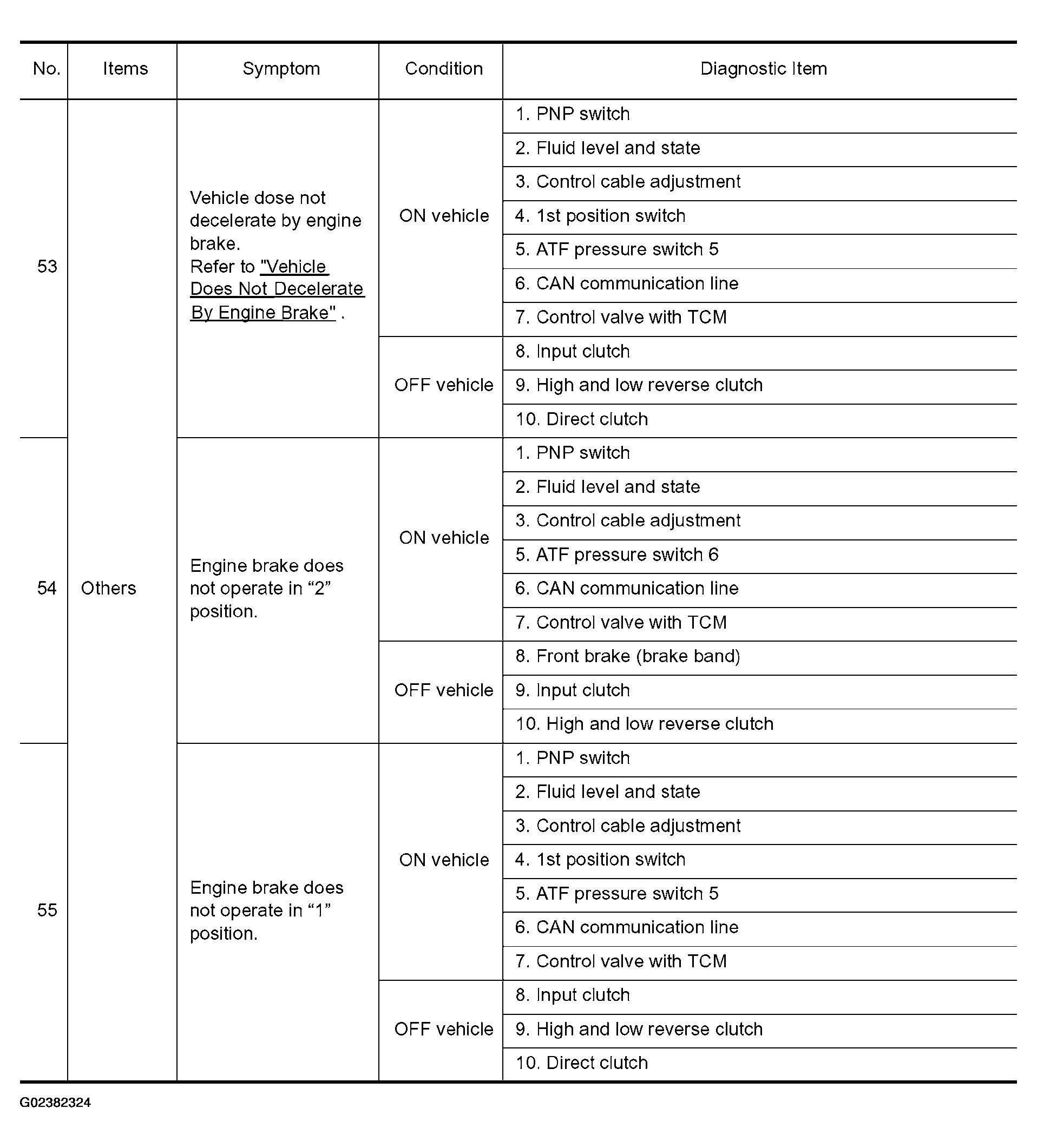

Fig 16: Problem Symptom Chart (16 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Problem Symptom Chart (17 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Problem Symptom Chart (18 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Problem Symptom Chart (19 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Problem Symptom Chart (20 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Problem Symptom Chart (21 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.

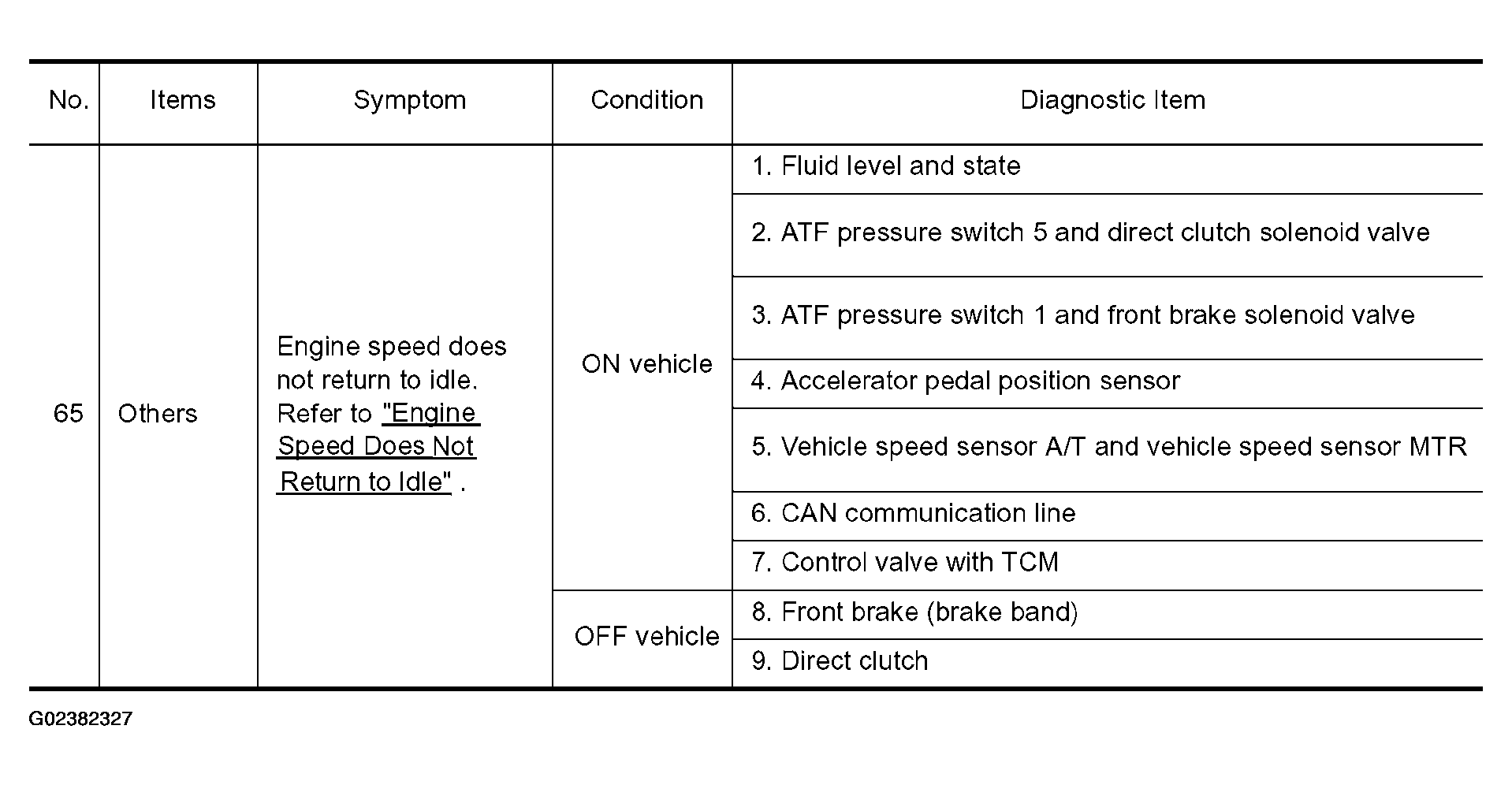

Fig 22: Problem Symptom Chart (22 Of 22)
Courtesy of NISSAN MOTOR CO., U.S.A.
