Oil Pump: Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new O-ring to oil pump cover.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

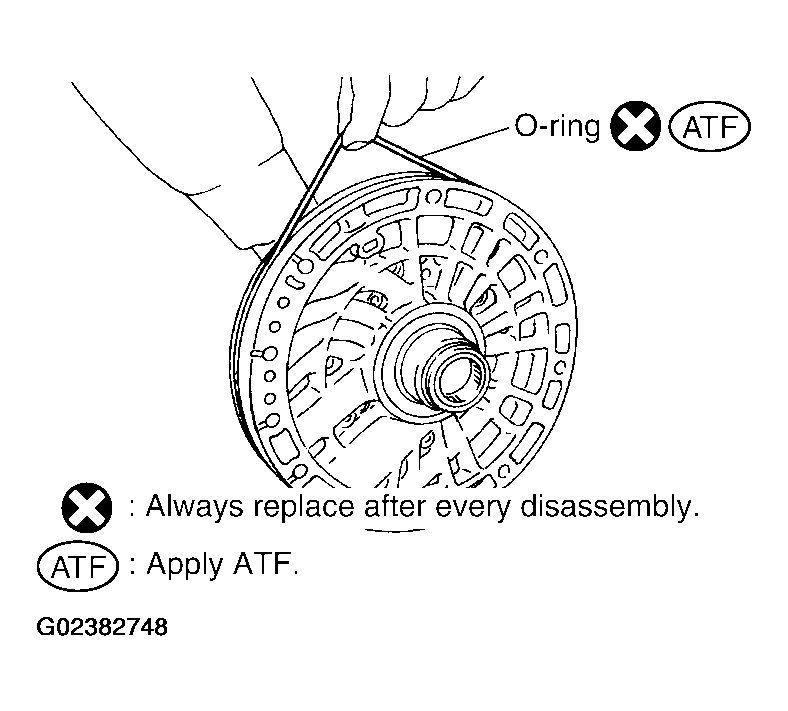

    Fig 1: Installing O-Ring To Oil Pump Cover
    G02382748Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install new O-ring to oil pump housing.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

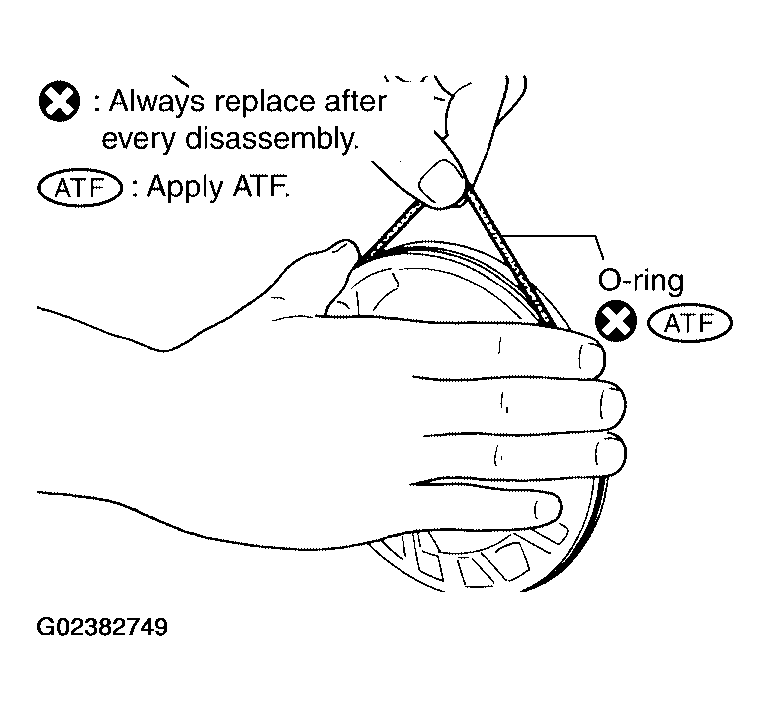

    Fig 2: Installing O-Ring To Oil Pump Housing
    G02382749Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install oil pump housing oil seal to the oil pump housing until it is flush with the face of oil pump housing, using Tool.
    CAUTION:
    • Do not reuse oil seal.
    • Apply ATF to oil seal.
    1. Tool number: ST33400001 (J-26082)

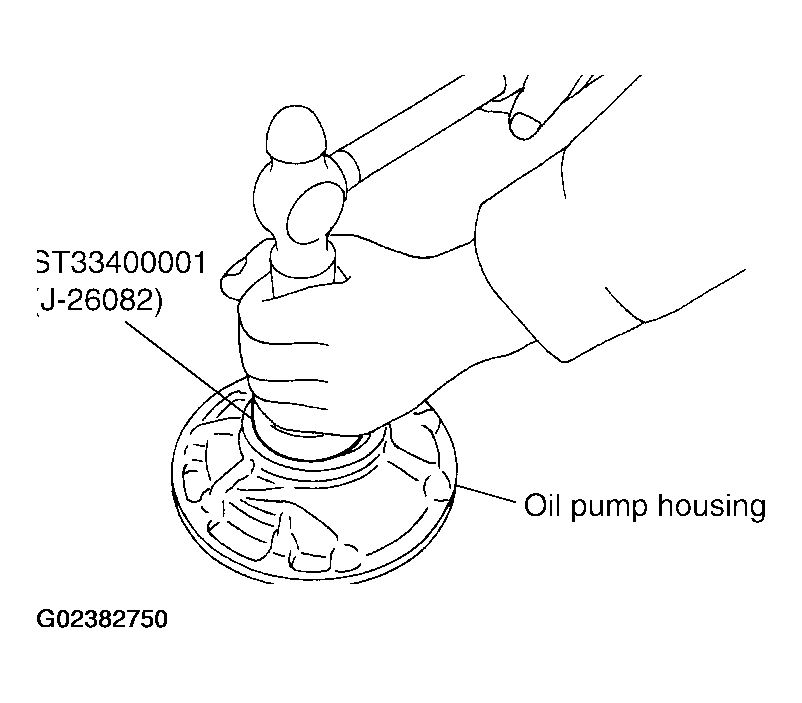

    Fig 3: Installing Oil Pump Housing Oil Seal To Oil Pump Housing
    G02382750Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install oil pump housing in oil pump cover. Tighten oil pump housing bolt to the specified torque. Refer to "COMPONENTS ".

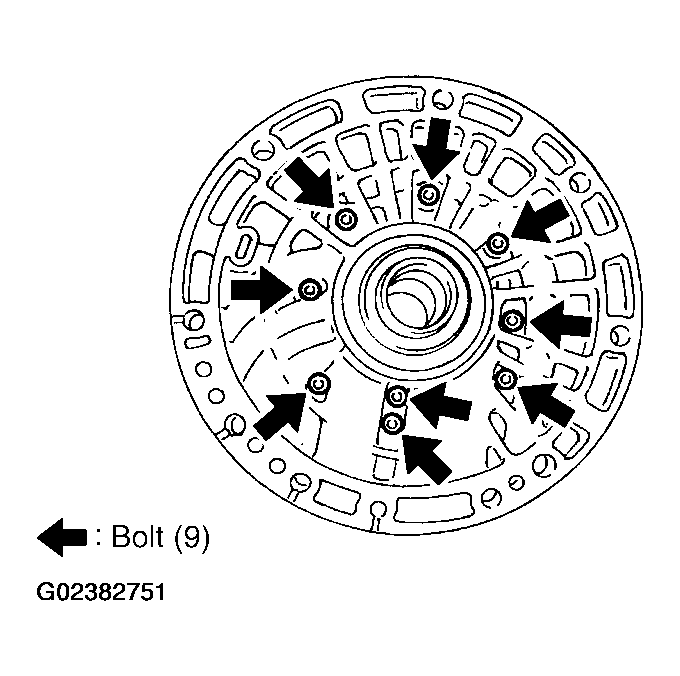

    Fig 4: Installing Oil Pump Housing To Oil Pump Cover
    G02382751Courtesy of NISSAN MOTOR CO., U.S.A.
