WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

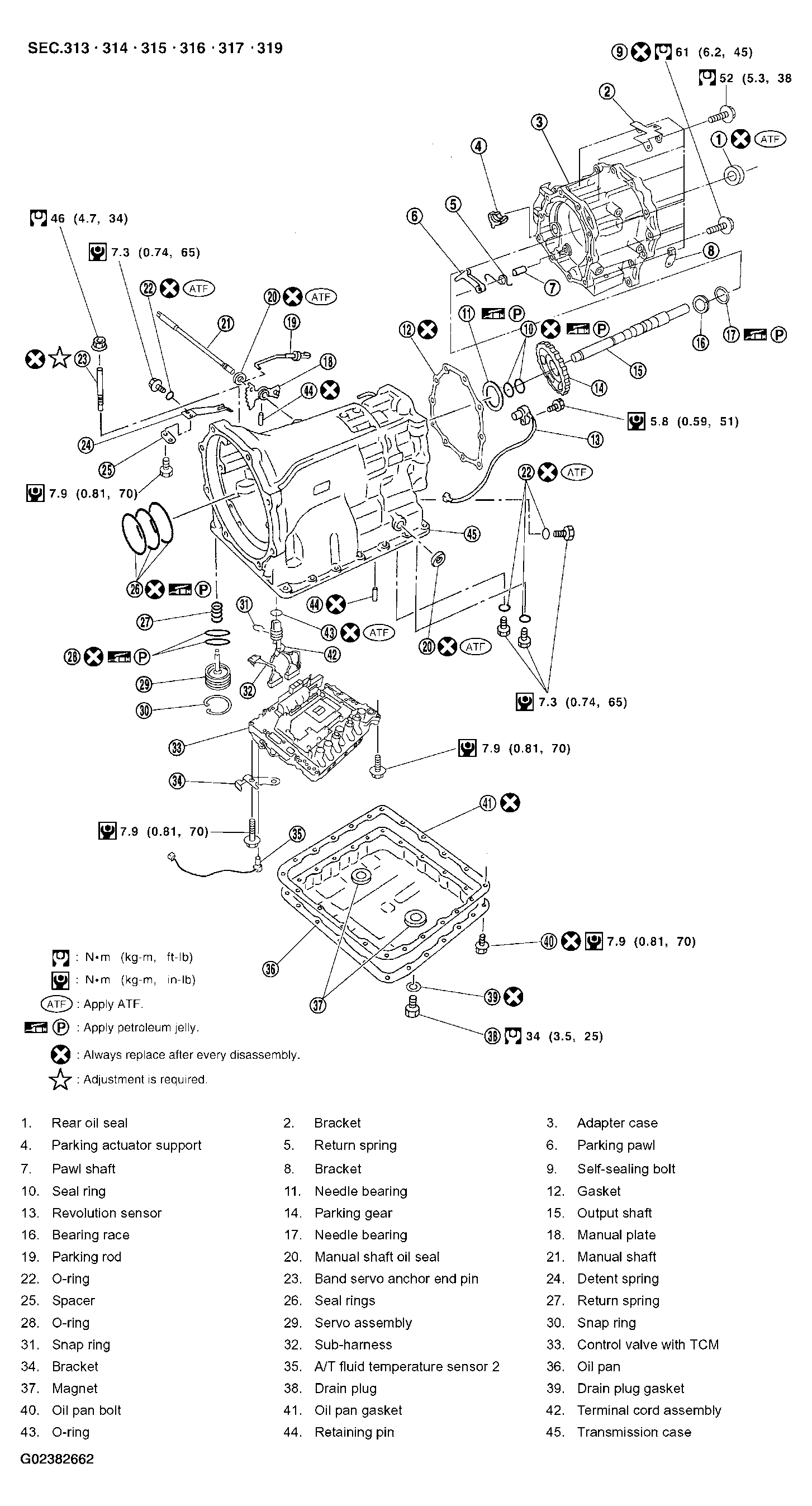

Fig 1: Exploded View Of Transmission Assembly Components - With Torque Specifications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

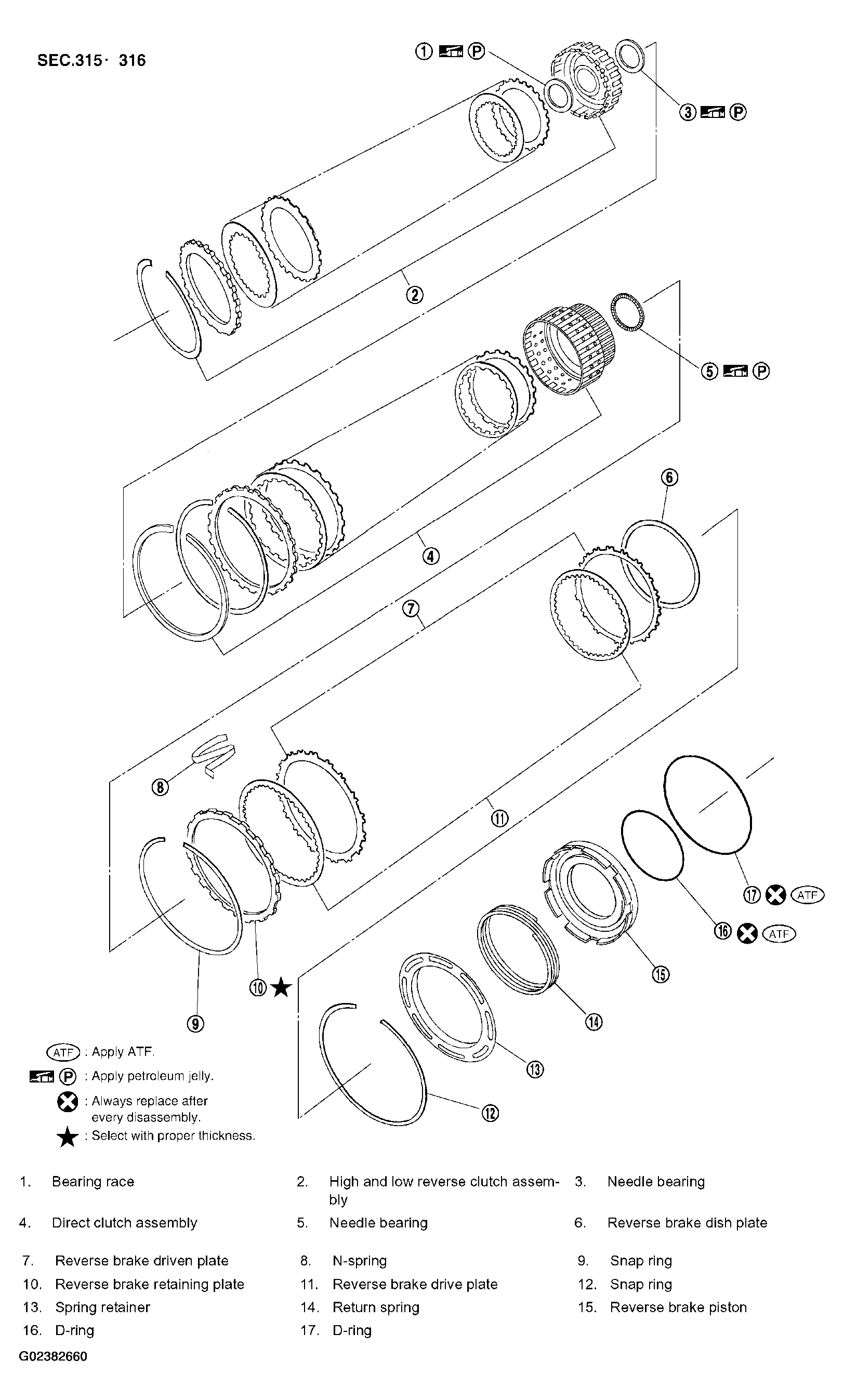

Fig 2: Exploded View Of Transmission Assembly Components (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

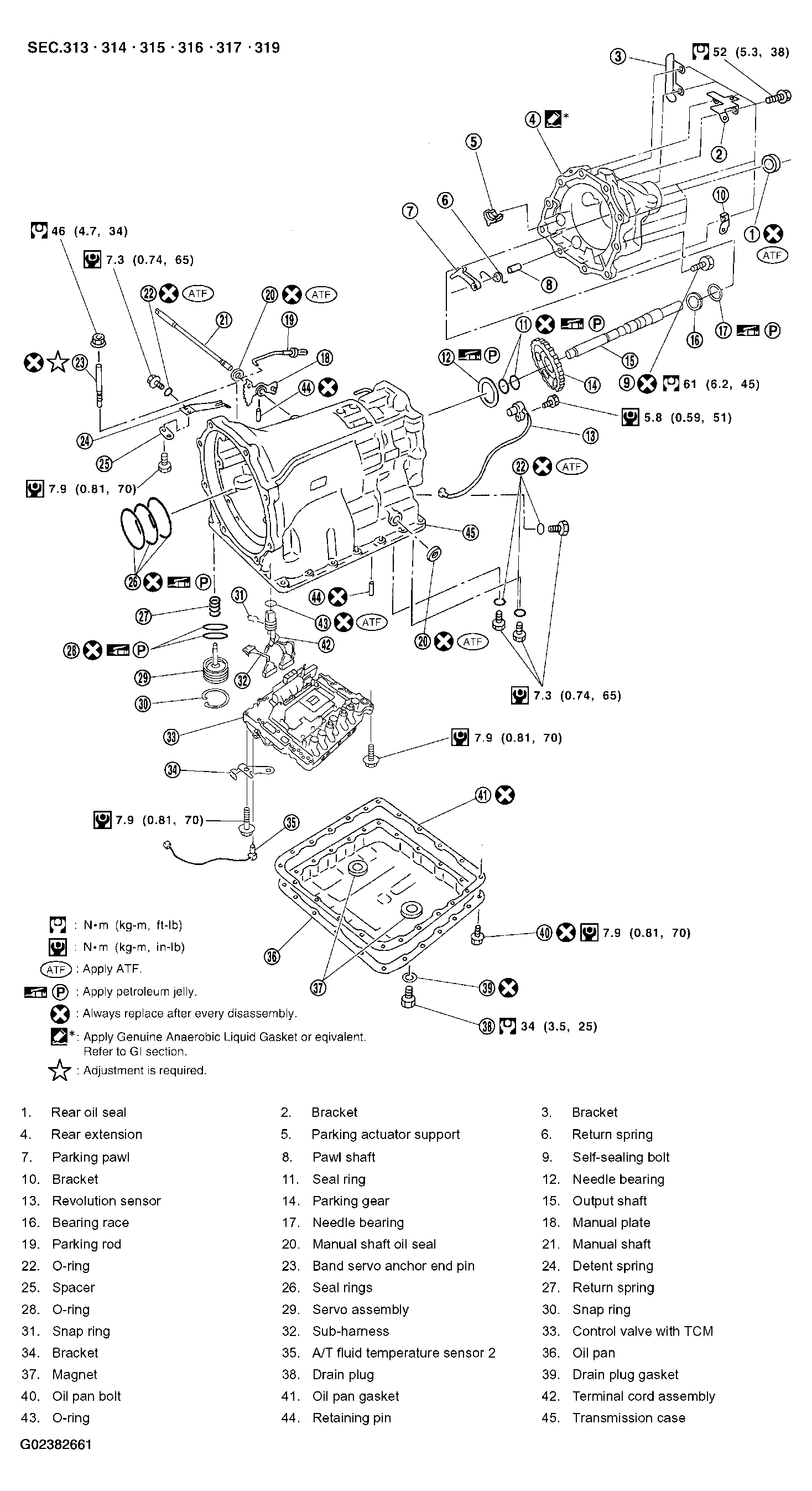

Fig 3: Exploded View Of Transmission Assembly Components - 2WD Models - With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Exploded View Of Transmission Assembly Components - 4WD Models - With Torque Specifications
