Check Power Supply And Ground Circuit

CHECK FUSES OR FUSIBLE LINK
- Check for blown-out fuses or fusible link.

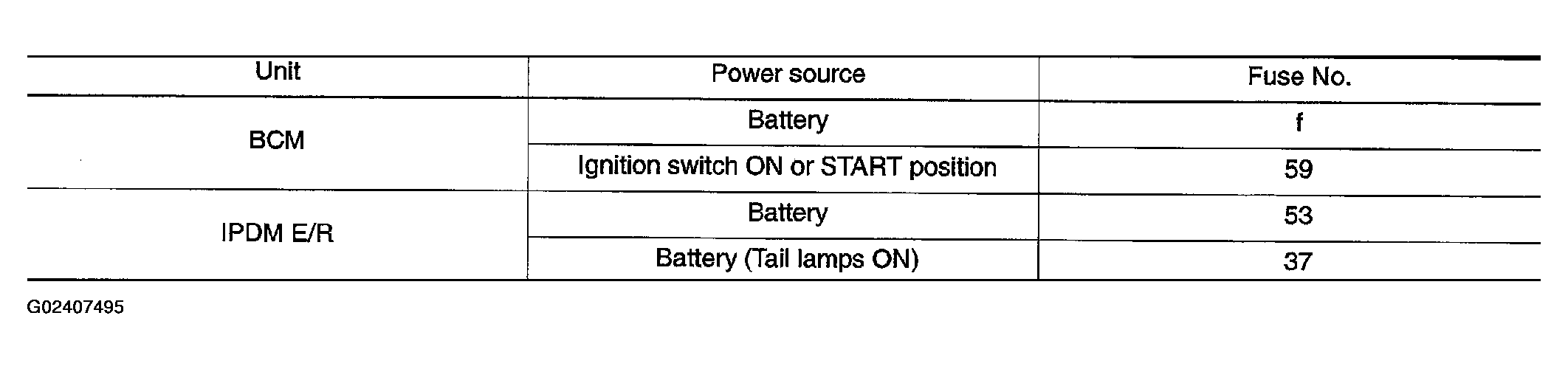

  Fig 1: Fuse Identification Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to WIRING DIAGRAM - TAIL/L - .

OK or NG
1. OK: GO TO 2.
2. NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to POWER DISTRIBUTION .
CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connector.
2. Check voltage between BCM harness connector and ground.

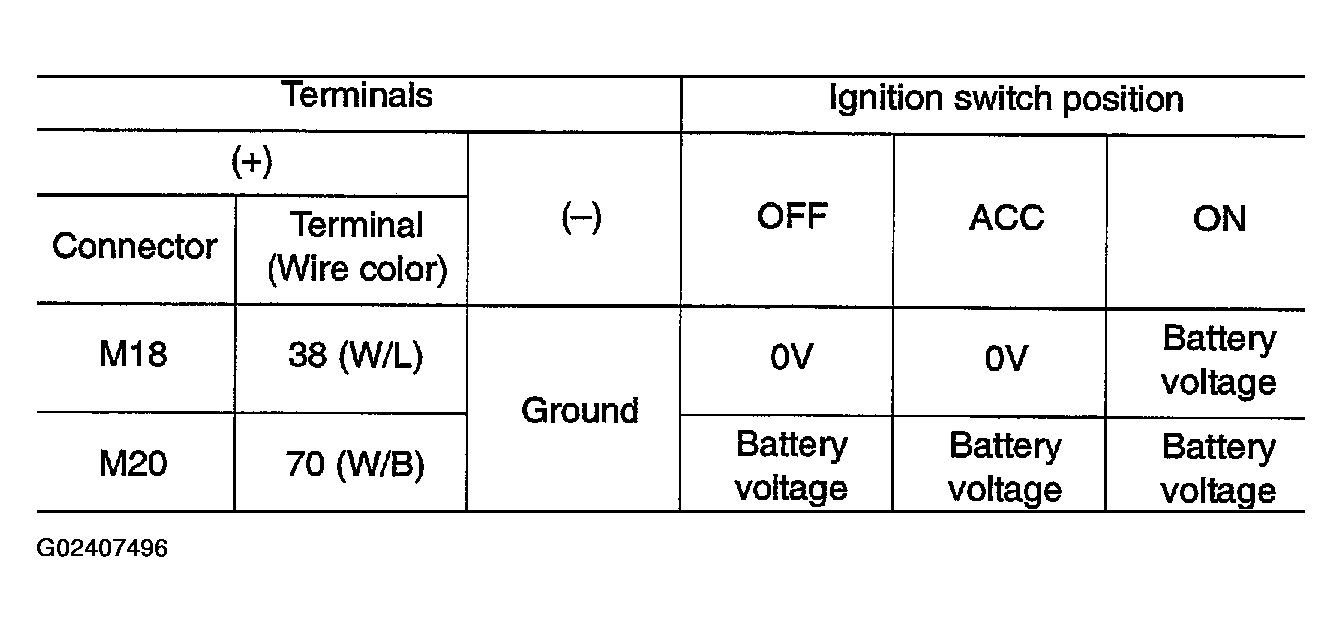

  Fig 2: Terminal Specification Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

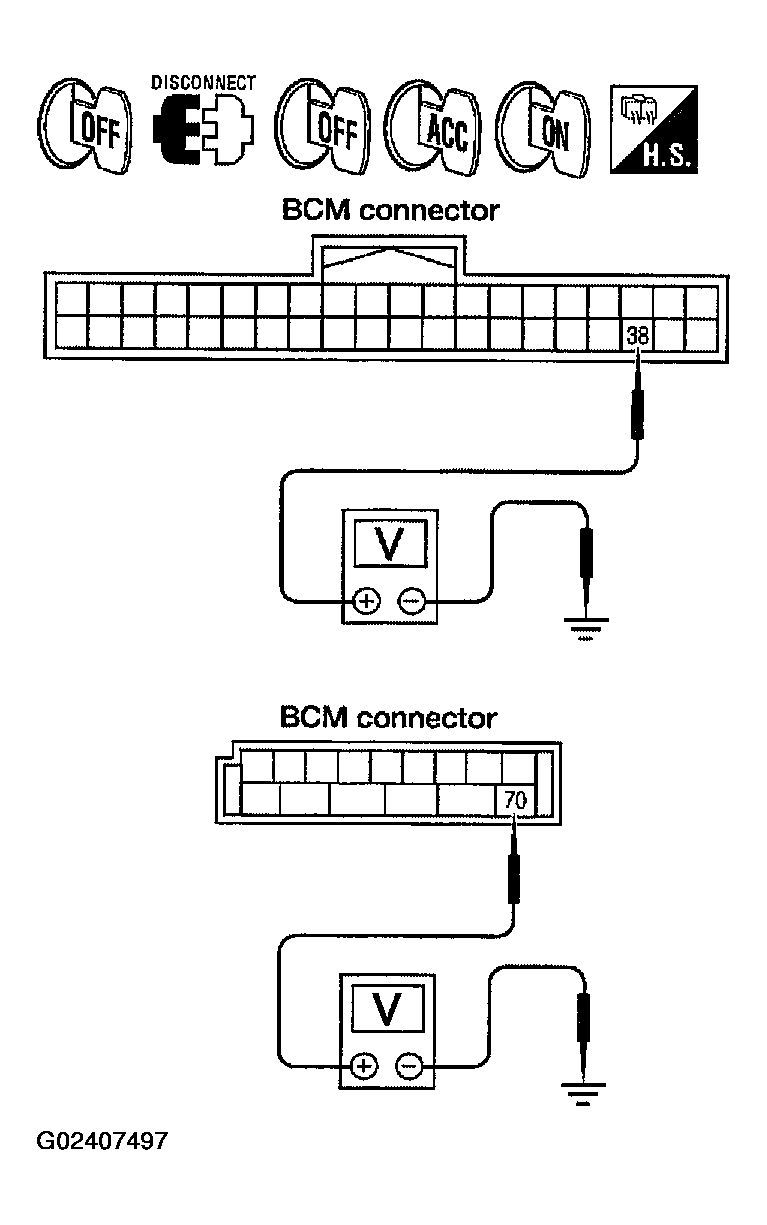

  Fig 3: Checking Voltage Between BCM Harness Connector & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 3.
2. NG: Check harness for open between BCM and fuse or fusible link.
CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.

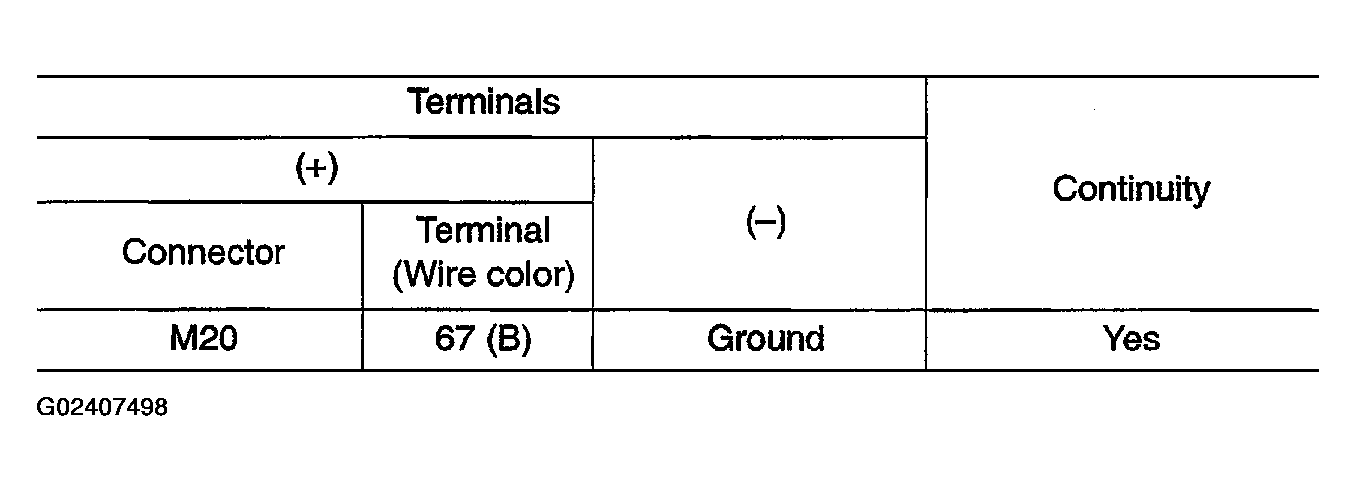

Fig 4: Terminal Continuity Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

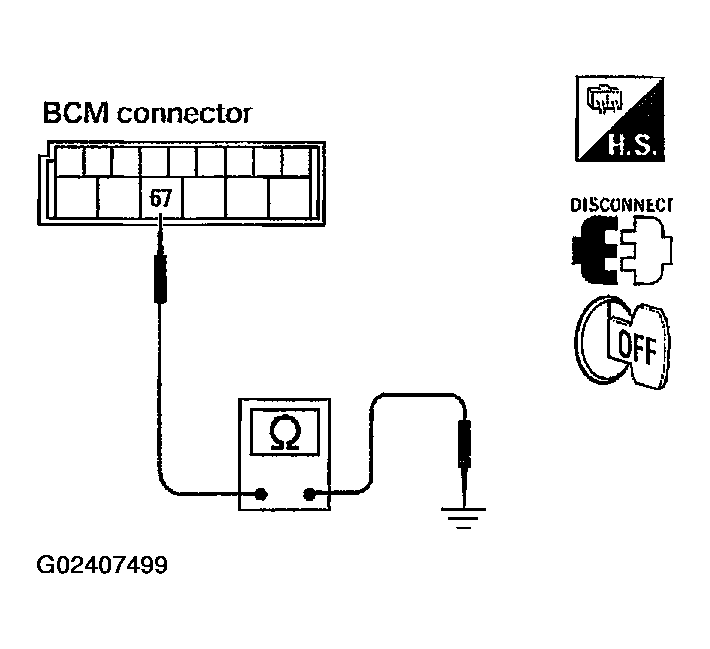

Fig 5: Checking Ground Circuit BCM Harness Connector & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: INSPECTION END.
2. NG: Check ground circuit harness.
