Wiring Diagram - Tail/L

NOTE: For references to PG-POWER, see POWER DISTRIBUTION .

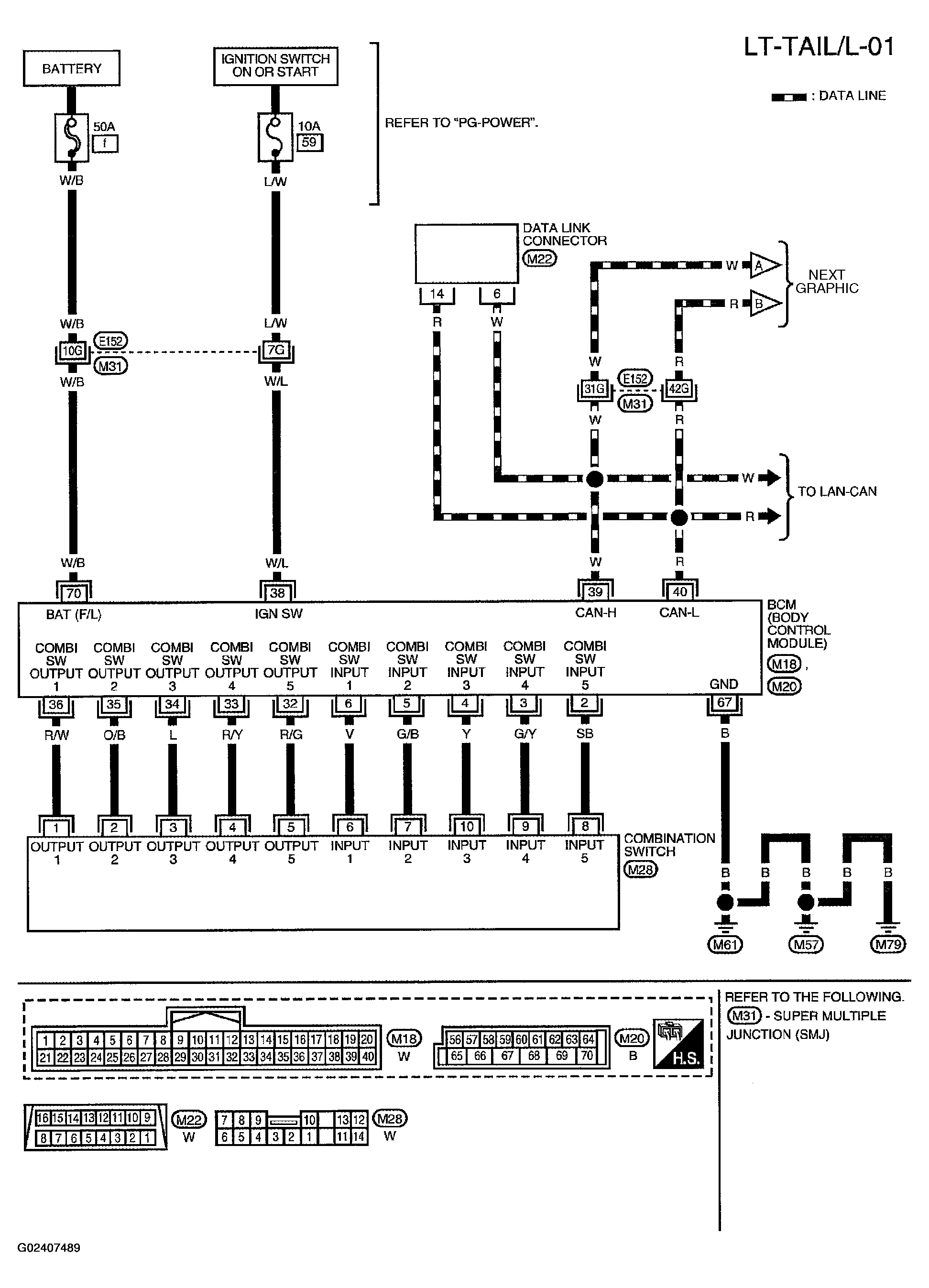

Fig 1: Wiring Diagram - LT-TAIL/L-01
G02407489Courtesy of NISSAN MOTOR CO., U.S.A.

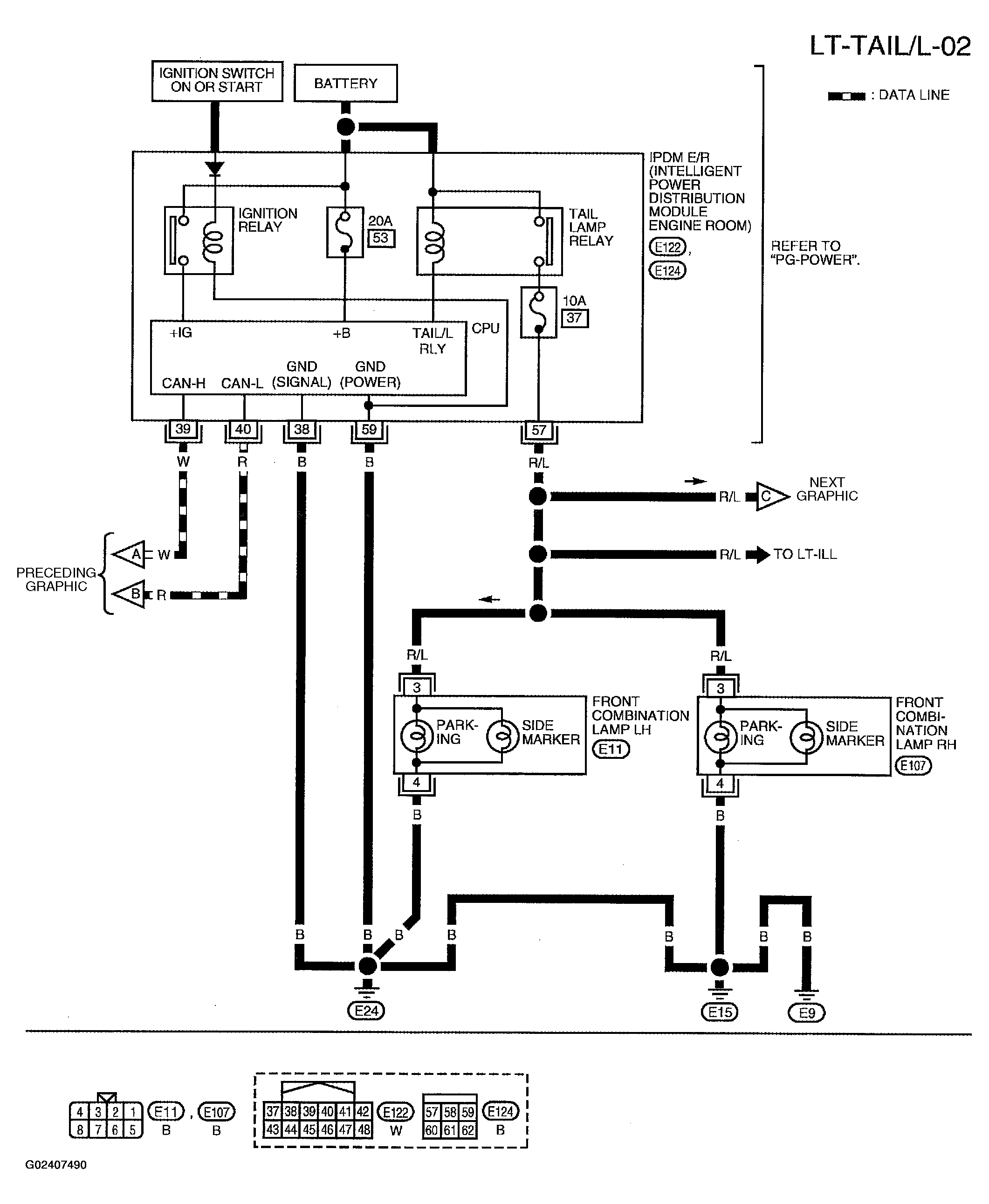

Fig 2: Wiring Diagram - LT-TAIL/L-02
G02407490Courtesy of NISSAN MOTOR CO., U.S.A.

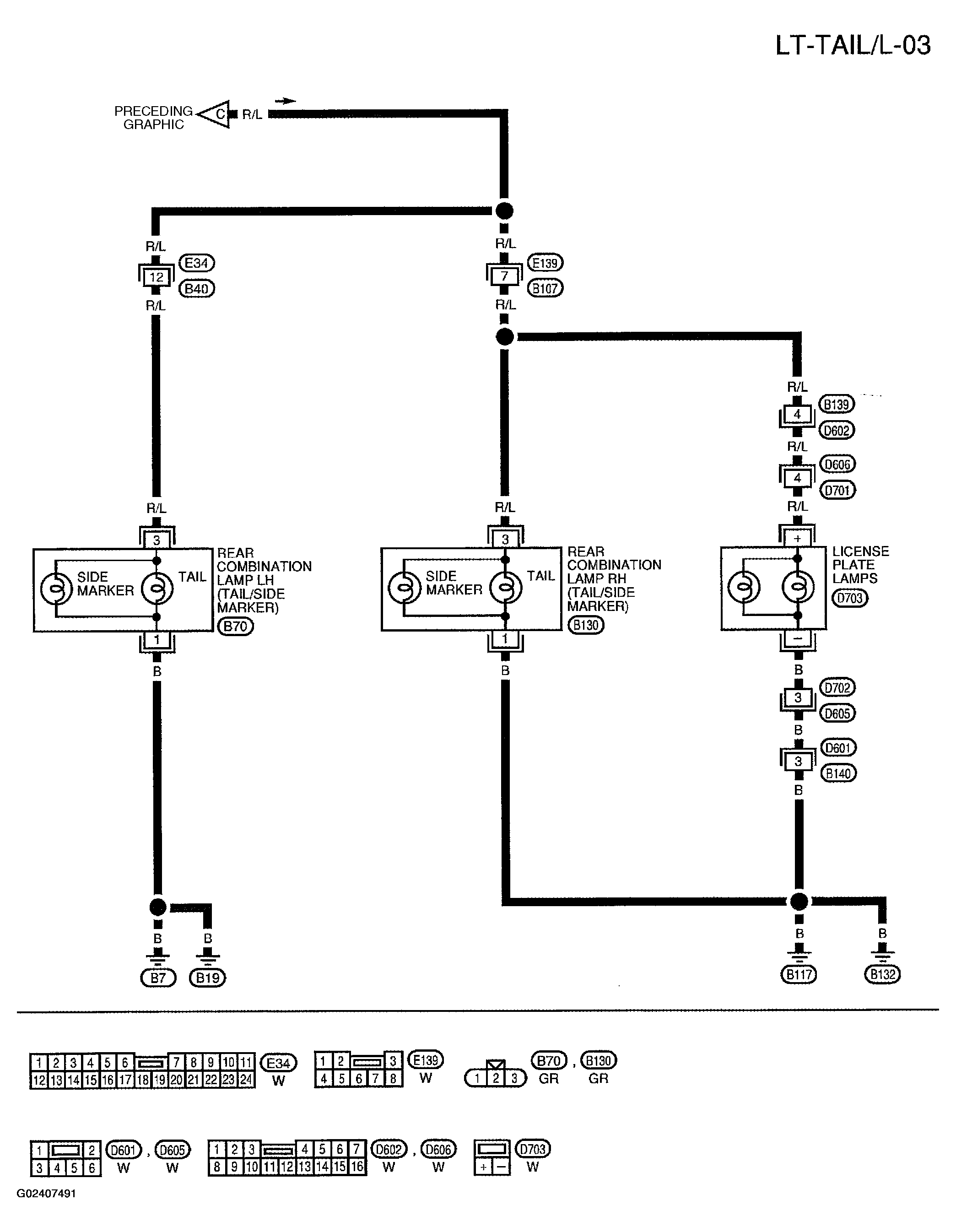

Fig 3: Wiring Diagram - LT-TAIL/L-03
G02407491Courtesy of NISSAN MOTOR CO., U.S.A.
