Bulb Replacement, Removal and Installation (A/T)

Remove console finisher (A/T). Refer to CONSOLE FINISHER (A/T MODELS) .
Remove instrument panel ashtray.
Use a screwdriver to undo ashtray finisher hooks.
Turn bulb socket on circuit board to left to undo lock. Remove bulb socket.
1. Ashtray illumination: 12V - 1.4W
Install in the reverse order of removal.

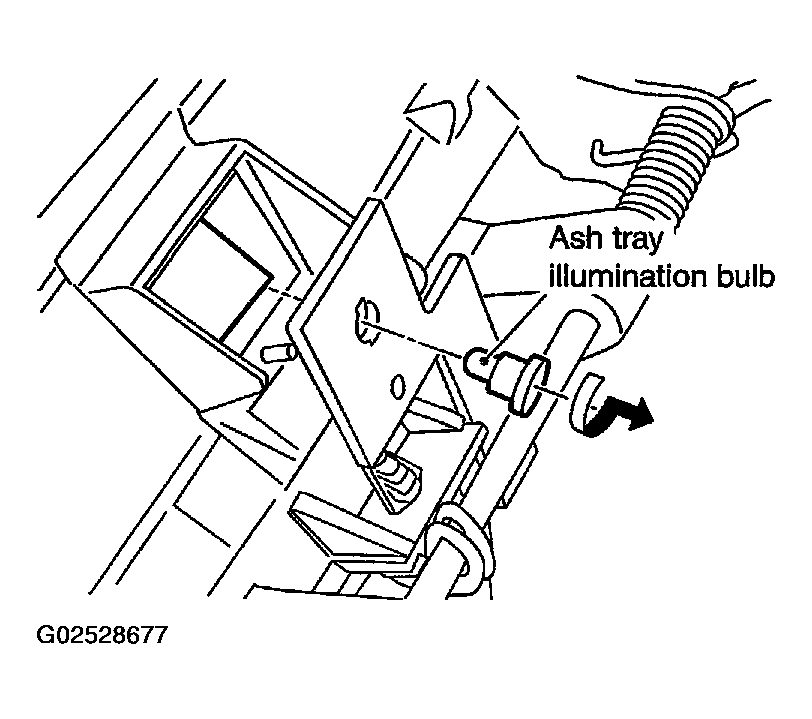

Fig 1: Turning Bulb Socket On Circuit Board To Left To Undo Lock
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Installing Console Finisher
Courtesy of NISSAN MOTOR CO., U.S.A.
