Check Power Supply And Ground Circuit
- CHECK FUSES
- Check fuses for blown-out.TERMINAL CHART
Unit Power source Fuse and fusible link No. BCM Battery F 18 Ignition switch ON or START position 1 Ignition switch ACC or ON position 6 IPDM E/R Battery 72 74 76 86
Refer to "WIRING DIAGRAM - H/LAMP - ".
OK or NG
- OK: GO TO 2.
- NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to POWER SUPPLY ROUTING CIRCUIT .
- Check fuses for blown-out.

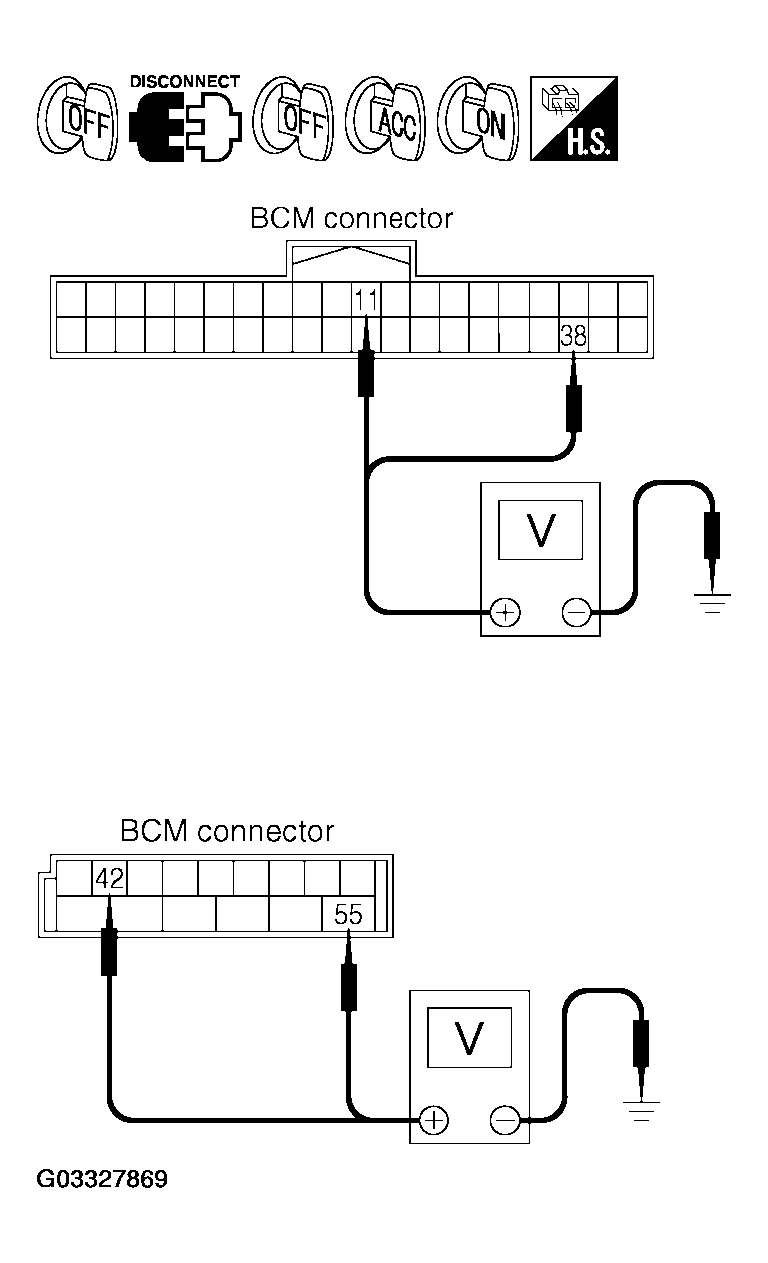

- CHECK POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect BCM connector.
- Check voltage between BCM harness connector and ground.POWER SUPPLY CIRCUIT TERMINAL CHART
Terminals Ignition switch position (+) (-) OFF ACC ON Connector Terminal (Wire color) M1 11 (LG) Ground 0V Battery voltage Battery voltage 38 (W/L) 0V 0V Battery voltage M2 42 (GY) Battery voltage Battery voltage Battery voltage 55 (W/R) Battery voltage Battery voltage Battery voltage
OK or NG
- OK: GO TO 3.
- NG: Check harness for open or short between BCM and fuse.
- CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
GROUND CIRCUIT TERMINAL CHARTTerminals Continuity Connector Terminal (Wire color) Ground Yes M2 52 (B) OK or NG
- OK: INSPECTION END
- NG: Check ground circuit harness.
