2004.5 - Headlamp (For USA) - Sedan
>>
Headlamp (For USA)
>>
Wiring Diagram - H/LAMP -
Wiring Diagram - H/LAMP -

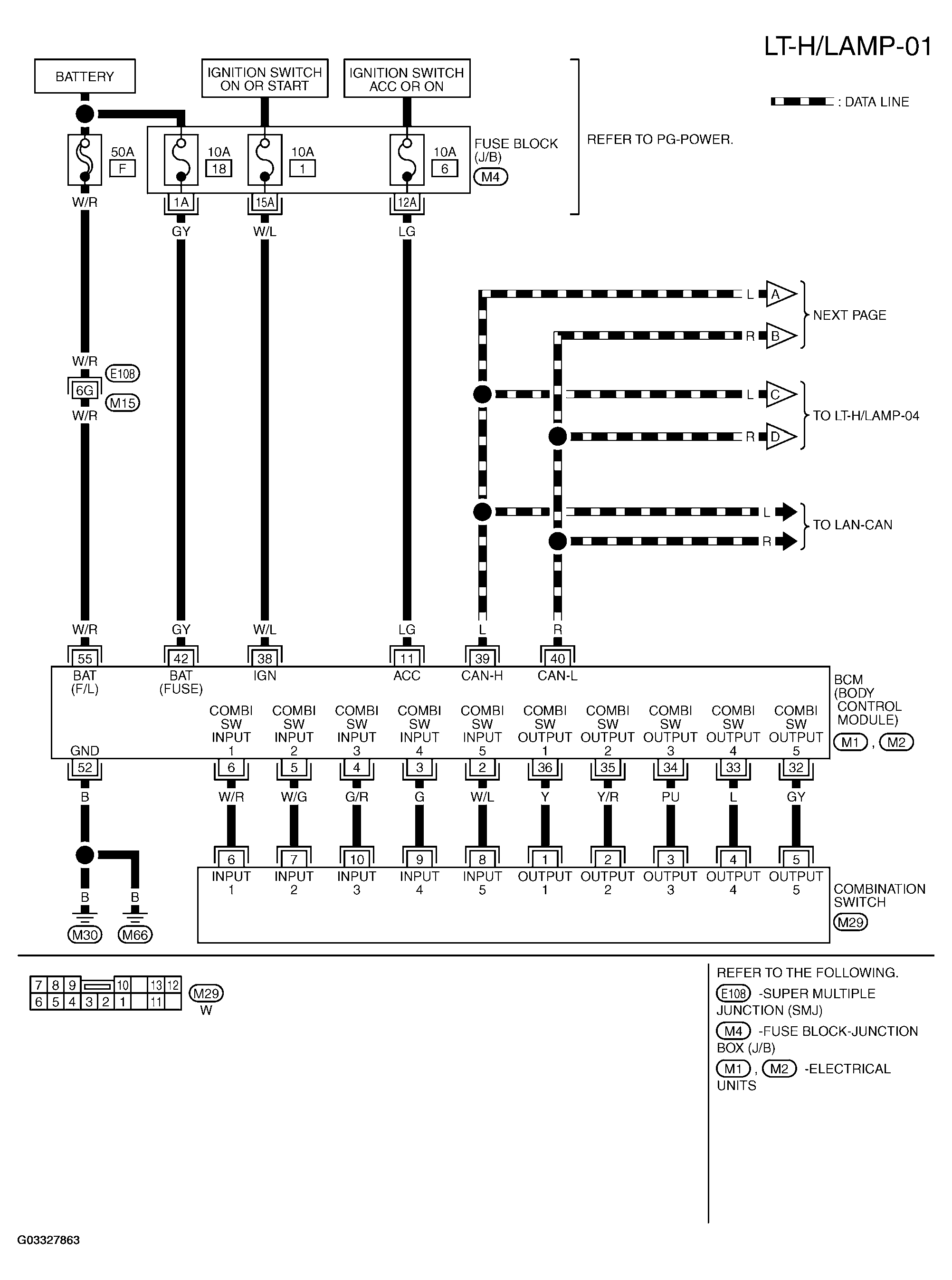

Fig 1: Wiring Diagram - LT-H/LAMP 01
Courtesy of NISSAN MOTOR CO., U.S.A.

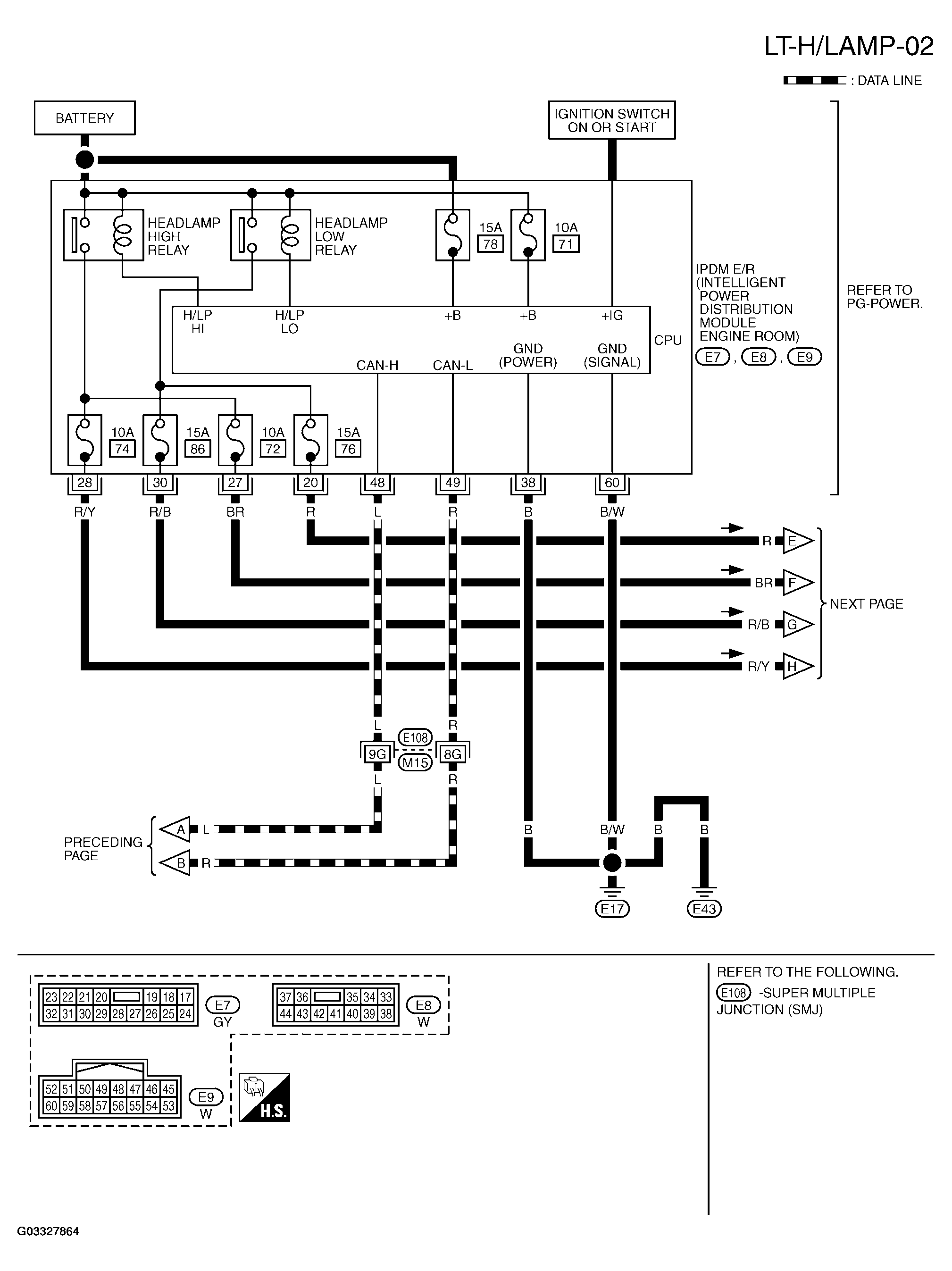

Fig 2: Wiring Diagram - LT-H/LAMP 02
Courtesy of NISSAN MOTOR CO., U.S.A.

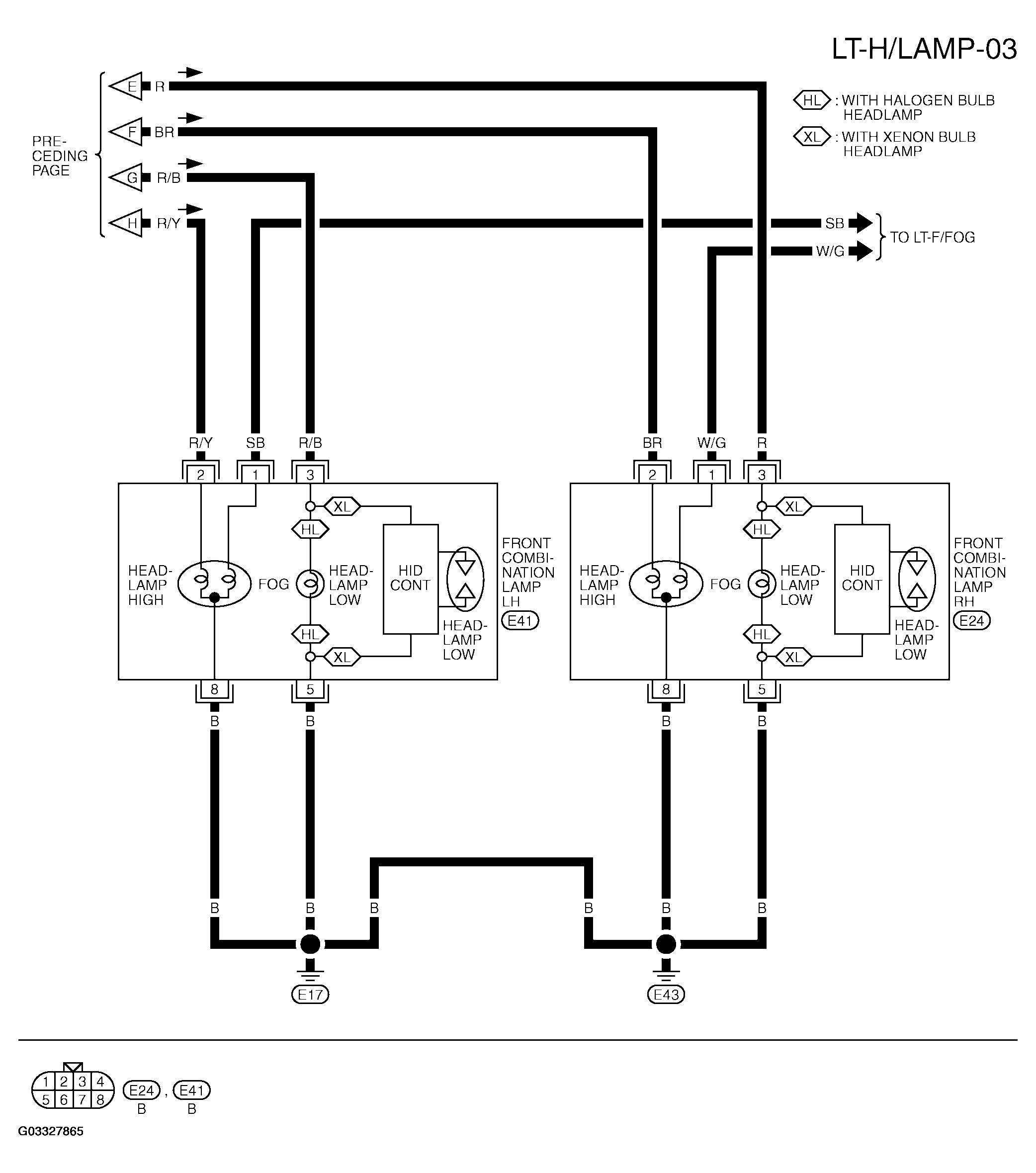

Fig 3: Wiring Diagram - LT-H/LAMP 03
Courtesy of NISSAN MOTOR CO., U.S.A.

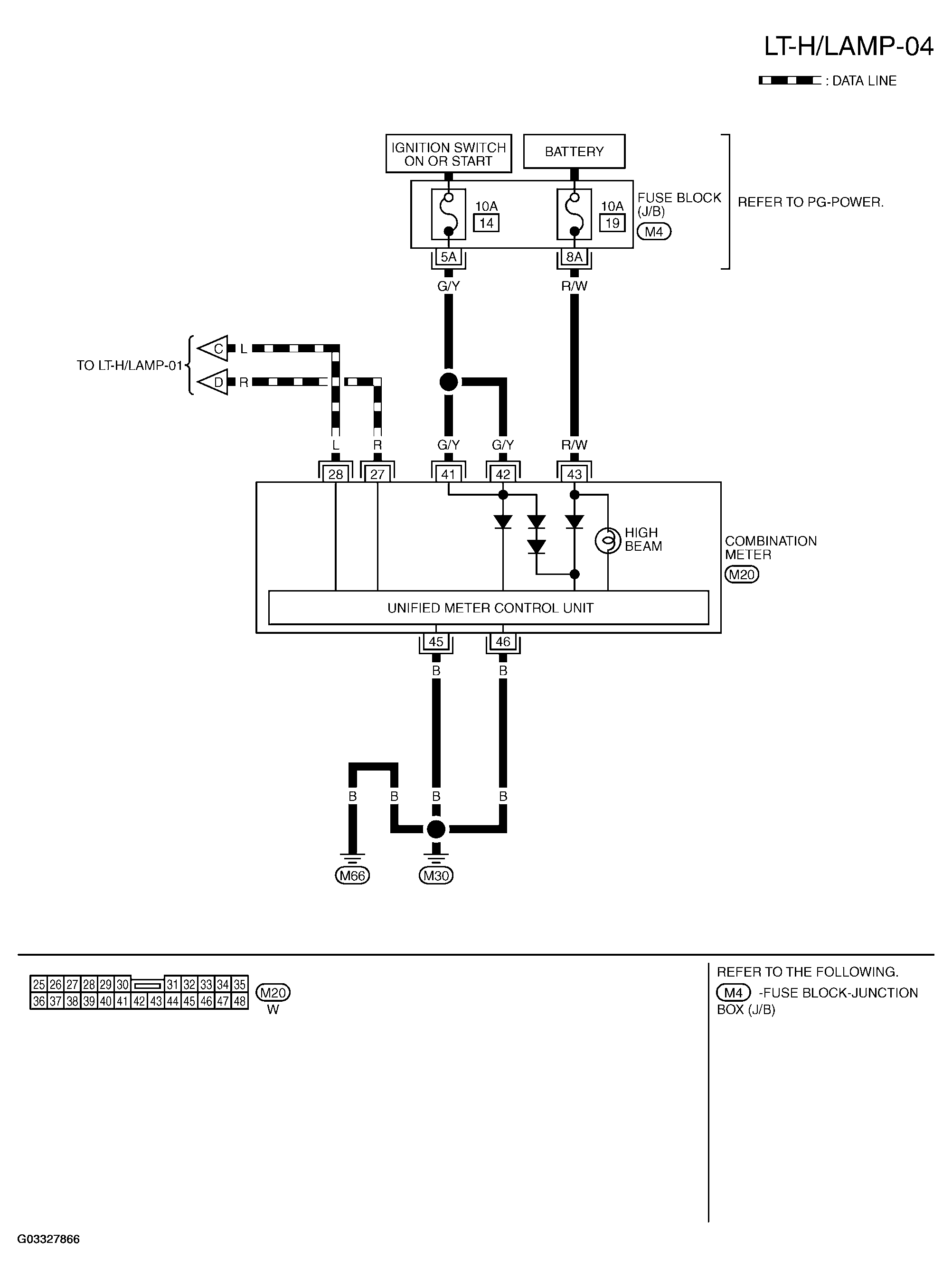

Fig 4: Wiring Diagram - LT-H/LAMP 04
Courtesy of NISSAN MOTOR CO., U.S.A.
