Removal and Installation for Combination Meter: Removal

  1. Remove column cover. Refer to STEERING COLUMN
  2. Remove combination switch. Refer to LIGHTING AND TURN SIGNAL SWITCH and REMOVAL AND INSTALLATION OF FRONT WIPER AND WASHER SWITCH .
  3. Remove instrument lower cover. Refer to INSTRUMENT PANEL ASSEMBLY .
  4. Remove the screw (4) and remove cluster lid A and combination meter assembly. Refer to INSTRUMENT PANEL ASSEMBLY .

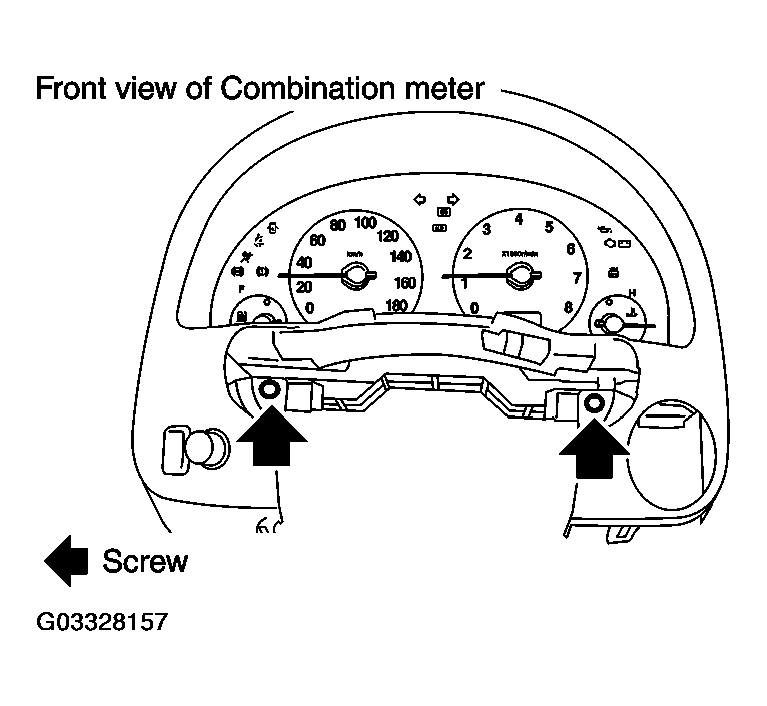

    Fig 1: Removing Screw, Cluster Lid And Combination Meter Assembly
    G03328157Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Disconnect connectors and remove combination meter.
  6. Disassembly cluster lid A and combination meter.

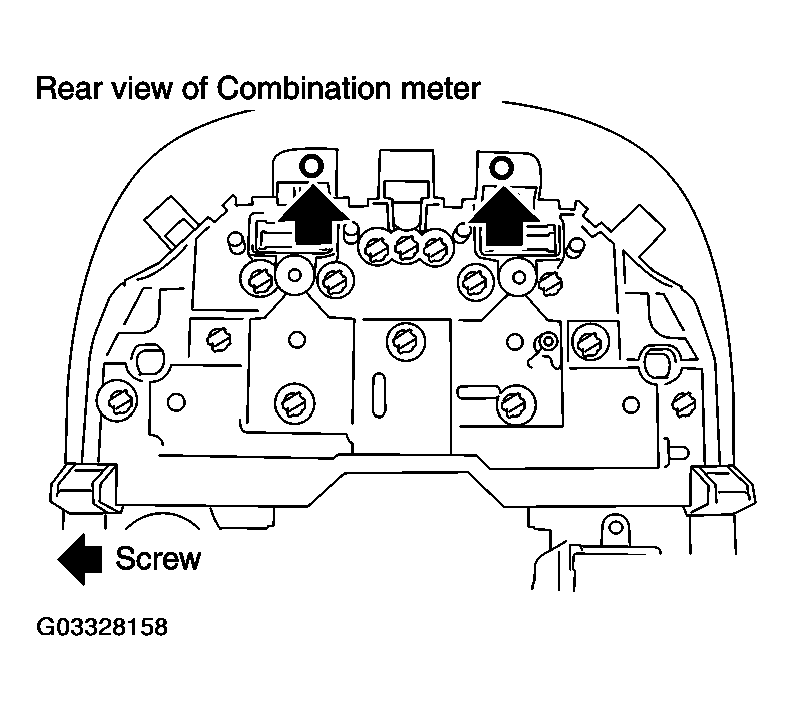

    Fig 2: Removing Screw Of Combination Switch (Rear View)
    G03328158Courtesy of NISSAN MOTOR CO., U.S.A.
