Removal and Installation of Front Wiper and Washer Switch

  1. Remove steering column cover. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove mounting bolts of cluster lid A and combination meter. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  3. Pull wiper and washer switch toward passenger door while pressing pawls in direction shown by the arrow in the figure, and remove it from the base.
  4. Remove wiper and washer switch connector.

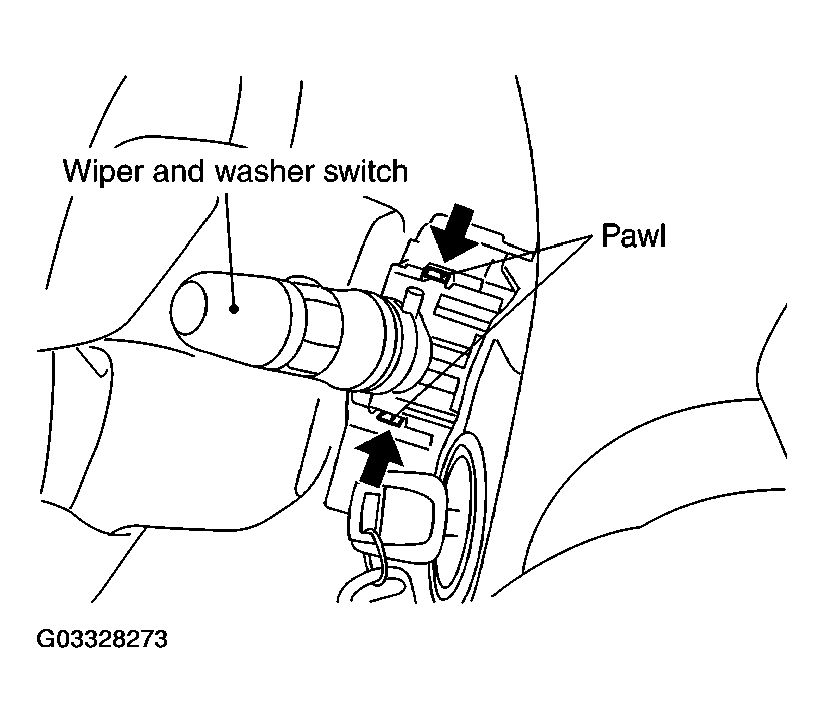

    Fig 1: Pressing Pawls
    G03328273Courtesy of NISSAN MOTOR CO., U.S.A.
