Wiring Diagram - CLOCK -

NOTE: For PG-POWER, refer to SYSTEM WIRING DIAGRAMS .

For LT-ILL, refer to WIRING DIAGRAM -- ILL -- .

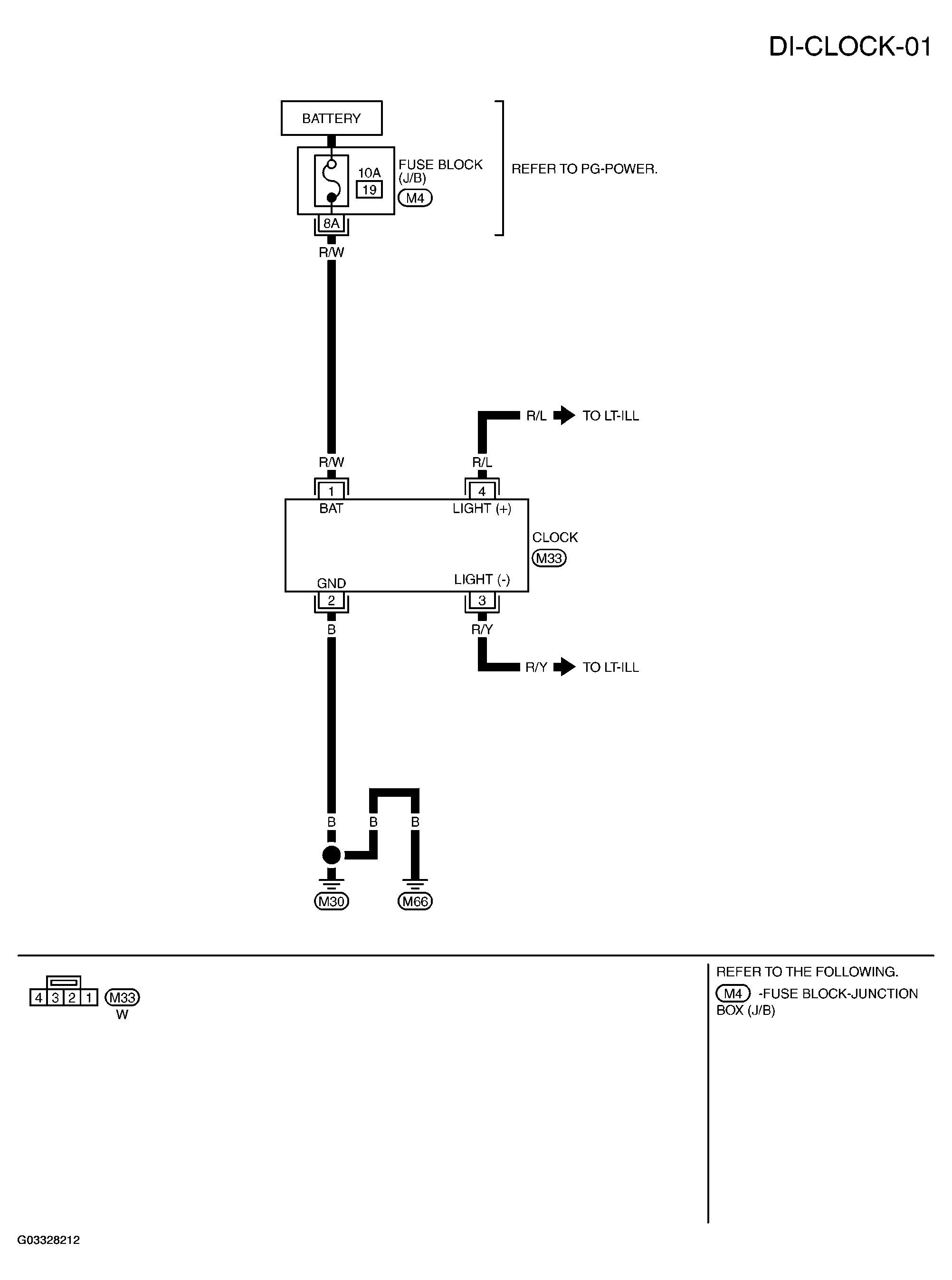

Fig 1: Wiring Diagram - DI-CLOCK-01
G03328212Courtesy of NISSAN MOTOR CO., U.S.A.
