Wiring Diagram - ILL -

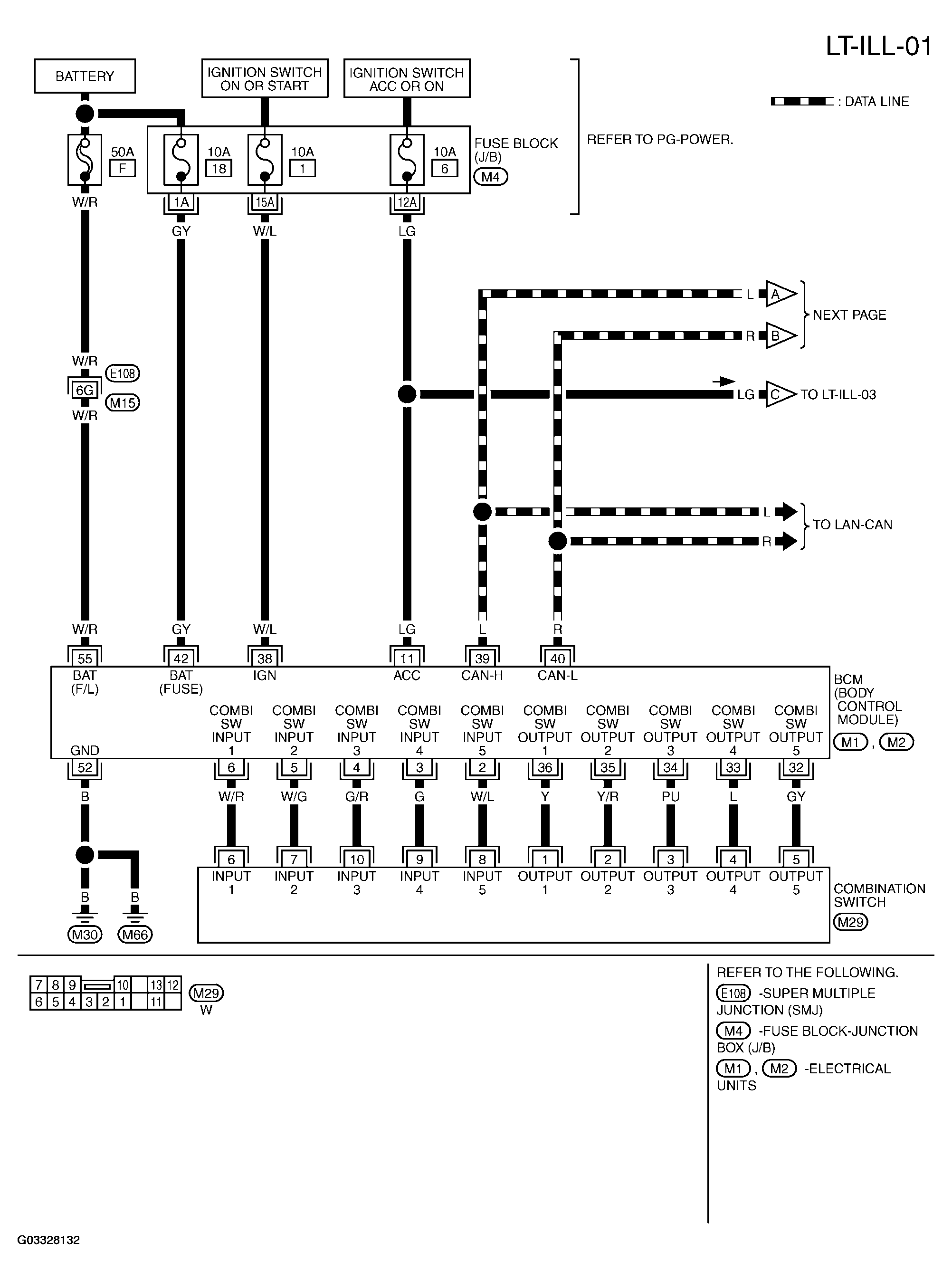

Fig 1: Wiring Diagram - LT-ILL-01

G03328132

Courtesy of NISSAN MOTOR CO., U.S.A.

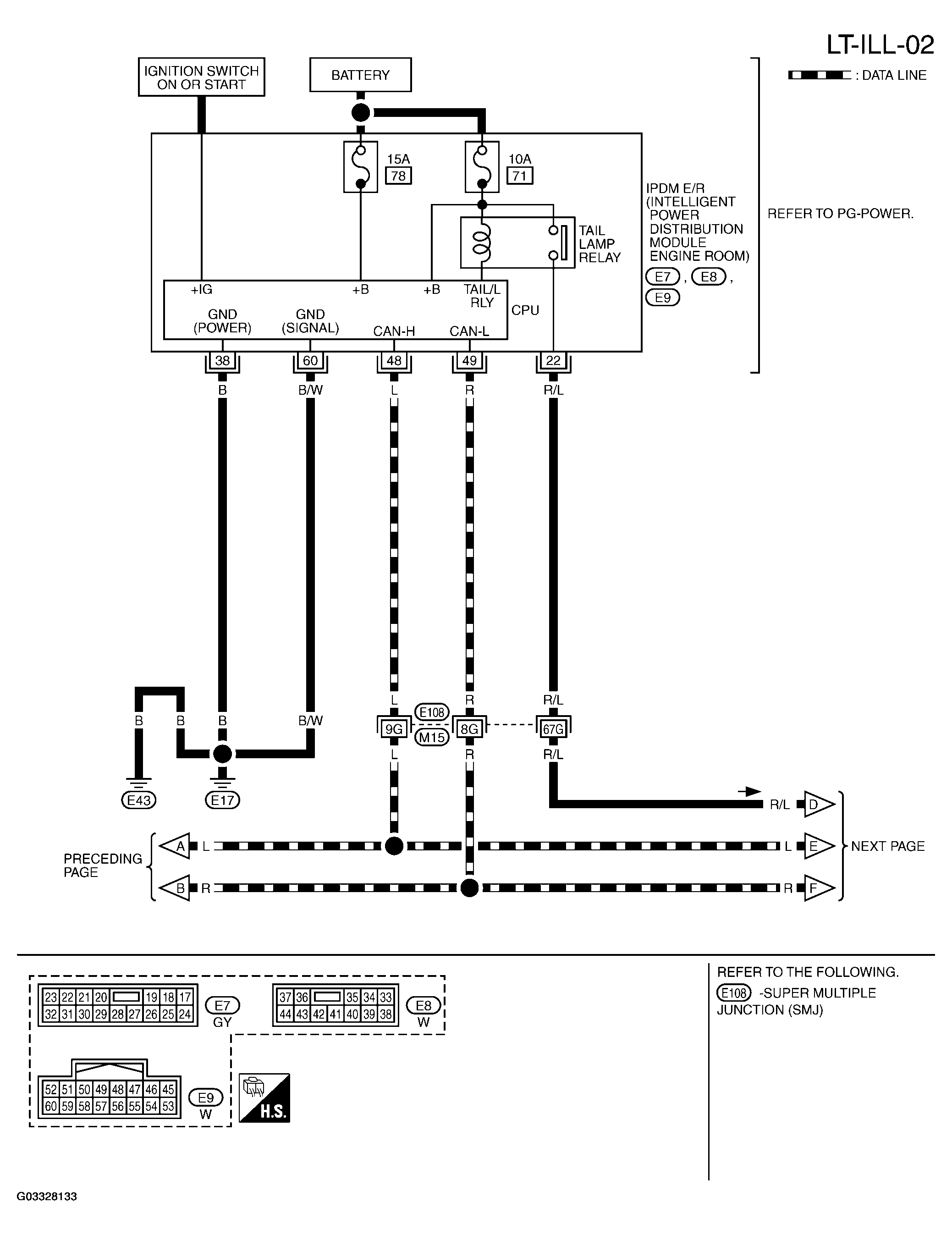

Fig 2: Wiring Diagram - LT-ILL-02

G03328133

Courtesy of NISSAN MOTOR CO., U.S.A.

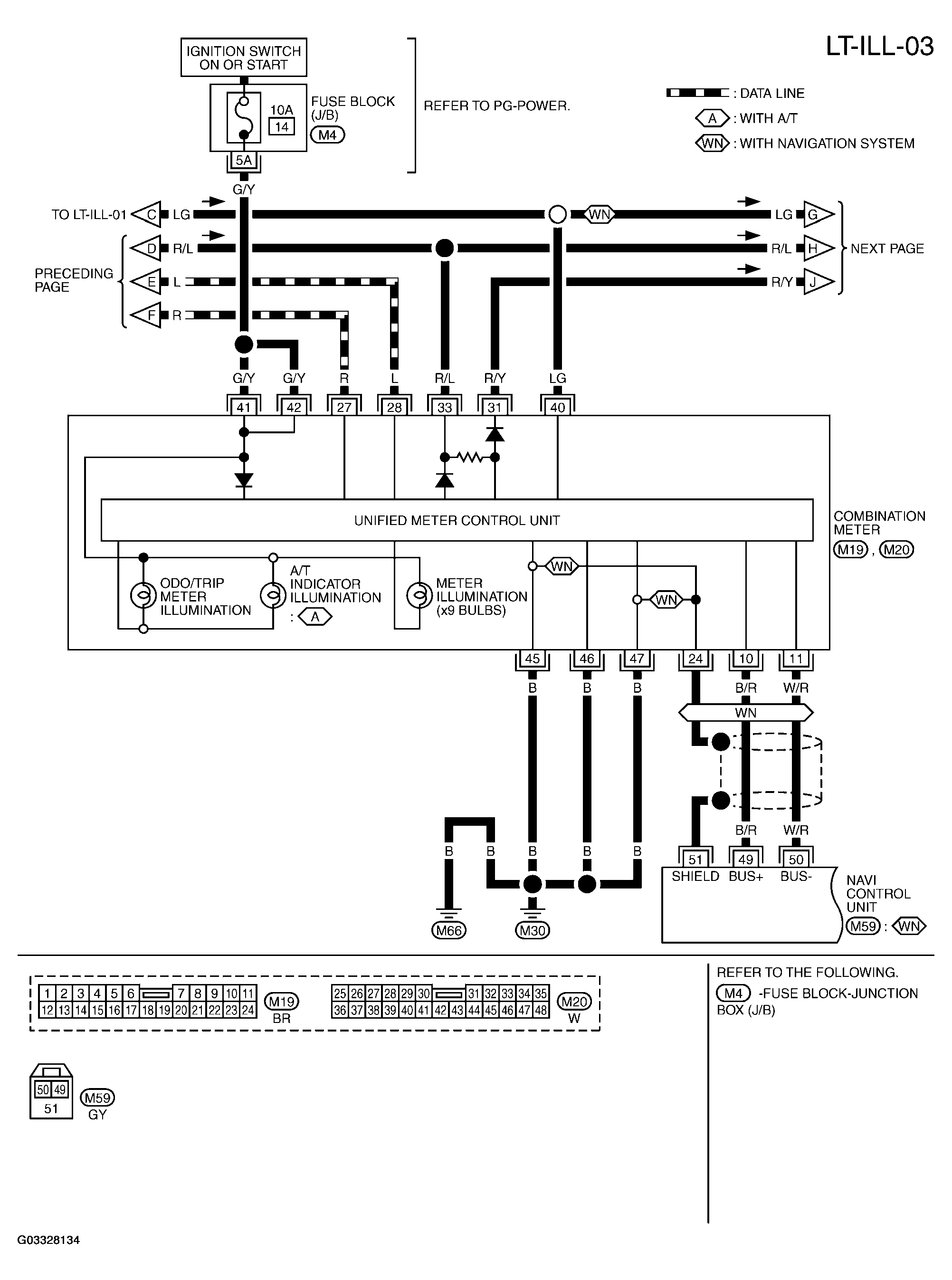

Fig 3: Wiring Diagram - LT-ILL-03

G03328134

Courtesy of NISSAN MOTOR CO., U.S.A.

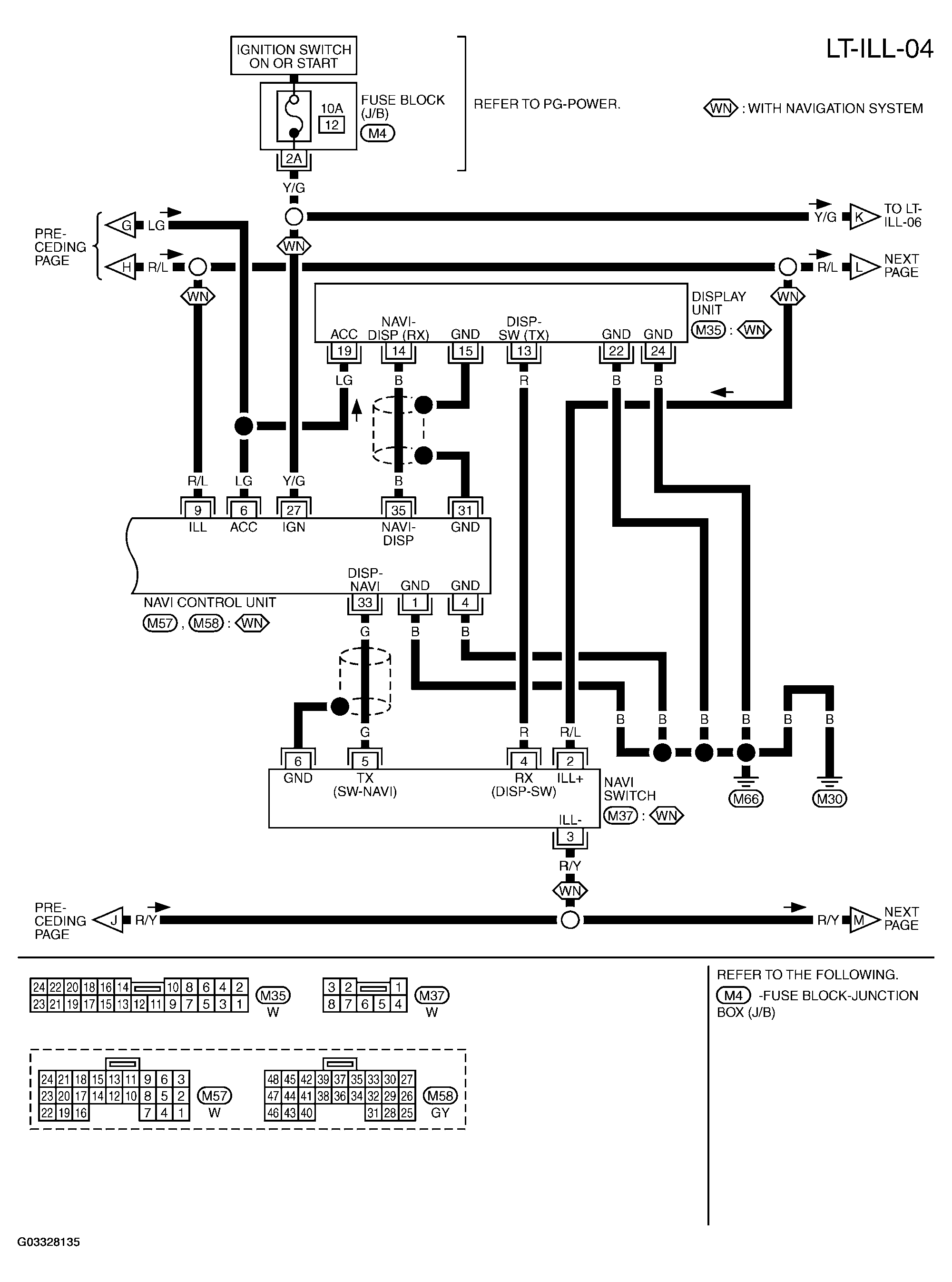

Fig 4: Wiring Diagram - LT-ILL-04

G03328135

Courtesy of NISSAN MOTOR CO., U.S.A.

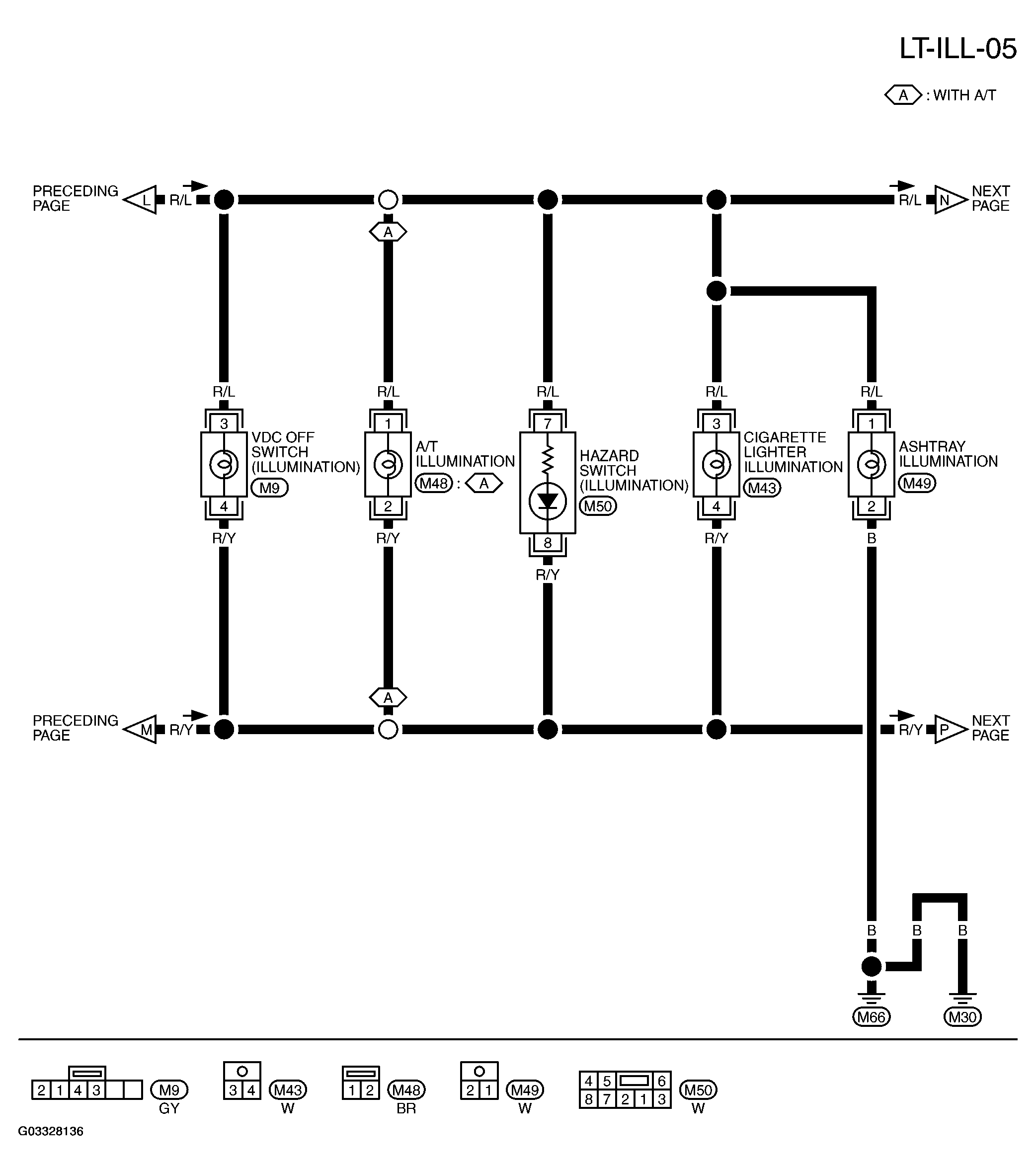

Fig 5: Wiring Diagram - LT-ILL-05

G03328136

Courtesy of NISSAN MOTOR CO., U.S.A.

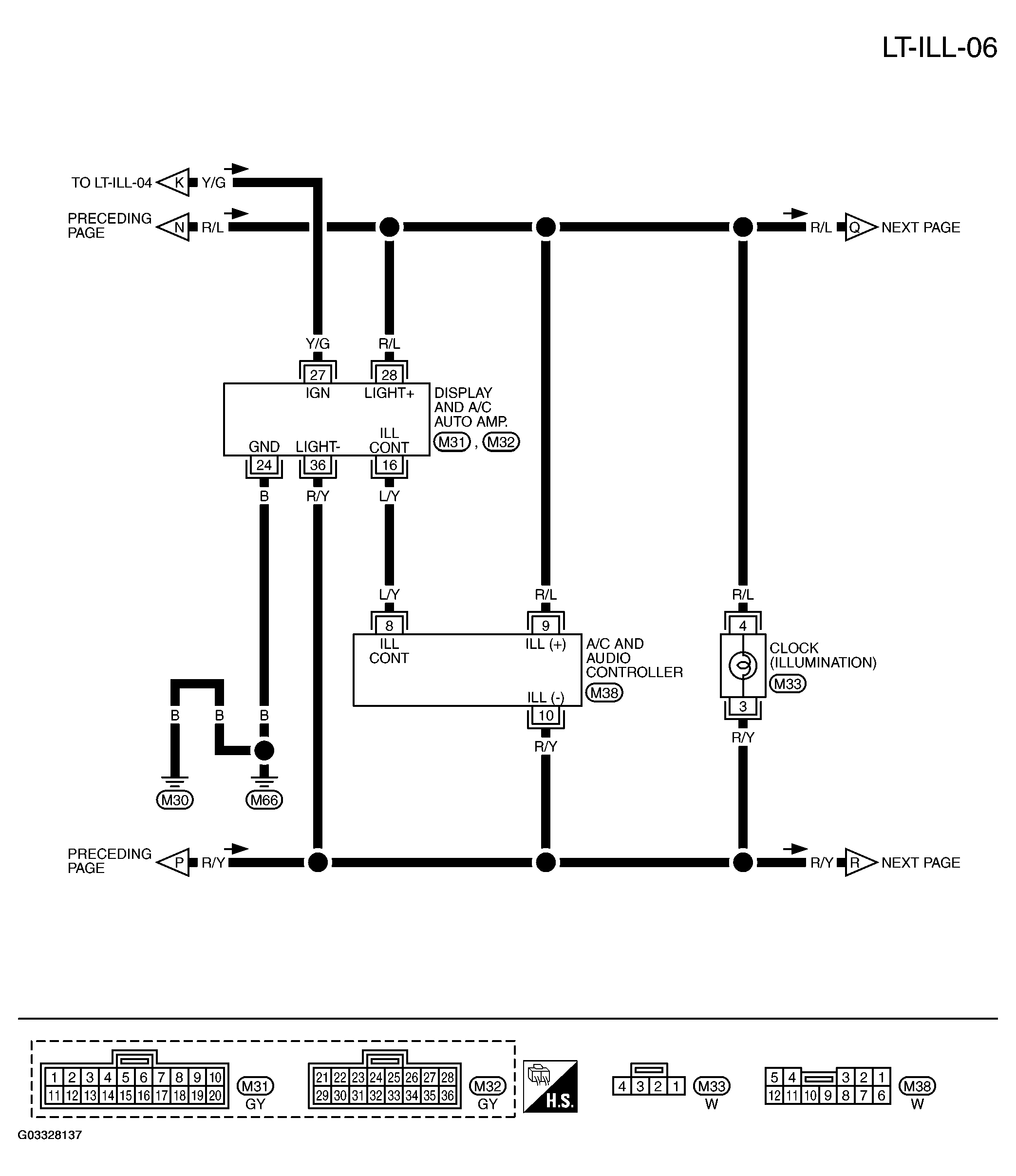

Fig 6: Wiring Diagram - LT-ILL-06

G03328137

Courtesy of NISSAN MOTOR CO., U.S.A.

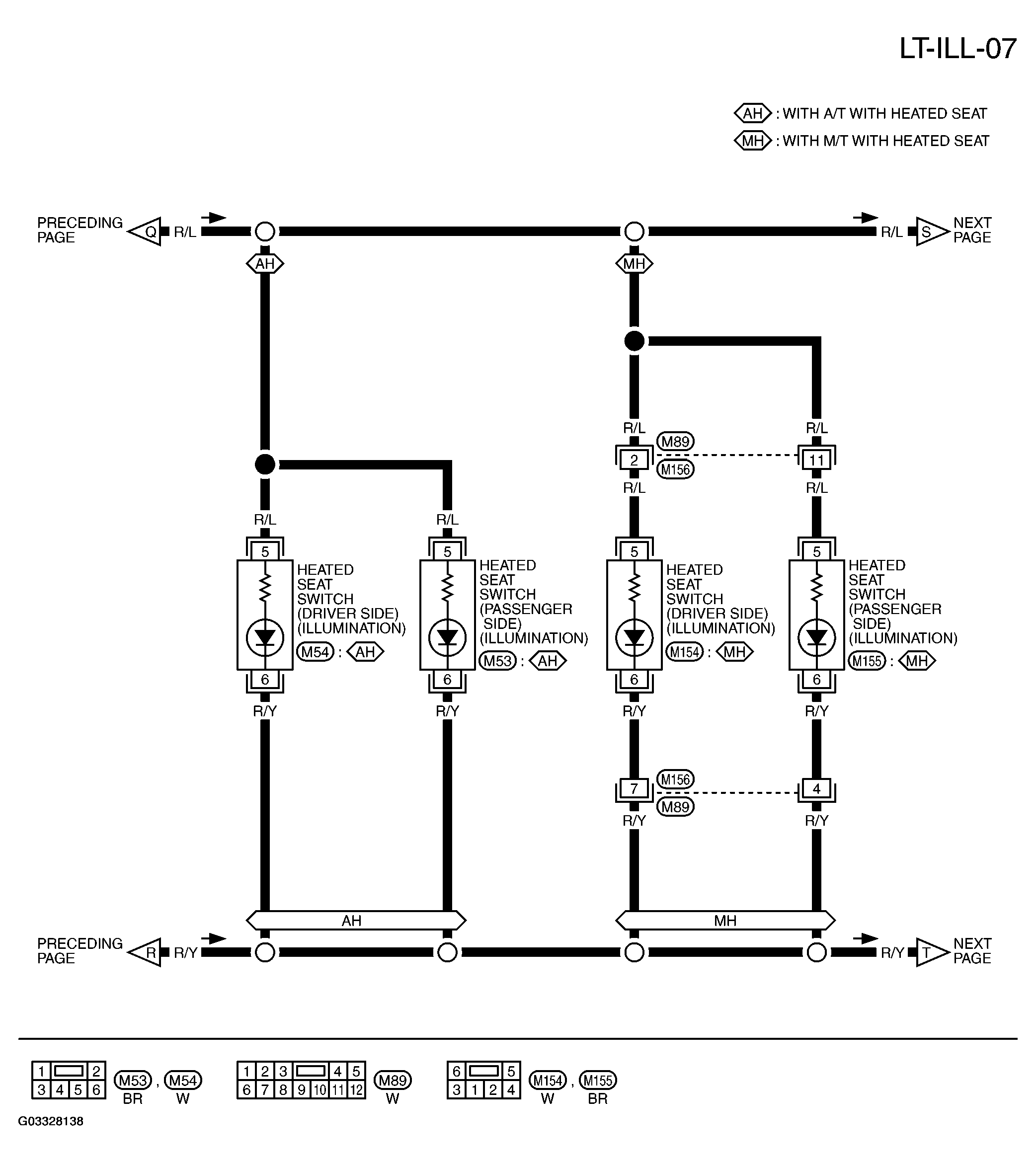

Fig 7: Wiring Diagram - LT-ILL-07

G03328138

Courtesy of NISSAN MOTOR CO., U.S.A.

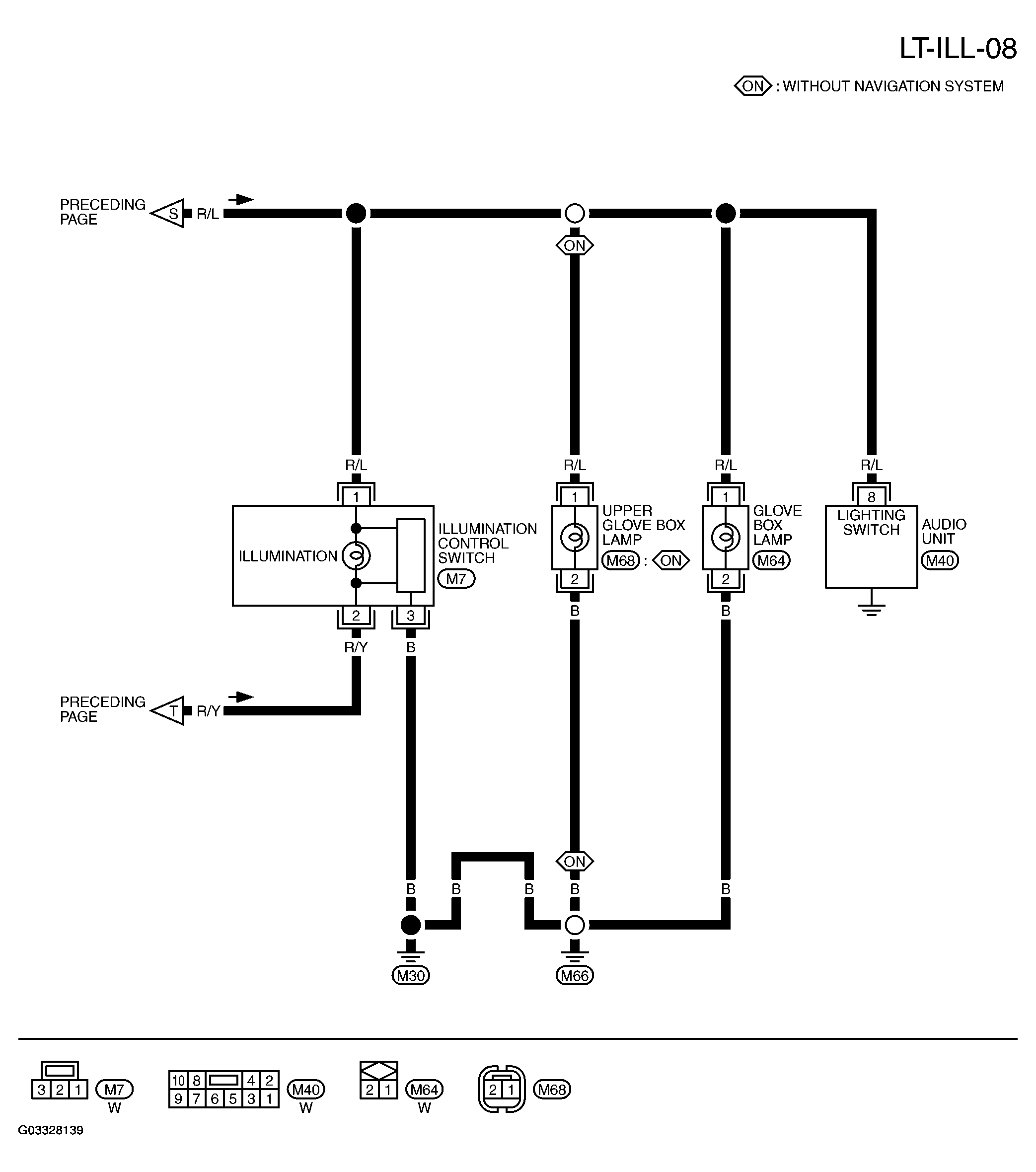

Fig 8: Wiring Diagram - LT-ILL-08

G03328139

Courtesy of NISSAN MOTOR CO., U.S.A.
