Check Power Supply & Ground Circuit

• Check fuses for blown-out.

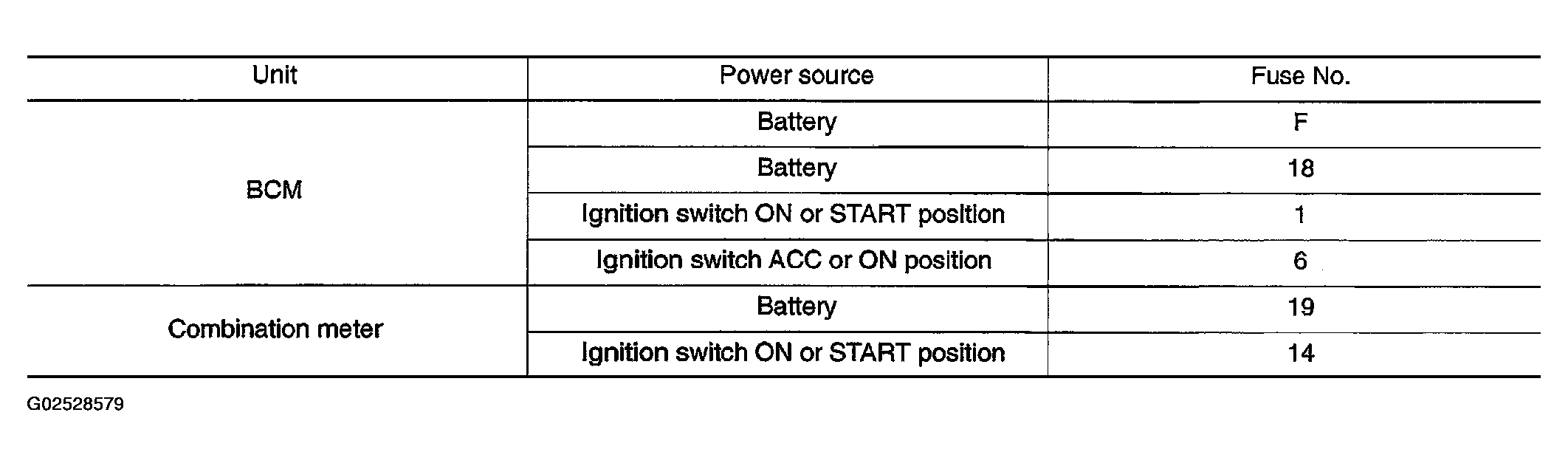

Fig 1: Check For Blown-Out Fuse

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Wiring Diagram - TURN -".

OK or NG

1. OK: GO TO 2.
2. NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to POWER DISTRIBUTION .

1. Disconnect BCM connector.
2. Check voltage between BCM harness connector and ground.

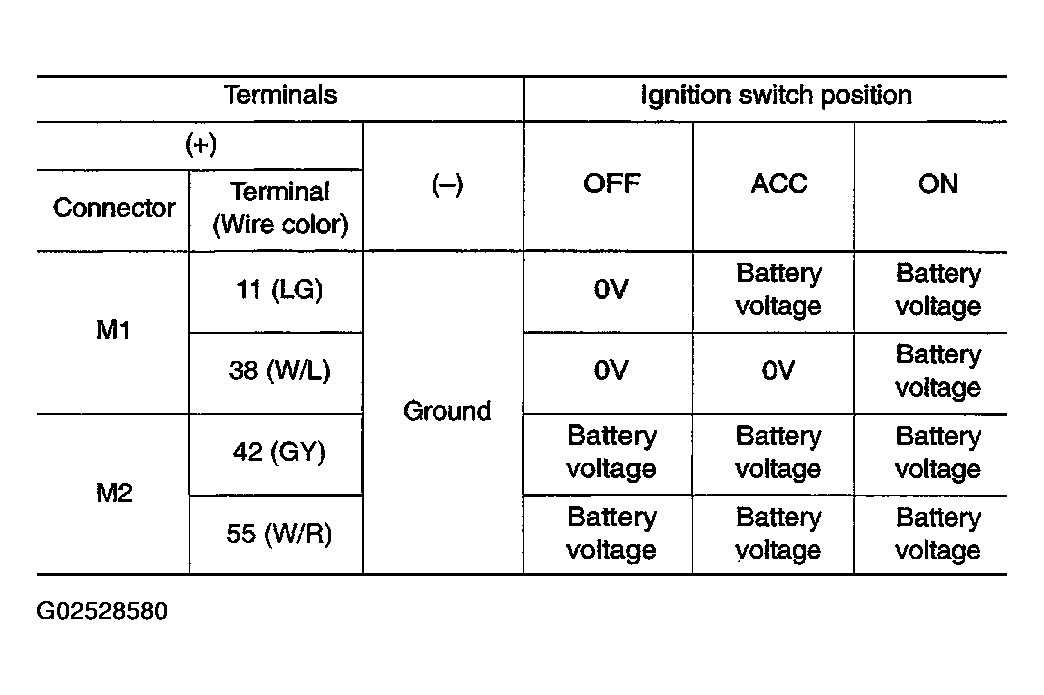

Fig 2: Voltage Check Between BCM Harness Connector And Ground Table

Courtesy of NISSAN MOTOR CO., U.S.A.

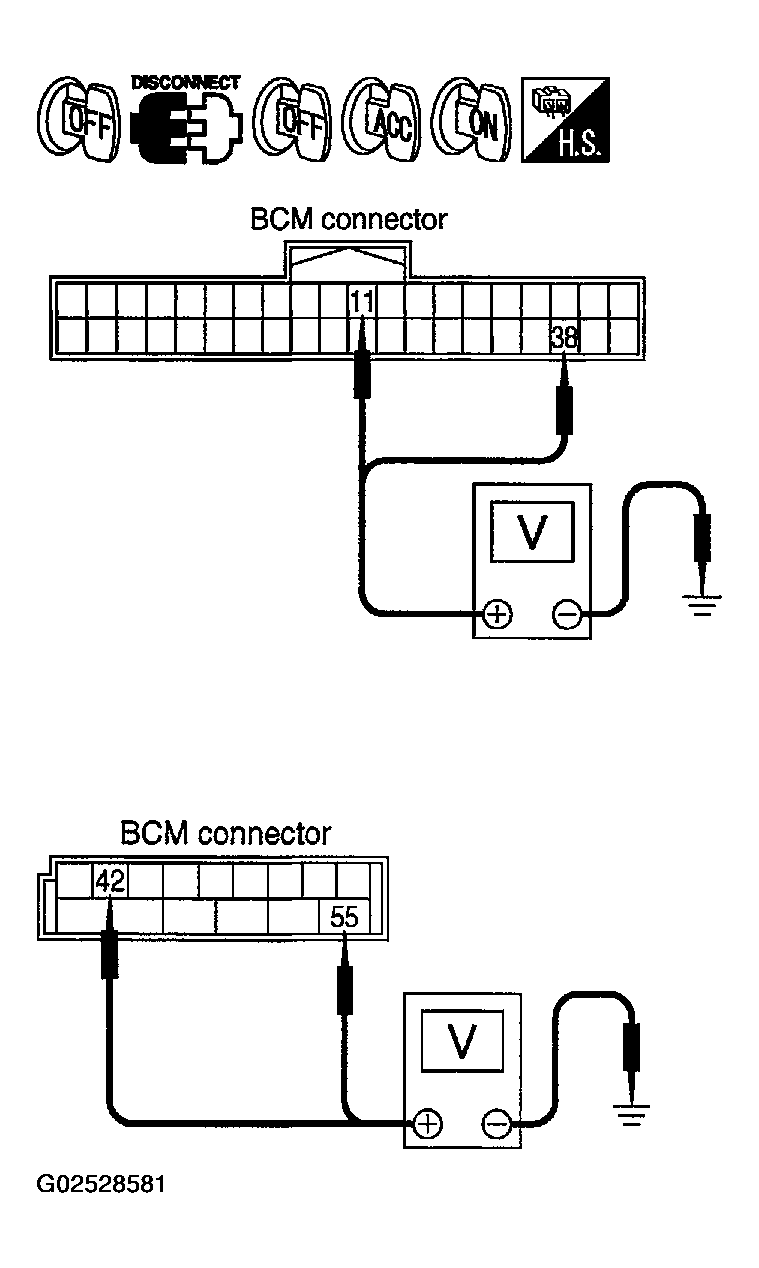

Fig 3: Checking Voltage Between BCM Harness Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 3.
2. NG: Check harness for open or short between BCM and fuse.

Check continuity between BCM harness connector and ground.

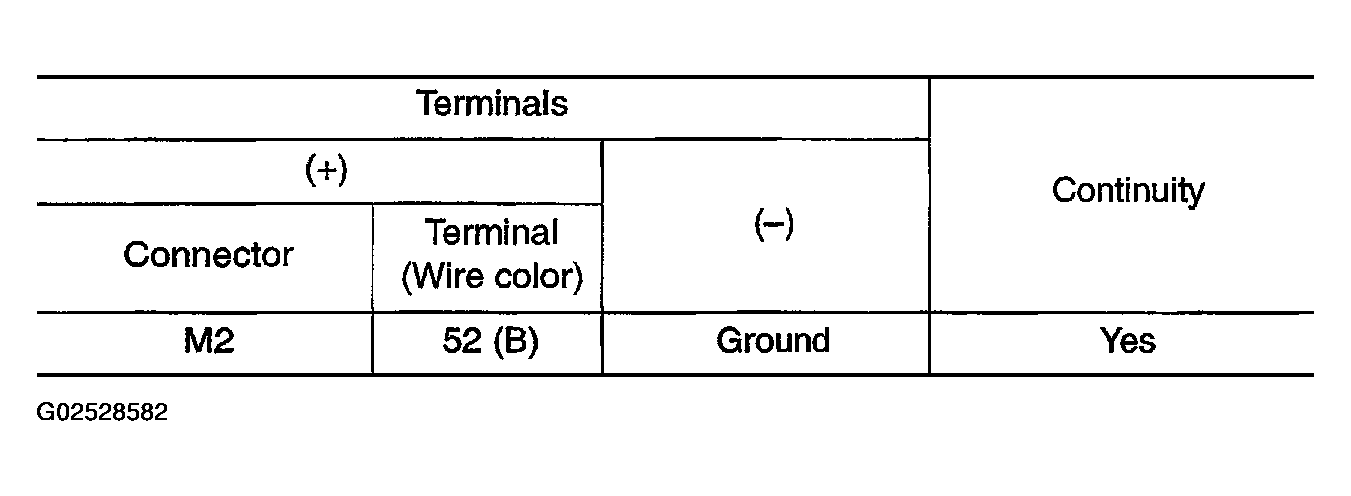

Fig 4: Continuity Check Between BCM Harness Connector And Ground Table

Courtesy of NISSAN MOTOR CO., U.S.A.

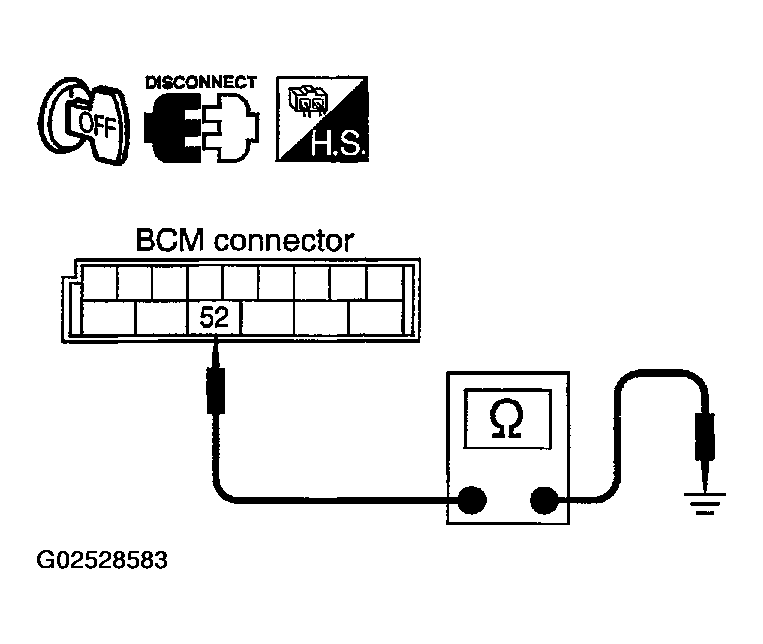

Fig 5: Checking Continuity Between BCM Harness Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: INSPECTION END
2. NG: Check ground circuit harness.
