Wiring Diagram - Turn -

For complete system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

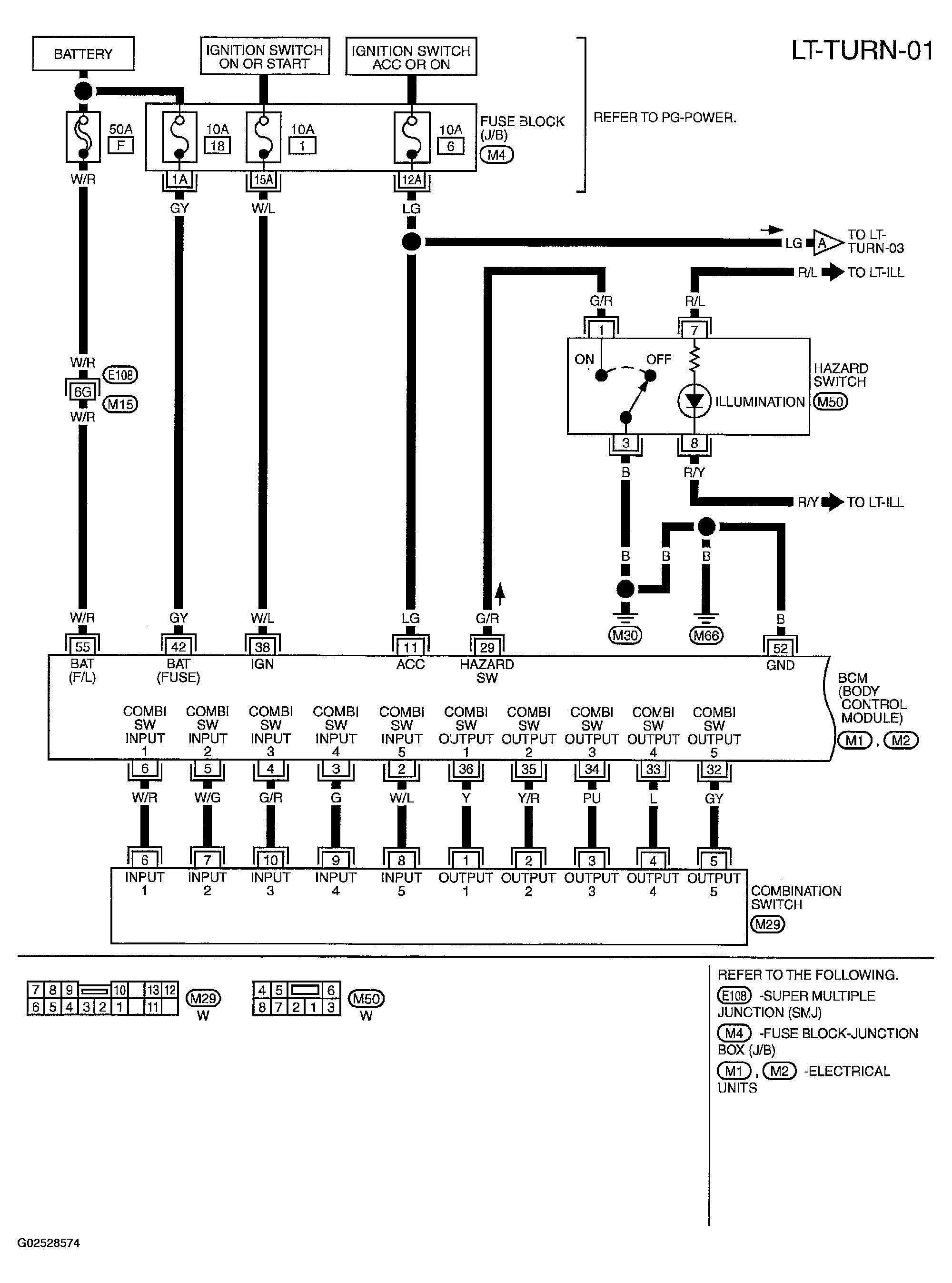

Fig 1: Turn Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

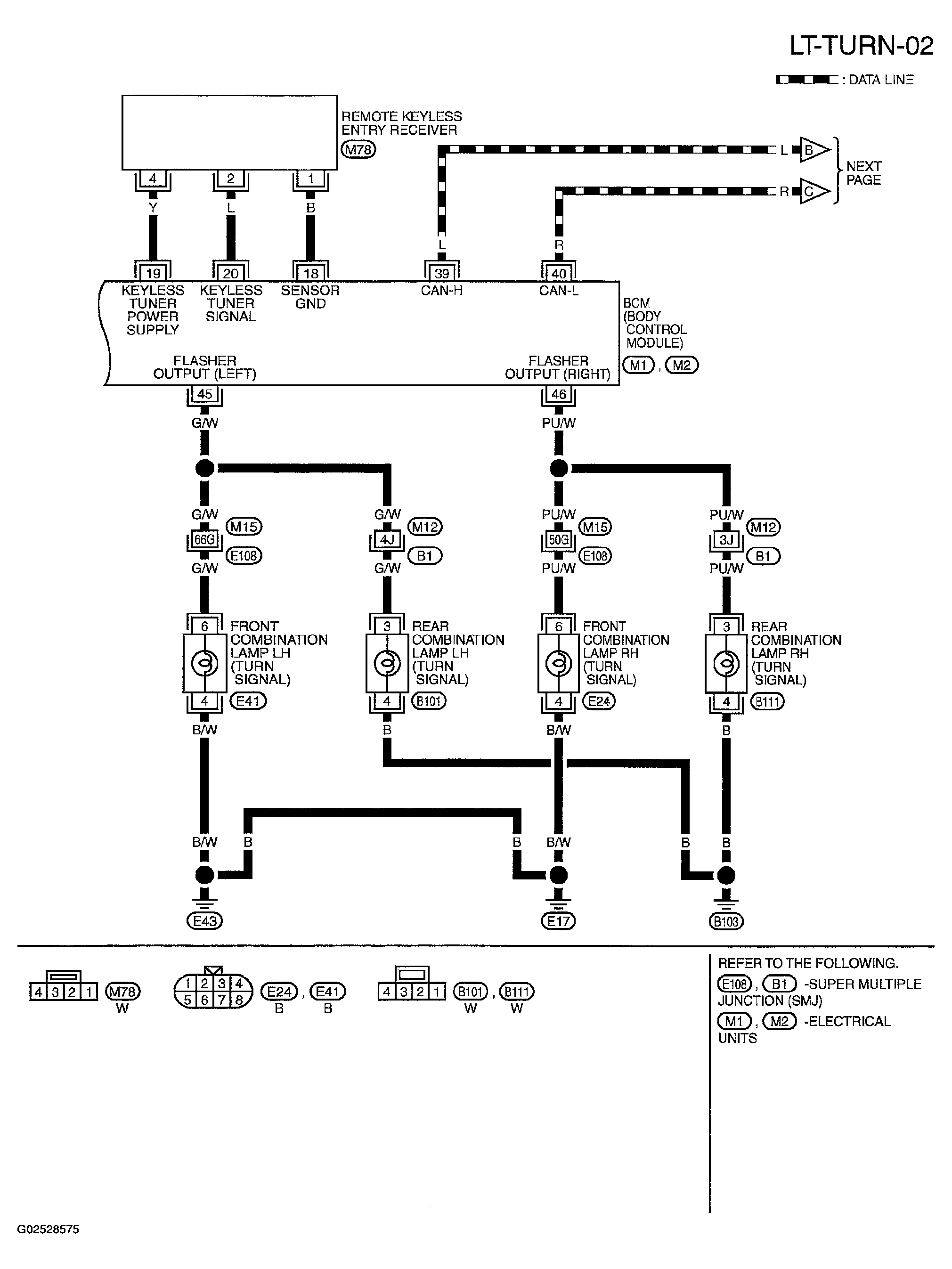

Fig 2: Turn Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

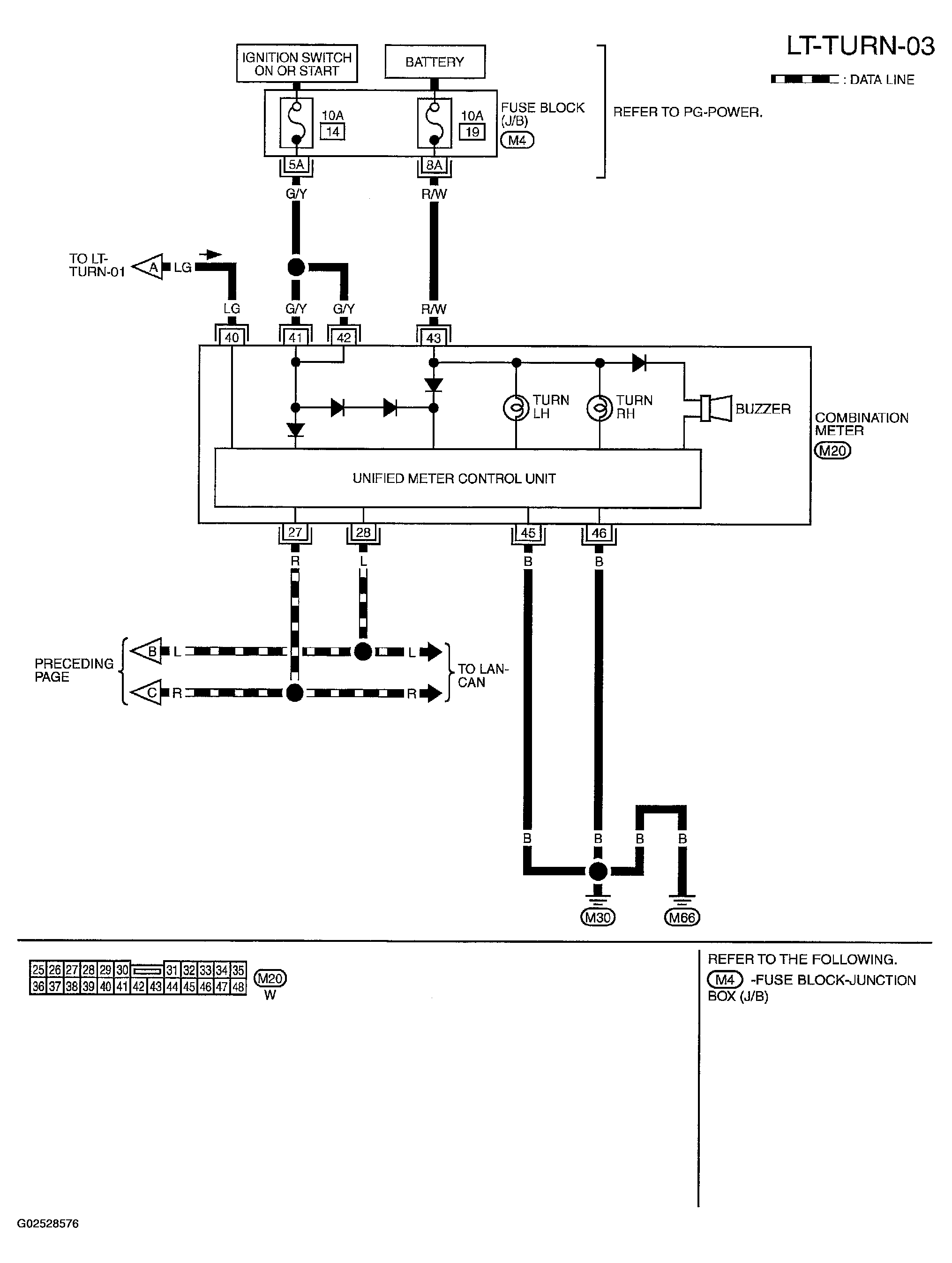

Fig 3: Turn Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
