Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT SLIP INDICATOR LIGHT

    WHEN USING HAND-HELD TESTER:

    1. Connect the hand-held tester to the DLC3.
    2. Start the engine.
    3. Select the item "SLIP INDI LIGHT" in the ACTIVE TEST and operate the SLIP indicator light on the hand-held tester display.
      Fig 1: Slip Indicator Light Condition Chart
      G01439047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check that "ON" and "OFF" of the SLIP indicator light can be shown on the combination meter by the hand-held tester.

    Standard:

    1. The SLIP indicator light is turned ON or OFF in accordance with the hand-held tester.

    WHEN NOT USING HAND-HELD TESTER:

    1. Turn the ignition switch off and disconnect the connector from the skid control ECU.

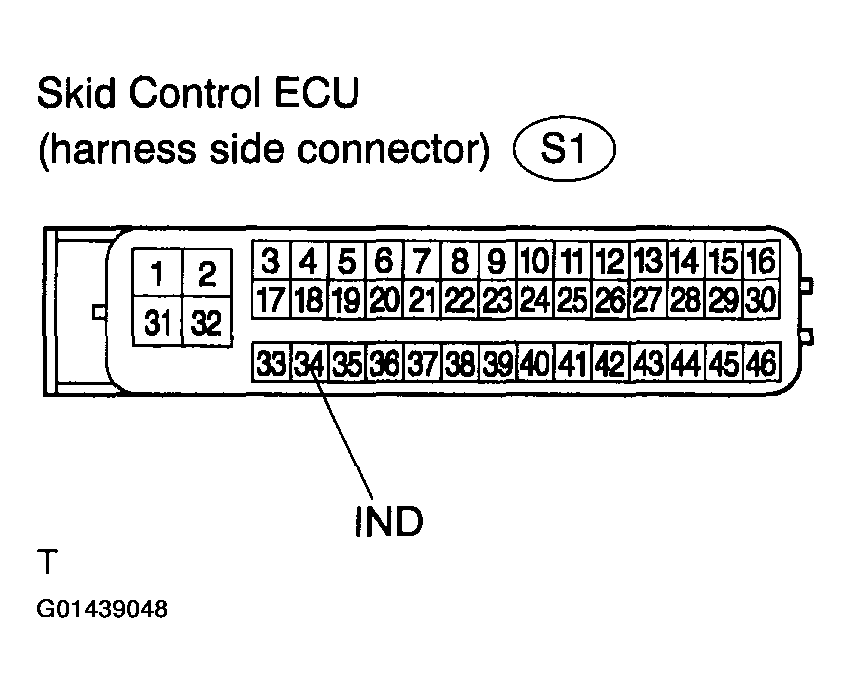

      Fig 2: Turning Ignition Switch Off & Disconnecting Connector
      G01439048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Ground the terminal IND of skid control ECU.
    3. Turn the ignition switch to the ON position.
    4. Check that the SLIP indicator light goes on.

    Standard:

    1. Turn the light ON or OFF in accordance with the connecting condition of the terminal GND and IND.
    NOTE: When replacing the Brake Actuator assy, perform zero point calibration (see PRE-CHECK  ).

    NG: Go to step 2

    OK: REPLACE BRAKE ACTUATOR ASSY

  2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER)
    1. Disconnect the skid control ECU connector S1 and combination meter connector C8.

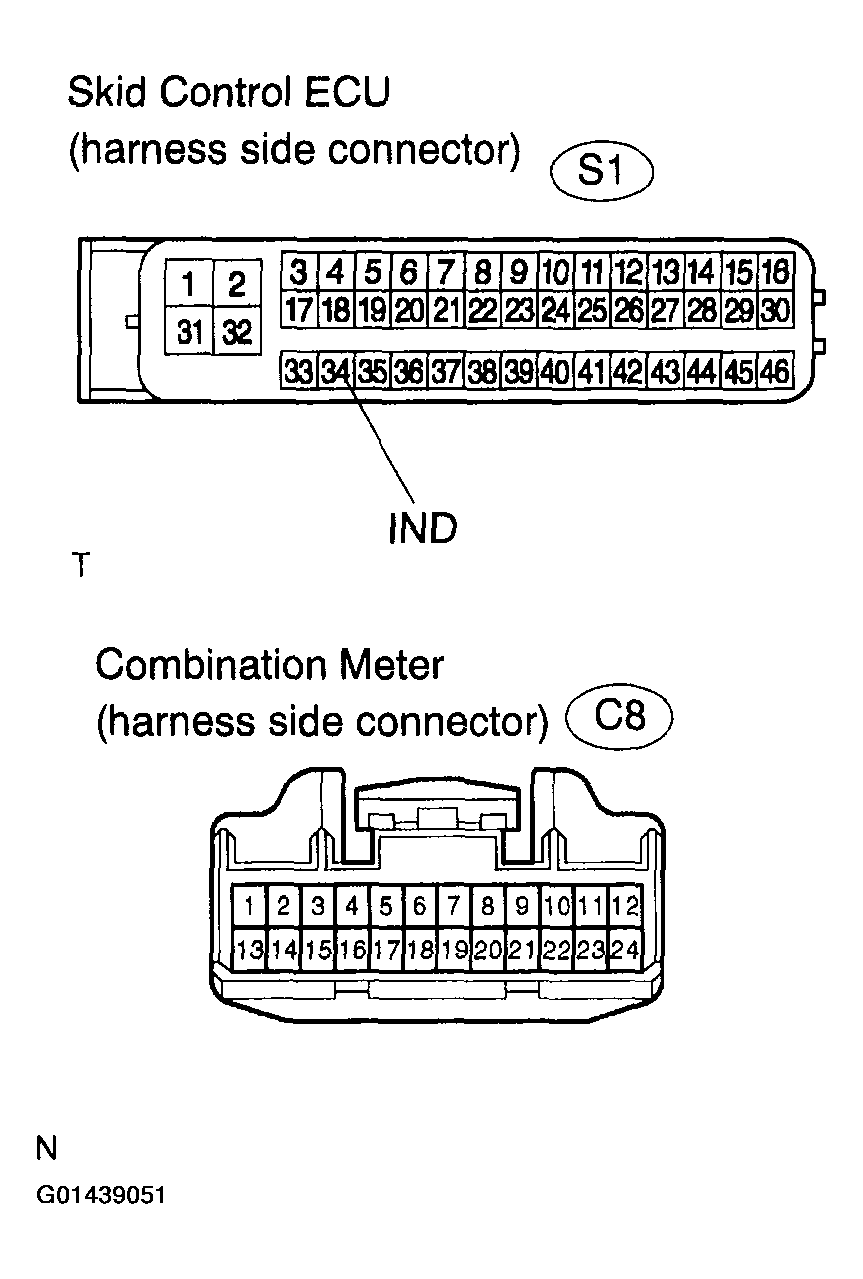

      Fig 3: Disconnecting Skid Control ECU & Combination Meter Connector
      G01439051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in Fig 4 .

      Standard

      Fig 4: Measuring Resistance Between IND & Combination Meter
      G01439049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in Fig 5 .

      Standard

      Fig 5: Measuring Resistance Between IND & Body Ground Specifications Chart
      G01439050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  3. INSPECT COMBINATION METER ASSEMBLY (SLIP INDICATOR LIGHT) (SEE  COMBINATION METER  )
    NOTE: When replacing the Brake Actuator assy, perform zero point calibration (see PRE-CHECK  ).

    NG: REPAIR OR REPLACE COMBINATION METER ASSEMBLY

    OK: REPLACE BRAKE ACTUATOR ASSY (SEE  REPLACEMENT  )
