Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Start the inspection from step 1 when using the hand-held tester and start from step  2 when not using the hand-held tester.

  1. PERFORM ACTIVE TEST BY HAND-HELD TESTER (SKID CONTROL BUZZER)
    1. Connect the hand-held tester to the DLC3.
    2. Start the engine.
    3. Select the item "VSC/BR WARN BUZ" in the ACTIVE TEST and operate the skid control buzzer on the hand-held tester.
      Fig 1: VSC/Brake Warning Buzzard Condition Chart
      G01439053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check that skid control buzzer sounds "ON" and "OFF" with the hand-held tester.

    Standard:

    1. The skid control buzzer sounds in accordance with operation of the hand-held tester.
    NOTE: When replacing the Brake Actuator assy, perform zero point calibration (see PRE-CHECK  ).

    NG: Go to step 2

    OK: REPLACE BRAKE ACTUATOR ASSY

  2. INSPECT SKID CONTROL BUZZER ASSY
    1. Disconnect the skid control buzzer connector V11.
    2. Apply a battery positive voltage to terminals 1 and 2 of the skid control buzzer connector, and check that the buzzer sounds.
      Fig 2: Applying Battery Voltage To Terminals 1 & 2
      G01439054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE SKID CONTROL BUZZER ASSY

    OK: Go to next step.

  3. CHECK HARNESS AND CONNECTOR (SKID CONTROL BUZZER - SKID CONTROL ECU)
    1. Disconnect the skid control buzzer connector V11 and the skid control ECU connector S1.

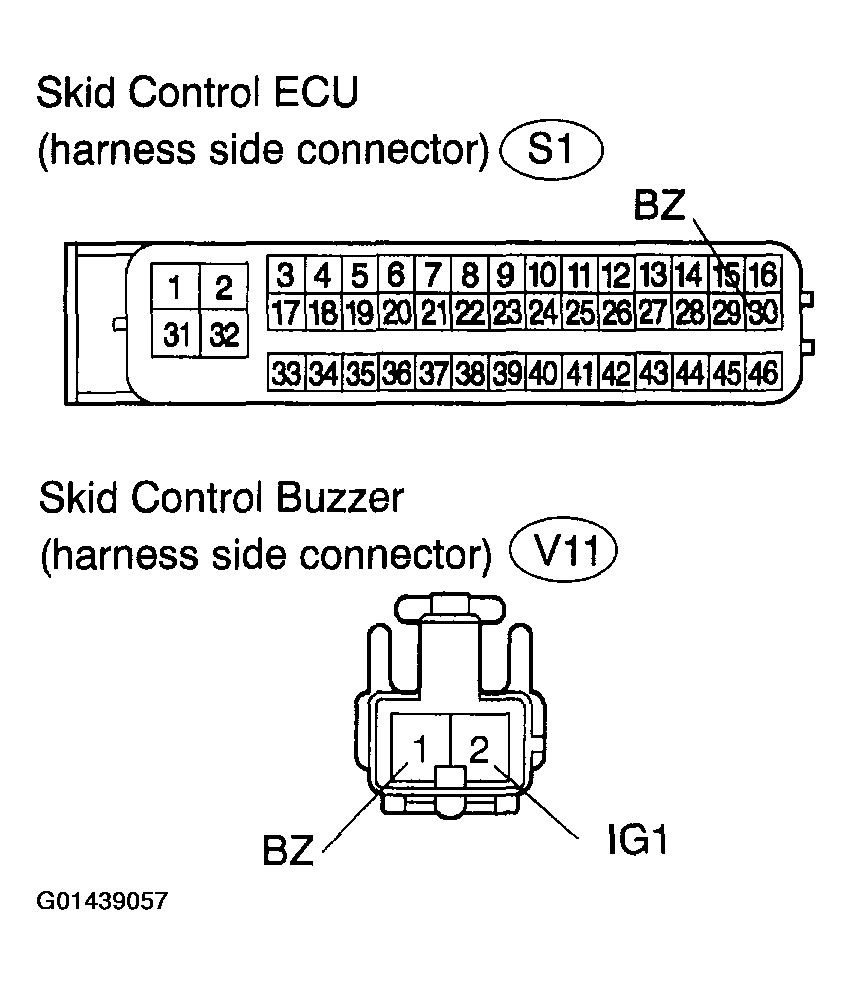

      Fig 3: Disconnecting Skid Control Buzzer & Skid Control ECU Connector
      G01439057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in Fig 4 .

      Standard

      Fig 4: Measuring Resistance Between Terminals BZ Specifications Chart
      G01439055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in Fig 5 .

      Standard

      Fig 5: Measuring Resistance Between BZ & Body Ground
      G01439056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE BRAKE ACTUATOR ASSY (SEE  REPLACEMENT  )

    NOTE: When replacing the Brake Actuator assy, perform zero point calibration (see PRE-CHECK  ).
